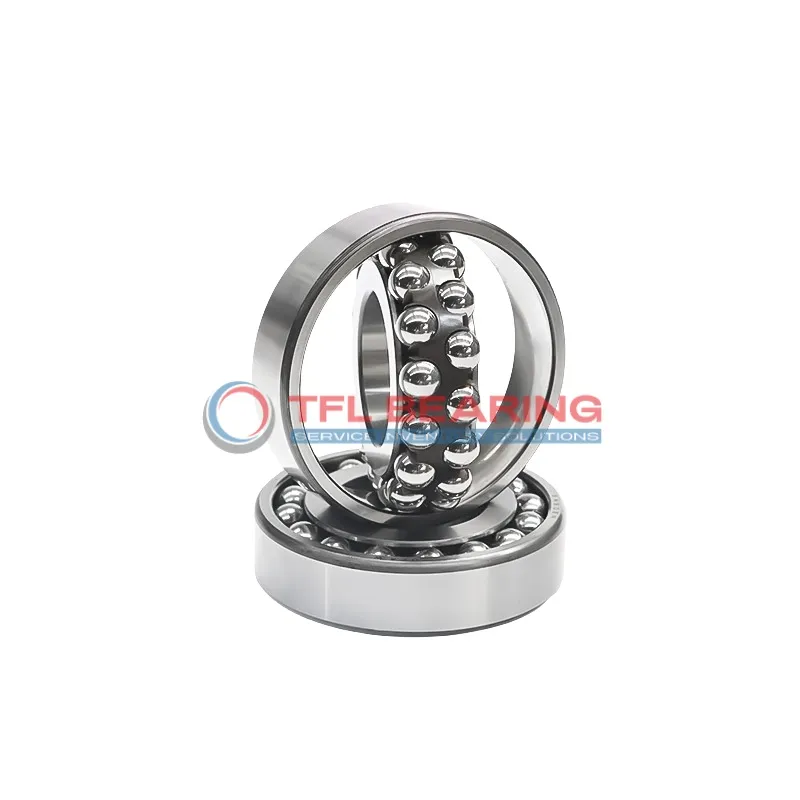

Self Aligning Ball Bearings 2209 K

Brand: TFL Bearing Interchangeable: SKF 2209 K 45 mm × 85 mm × 23 mm Metric Sealed
Part number: 2209 K
Self Aligning Ball Bearings 2209 K
In Stock
US$49.19 / piece
Reference price · volume pricing on request
Get a Quote WhatsApp
  • ISO 9001 quality system
  • RoHS & REACH compliant
  • Pre-shipment inspection
  • Lead time confirmed with your quote
Dimensions
Bore Dia45 mm
Bore Dia Tolerance-0.012mm to 0
Outer Dia85 mm
Outer Dia Tolerance-0.015mm to 0
Width23 mm
Width Tolerance-0.12mm to 0
External Diameter On Inner Ring52.9 mm
Internal Diameter On Outer Ring75.25 mm
Chamfer Dimension1.1 mm
Performance
Dynamic Radial Load5,152 lbf
Static Radial Load1,755 lbf
Temperature Range-30° to 110 °C
Max Speed5,300 rpm
Characteristics
System of MeasurementMetric
Bearing TypeBall
Bore TypeTaper 1:12
For Load DirectionRadial
ConstructionDouble Row
Seal TypeSealed
LubricationLubricated
Radial ClearanceCN
Weight0.53 kg
Material
Ring MaterialChrome Steel
Ball MaterialChrome Steel
Cage MaterialNylon
Compliance
RoHSCompliant
REACHCompliant
Dimension drawing · click to enlarge

Description

The 2209 K is a self-aligning ball bearing with a 45mm tapered bore and 85mm outer diameter, crafted from sturdy chrome steel. It manages radial loads up to 5152 lbf and runs smoothly at speeds up to 5300 RPM.

Its sealed design keeps dirt out and lubrication in, while the nylon cage reduces friction for quieter operation. The double-row construction helps it handle misalignment, making it forgiving in less-than-perfect setups.

This model works well in temperatures from -30°C to 110°C and is interchangeable with SKF bearings. Ideal for applications like conveyor systems or agricultural machinery where alignment might shift.

Weighing 0.53kg, it’s a robust choice for industrial use. Compliant with RoHS and REACH standards for safety and environmental care.

Features

Performance Features of 2209 K Bearing

2209 K Bearing is designed with a double-row construction, providing excellent radial load capacity up to 5152 lbf.
Its chrome steel rings and balls ensure durability and smooth operation in various applications.

The sealed design and nylon cage help maintain lubrication and reduce contamination.
This makes 2209 K Bearing suitable for environments where dust or moisture might be present.

With a maximum speed of 5,300 rpm, it balances performance and longevity.
The taper bore design ensures secure fitting, reducing the risk of slippage during operation.

2209 K Bearing operates efficiently within a temperature range of -30° to 110°C.
Its compact size (45 mm×85 mm×23 mm) makes it ideal for space-constrained applications.

Application

Common Applications of 2209 K Bearing
2209 K Bearing is widely used in industrial machinery, especially in conveyor systems and pumps, where its self-aligning feature compensates for minor misalignments. The double-row design ensures reliable performance under radial loads.

Where Is 2209 K Bearing Used?
In automotive applications, 2209 K Bearing fits well in wheel hubs and transmissions, thanks to its sealed design that keeps contaminants out. The taper bore also simplifies installation in rotating shafts.

Designed for Versatility: 2209 K Bearing
For agricultural equipment, 2209 K Bearing handles dusty conditions effectively, with its nylon cage reducing friction. The chrome steel construction ensures durability in demanding environments.

Industrial vs Agricultural: Uses of 2209 K Bearing
In industrial settings, 2209 K Bearing supports heavy machinery, while in agriculture, it excels in tractors and harvesters. Its lubricated design minimises maintenance needs.

Perfect Fit for Automation: 2209 K Bearing
2209 K Bearing is ideal for robotic arms and automated systems, where precision and low friction are key. The sealed type protects against dust and moisture in sensitive environments.
