Self Aligning Ball Bearings 2207C3

Self Aligning Ball Bearings 2207C3

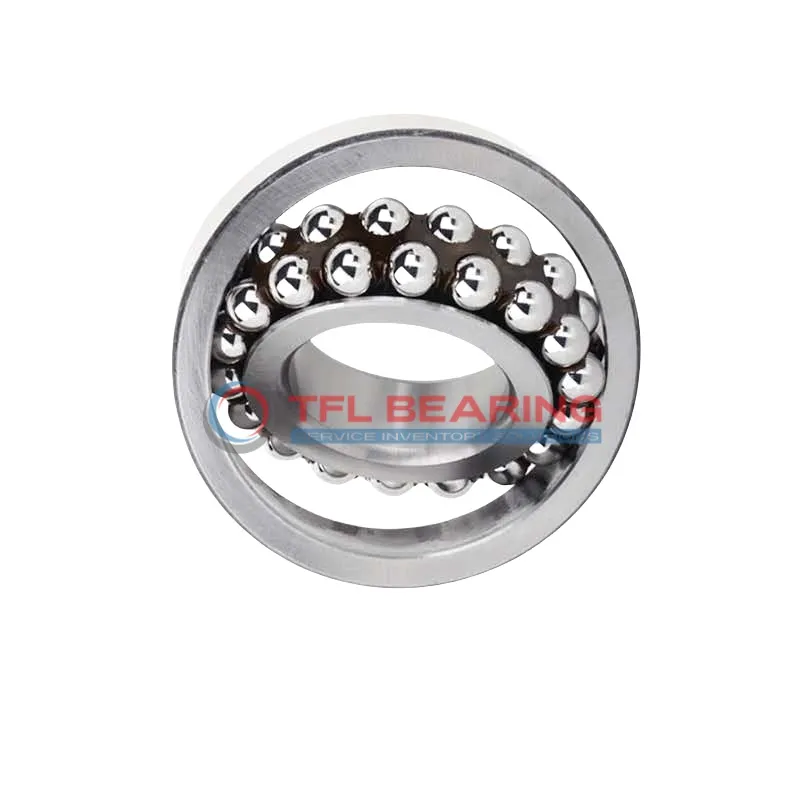

The 2207C3 is a self-aligning ball bearing with a 35mm bore and 72mm outer diameter, crafted from sturdy chrome steel. Its double-row design and sealed construction help it handle radial loads up to 4275 lbf while spinning smoothly at 6300 RPM.

The nylon cage reduces friction and noise, making it a quiet performer. Pre-lubricated and with a C3 radial clearance, it adapts well to slight misalignments in machinery.

This bearing suits applications like conveyor systems or electric motors where alignment flexibility is key. It’s interchangeable with SKF models for easy replacements.

Weighing 0.41kg, it’s durable yet lightweight. Compliant with RoHS and REACH standards, it operates reliably between -30°C and 110°C.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 2207C3
  • Brand TFL & OEM
  • Interchangeable SKF
  • Bore Dia 35 mm
  • Bore Dia Tolerance -0.012mm to 0
  • Outer Dia 72 mm
  • Outer Dia Tolerance -0.013mm to 0
  • Width 23 mm
  • Width Tolerance -0.12mm to 0
  • External Diameter On Inner Ring 42.7 mm
  • Internal Diameter On Outer Ring 62.69 mm
  • Chamfer Dimension 1.1 mm
  • System of Measurement Metric
  • Bearing Type Ball
  • Bore Type Cylindrical
  • For Load Direction Radial
  • Construction Double Row
  • Seal Type Sealed
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Nylon
  • Dynamic Radial Load 4275 lbf
  • Static Radial Load 1350 lbf
  • Lubrication Lubricated
  • Temperature Range -30° to 110 °C
  • Radial Clearance C3
  • RoHS Compliant
  • REACH Compliant
  • Max Speed 6300 rpm
  • Weight 0.41 kg
  • Price（$） 40.42
Self Aligning Ball Bearings 2207C3 dimension drawing
Download DWG Download PDF

Features

How Does 2207C3 Bearing Reduce Friction?

2207C3 Bearing features a double-row design with chrome steel rings and balls, ensuring smooth radial load distribution.
The nylon cage minimises friction, contributing to quieter operation and longer service life.

With a dynamic radial load capacity of 4275 lbf, it handles demanding applications efficiently.
Its sealed construction keeps lubrication intact, reducing maintenance needs.

The C3 radial clearance allows for thermal expansion, making it suitable for varied temperature conditions.
Operating up to 6,300 rpm, it balances speed and durability in industrial settings.

Application

Industrial Uses of 2207C3 Bearing
2207C3 Bearing is commonly used in conveyor systems, where its self-aligning feature compensates for minor misalignments, ensuring smooth operation. The sealed design keeps contaminants out, making it suitable for dusty environments.

In automotive applications, 2207C3 Bearing fits well in wheel hubs and transmission systems, handling radial loads effectively. Its nylon cage reduces friction, contributing to quieter performance.

For automation equipment like robotic arms, 2207C3 Bearing offers reliable movement with its double-row construction. The C3 radial clearance allows for thermal expansion in high-speed scenarios.

Where Is 2207C3 Bearing Used?
You’ll find 2207C3 Bearing in industrial fans, where its ability to handle misalignment prolongs service life. The lubricated design ensures consistent performance even under continuous operation.

In household appliances like washing machines, 2207C3 Bearing provides quiet and efficient rotation. Its chrome steel construction resists wear, making it a durable choice for daily use.
