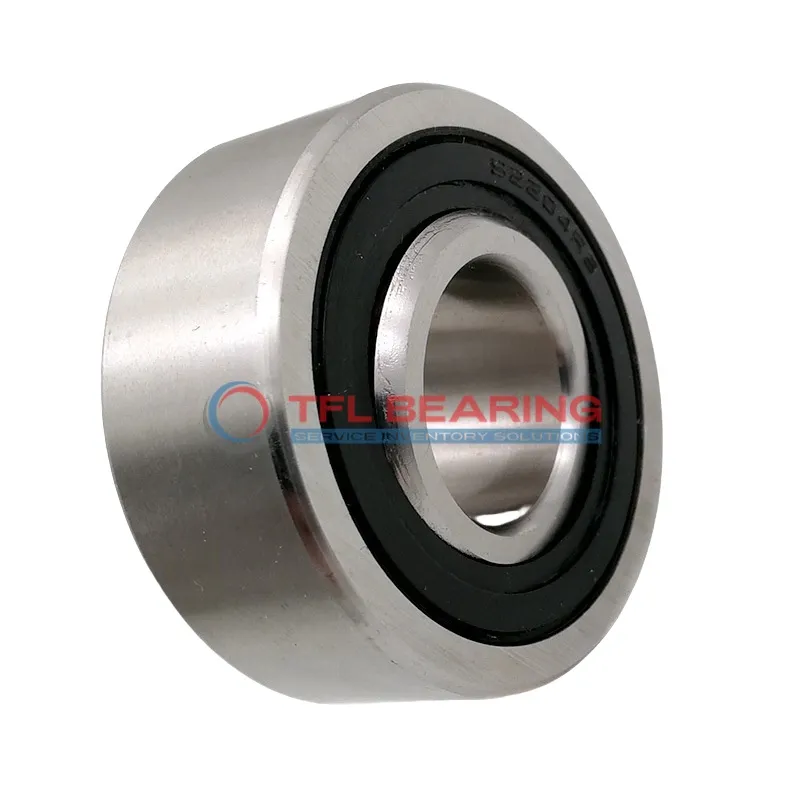

Self Aligning Ball Bearings 2206 E-2RS1TN9/C3

Self Aligning Ball Bearings 2206 E-2RS1TN9/C3

The 2206 E-2RS1TN9/C3 is a self-aligning ball bearing with a 30mm bore and 62mm outer diameter, crafted from sturdy chrome steel. It manages radial loads up to 3510 lbf and operates smoothly at speeds up to 7500 RPM.

Its double-row design and sealed construction help reduce friction and keep dirt out, while the nylon cage ensures quiet performance. The bearing comes pre-lubricated for easy installation.

This model is compatible with SKF bearings, making it a practical choice for replacements. Suitable for applications like conveyor systems or electric motors where misalignment might occur.

Weighing 0.26kg, it’s a compact yet durable option. Compliant with RoHS and REACH standards for safe use in temperatures from -30°C to 110°C.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 2206 E-2RS1TN9/C3
  • Brand TFL & OEM
  • Interchangeable SKF
  • Bore Dia 30 mm
  • Bore Dia Tolerance -0.01mm to 0
  • Outer Dia 62 mm
  • Outer Dia Tolerance -0.013mm to 0
  • Width 20 mm
  • Width Tolerance -0.12mm to 0
  • External Diameter On Inner Ring 36.7 mm
  • Internal Diameter On Outer Ring 54.06 mm
  • Chamfer Dimension 1 mm
  • System of Measurement Metric
  • Bearing Type Ball
  • Bore Type Cylindrical
  • For Load Direction Radial
  • Construction Double Row
  • Seal Type Sealed
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Nylon
  • Dynamic Radial Load 3510 lbf
  • Static Radial Load 1046 lbf
  • Lubrication Lubricated
  • Temperature Range -30° to 110 °C
  • Radial Clearance C3
  • RoHS Compliant
  • REACH Compliant
  • Max Speed 7500 rpm
  • Weight 0.26 kg
  • Price（$） 63.57
Self Aligning Ball Bearings 2206 E-2RS1TN9/C3 dimension drawing
Download DWG Download PDF

Features

How Does 2206 E-2RS1TN9/C3 Bearing Reduce Friction?

2206 E-2RS1TN9/C3 Bearing features a double-row design with chrome steel rings and balls, ensuring smooth radial load distribution.
The nylon cage minimises friction, enhancing efficiency and reducing wear during operation.
With a dynamic radial load capacity of 3510 lbf, it handles demanding applications reliably.
Its sealed design keeps lubrication intact, maintaining performance even in dusty environments.

Application

Industrial Uses of 2206 E-2RS1TN9/C3 Bearing
2206 E-2RS1TN9/C3 Bearing is commonly used in conveyor systems, where its self-aligning feature compensates for minor misalignments.
The sealed design keeps contaminants out, ensuring long service life in dusty environments.

Where Is 2206 E-2RS1TN9/C3 Bearing Used?
In automotive applications, 2206 E-2RS1TN9/C3 Bearing fits well in steering columns due to its radial load capacity.
The nylon cage reduces noise, making it suitable for passenger vehicles.

Built for Heavy-Duty Use: 2206 E-2RS1TN9/C3 Bearing
2206 E-2RS1TN9/C3 Bearing handles high loads in industrial fans, thanks to its double-row construction.
The C3 radial clearance allows for thermal expansion in high-temperature operations.

Automotive vs Aerospace: Applications of 2206 E-2RS1TN9/C3 Bearing
2206 E-2RS1TN9/C3 Bearing is versatile enough for both automotive transmissions and aerospace actuators.
Its chrome steel rings provide durability, while the lubricated design ensures smooth performance.

Perfect Fit for Automation: 2206 E-2RS1TN9/C3 Bearing
2206 E-2RS1TN9/C3 Bearing works well in robotic arms, where precision and reliability are key.
The metric dimensions make it easy to integrate into various automated systems.
