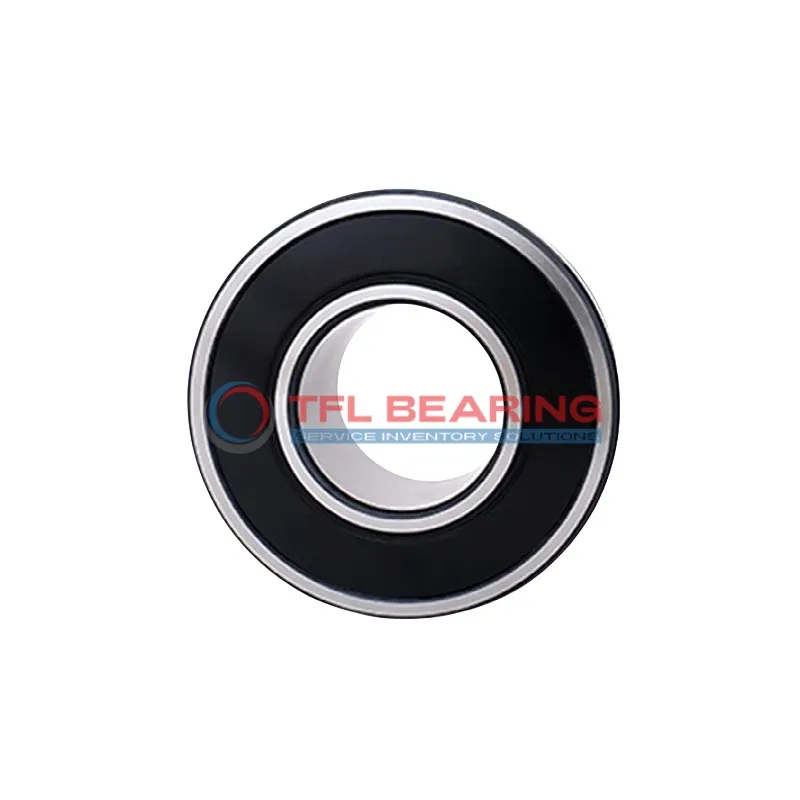

Self Aligning Ball Bearings 2201-2RSTNGC3

Brand: TFL Bearing Interchangeable: SKF 2201-2RSTNGC3 12 mm × 32 mm × 14 mm Metric Sealed
Part number: 2201-2RSTNGC3
Self Aligning Ball Bearings 2201-2RSTNGC3
In Stock
Price on request
Send your part number and quantity for a quote
Get a Quote WhatsApp
  • ISO 9001 quality system
  • RoHS & REACH compliant
  • Pre-shipment inspection
  • Lead time confirmed with your quote
Dimensions
Bore Dia12 mm
Bore Dia Tolerance-0.008mm to 0
Outer Dia32 mm
Outer Dia Tolerance-0.011mm to 0
Width14 mm
Width Tolerance-0.12mm to 0
External Diameter On Inner Ring15.5 mm
Internal Diameter On Outer Ring27.34 mm
Chamfer Dimension0.6 mm
Performance
Dynamic Radial Load1,404 lbf
Static Radial Load322 lbf
Temperature Range-30° to 110 °C
Max Speed16,000 rpm
Characteristics
System of MeasurementMetric
Bearing TypeBall
Bore TypeCylindrical
For Load DirectionRadial
ConstructionDouble Row
Seal TypeSealed
LubricationLubricated
Radial ClearanceC3
Weight0.053 kg
Material
Ring MaterialChrome Steel
Ball MaterialChrome Steel
Cage MaterialNylon
Compliance
RoHSCompliant
REACHCompliant
Dimension drawing · click to enlarge

Description

The 2201-2RSTNGC3 is a self-aligning ball bearing with a 12mm bore and 32mm outer diameter, crafted from sturdy chrome steel. It manages radial loads up to 1404 lbf and operates smoothly at speeds up to 16,000 RPM.

Its sealed design keeps lubrication intact, while the nylon cage reduces noise and wear. The bearing performs reliably in temperatures from -30°C to 110°C.

This model is interchangeable with SKF bearings, offering a practical replacement option. Perfect for applications like electric motors or conveyor systems where slight misalignments may occur.

Weighing just 0.053kg, it’s lightweight yet durable. Compliant with RoHS and REACH standards for safe and eco-friendly use.

Features

Why Choose 2201-2RSTNGC3 Bearing for Precision Tasks?

2201-2RSTNGC3 Bearing features a double-row design with chrome steel rings and balls, ensuring precise radial load handling.
Its dynamic radial load capacity of 1404 lbf makes it suitable for high-performance applications.

The sealed construction and nylon cage reduce friction and protect against contaminants.
With a maximum speed of 16,000 rpm, it delivers smooth operation in various conditions.

2201-2RSTNGC3 Bearing’s C3 radial clearance allows for thermal expansion, maintaining performance in temperature fluctuations.
Its compact size (12 mm×32 mm×14 mm) makes it ideal for space-constrained installations.

Application

Industrial Uses of 2201-2RSTNGC3 Bearing
2201-2RSTNGC3 Bearing is commonly used in conveyor systems, where its self-aligning feature helps accommodate minor misalignments. The sealed design keeps contaminants out, ensuring long service life in dusty environments.

In automotive applications, 2201-2RSTNGC3 Bearing works well in steering columns and auxiliary drives, thanks to its radial load capacity. The nylon cage reduces noise, making it suitable for passenger vehicles.

For robotics, 2201-2RSTNGC3 Bearing’s double-row construction provides stability in articulated arms. Its C3 clearance allows for thermal expansion during high-speed operations.

In household appliances like washing machines, 2201-2RSTNGC3 Bearing handles unbalanced loads smoothly. The lubricated design ensures quiet performance over time.

Medical devices benefit from 2201-2RSTNGC3 Bearing’s precision in low-torque applications. The chrome steel construction resists wear in frequent-use equipment like dental drills.
