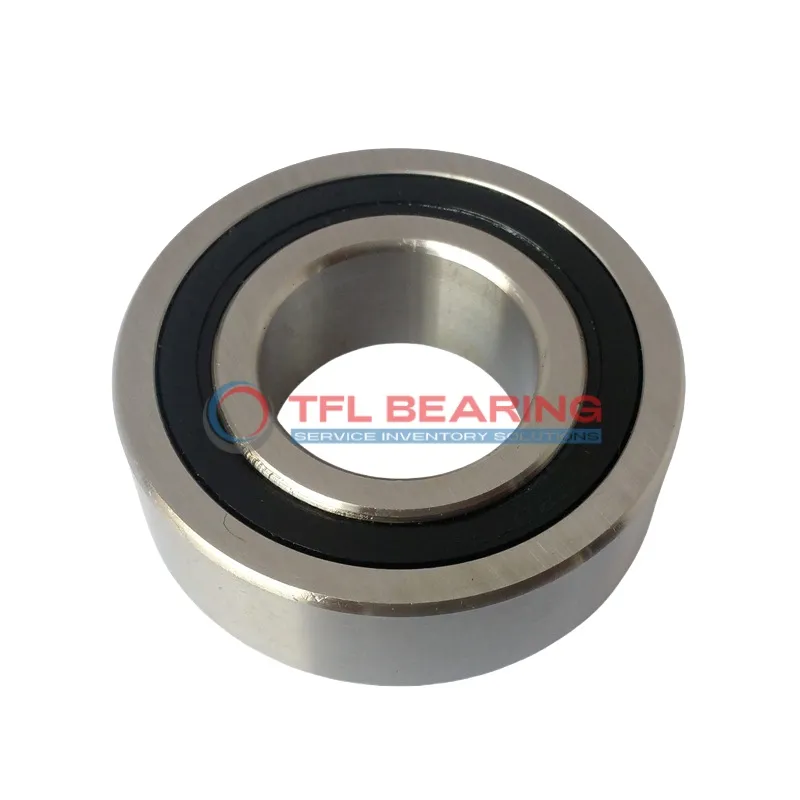

Self Aligning Ball Bearings 2200 E-2RS1TN9

Self Aligning Ball Bearings 2200 E-2RS1TN9

The 2200 E-2RS1TN9 is a self-aligning ball bearing with a 10mm bore and 30mm outer diameter, crafted from sturdy chrome steel. It handles radial loads up to 1244 lbf and operates smoothly at speeds up to 17000 RPM.

Its sealed design keeps lubrication in and contaminants out, while the nylon cage reduces friction for quieter performance. The bearing works reliably in temperatures from -30°C to 110°C.

This model is interchangeable with SKF bearings, making it a practical choice for replacements. Ideal for applications like electric motors or conveyor systems where misalignment might occur.

Weighing just 0.048kg, it’s lightweight yet durable. Compliant with RoHS and REACH standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 2200 E-2RS1TN9
  • Brand TFL & OEM
  • Interchangeable SKF
  • Bore Dia 10 mm
  • Bore Dia Tolerance -0.008mm to 0
  • Outer Dia 30 mm
  • Outer Dia Tolerance -0.009mm to 0
  • Width 14 mm
  • Width Tolerance -0.12mm to 0
  • External Diameter On Inner Ring 14.6 mm
  • Internal Diameter On Outer Ring 24.72 mm
  • Chamfer Dimension 0.6 mm
  • System of Measurement Metric
  • Bearing Type Ball
  • For Load Direction Radial
  • Construction Double Row
  • Seal Type Sealed
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Nylon
  • Dynamic Radial Load 8665 lbf
  • Static Radial Load 71890 lbf
  • Lubrication Lubricated
  • Temperature Range -30° to 110 °C
  • RoHS Compliant
  • REACH Compliant
  • Max Speed 17000 rpm
  • Weight 0.048 kg
  • Price（$） 29.7
Self Aligning Ball Bearings 2200 E-2RS1TN9 dimension drawing
Download DWG Download PDF

Features

How Does 2200 E-2RS1TN9 Bearing Reduce Friction?

2200 E-2RS1TN9 Bearing features a double-row design with chrome steel balls, ensuring smooth radial load distribution.
The sealed construction keeps contaminants out, maintaining consistent performance over time.

Its nylon cage minimises friction, allowing for quieter operation even at high speeds.
With a maximum speed of 17,000 rpm, it delivers reliable efficiency in various applications.

The pre-lubricated design reduces maintenance needs, making it a practical choice for long-term use.
2200 E-2RS1TN9 Bearing operates effectively in temperatures ranging from -30° to 110°C.

Application

Industrial Uses of 2200 E-2RS1TN9 Bearing
2200 E-2RS1TN9 Bearing is commonly used in conveyor systems, where its self-aligning feature compensates for minor misalignments. The sealed design helps keep contaminants out, extending the bearing’s lifespan in dusty environments.

In automotive applications, 2200 E-2RS1TN9 Bearing fits well in electric motors and gearboxes, providing smooth radial load support. Its nylon cage reduces noise, making it ideal for quieter vehicle operation.

For home appliances like washing machines, 2200 E-2RS1TN9 Bearing’s durability ensures reliable performance under constant use. The lubricated design also means less maintenance, which is handy for everyday devices.

In robotics, 2200 E-2RS1TN9 Bearing’s ability to handle misalignment is useful for robotic arms and joints. The chrome steel construction ensures it can withstand repetitive movements without wearing out quickly.

Medical devices like diagnostic equipment benefit from 2200 E-2RS1TN9 Bearing’s precision and sealed design. It helps maintain hygiene by preventing dust and debris from entering sensitive components.
