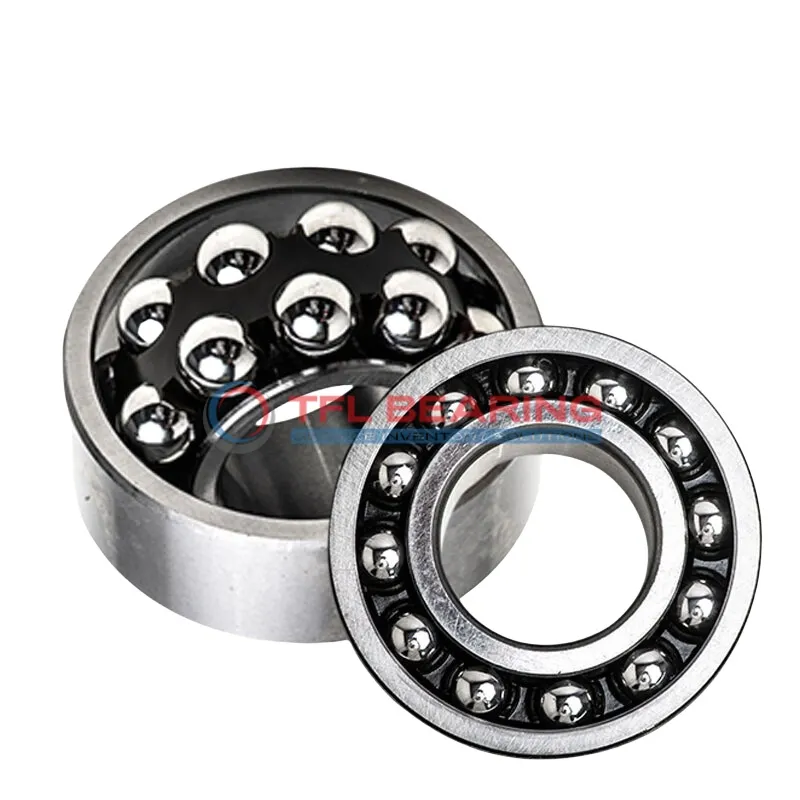

Self Aligning Ball Bearings 135-TVH

Self Aligning Ball Bearings 135-TVH

The 135-TVH is a compact self-aligning ball bearing, measuring just 5mm by 19mm by 6mm, crafted from durable chrome steel. It handles radial loads up to 565 lbf and spins smoothly at speeds up to 45,000 RPM.

Its double-row design and open seal make it versatile for various applications, while the nylon cage reduces friction for quieter operation. The bearing operates well in temperatures from -30°C to 110°C.

This model is interchangeable with SKF bearings, offering a reliable replacement option. Ideal for small machinery or devices where space is limited but performance is key.

Weighing only 0.009kg, it’s lightweight yet sturdy. Compliant with RoHS and REACH standards, it’s a safe choice for diverse industries.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 135-TVH
  • Brand TFL & OEM
  • Interchangeable SKF
  • Bore Dia 5 mm
  • Bore Dia Tolerance -0.008mm to 0
  • Outer Dia 19 mm
  • Outer Dia Tolerance -0.009mm to 0
  • Width 6 mm
  • Width Tolerance -0.12mm to 0
  • External Diameter On Inner Ring 10.3 mm
  • Internal Diameter On Outer Ring 15.4 mm
  • Chamfer Dimension 0.3 mm
  • System of Measurement Metric
  • Bearing Type Ball
  • Bore Type Cylindrical
  • For Load Direction Radial
  • Construction Double Row
  • Seal Type Open
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Nylon
  • Dynamic Radial Load 565 lbf
  • Static Radial Load 108 lbf
  • Lubrication Lubricated
  • Temperature Range -30° to 110 °C
  • Radial Clearance CN
  • RoHS Compliant
  • REACH Compliant
  • Max Speed 45000 rpm
  • Weight 0.009 kg
  • Price（$） 15.97
Self Aligning Ball Bearings 135-TVH dimension drawing
Download DWG Download PDF

Features

How Does 135-TVH Bearing Reduce Friction?

135-TVH Bearing features a double-row ball design with chrome steel rings and balls, ensuring smooth radial load distribution.
Its nylon cage minimises friction, allowing for quieter operation and reduced energy consumption.
The bearing’s lubrication enhances performance, even at high speeds up to 45,000 rpm.
With a compact size of 5 mm×19 mm×6 mm, it fits seamlessly into precision applications.

Application

Common Applications of 135-TVH Bearing
135-TVH Bearing is widely used in industrial equipment like conveyor systems and small electric motors, where its self-aligning feature compensates for minor misalignments. The double-row design ensures smooth radial load handling in compact spaces.

In automotive applications, 135-TVH Bearing fits well in components like alternators and small gearboxes, thanks to its lightweight nylon cage. Its high-speed capability makes it suitable for rotating parts that require consistent performance.

For consumer electronics, 135-TVH Bearing works efficiently in devices like cooling fans and printers, where low noise and durability are key. The chrome steel construction provides long-lasting reliability in everyday use.

Automation and robotics benefit from 135-TVH Bearing’s precision in small robotic arms and 3D printers. The open seal design allows for easy lubrication, maintaining performance over time.
