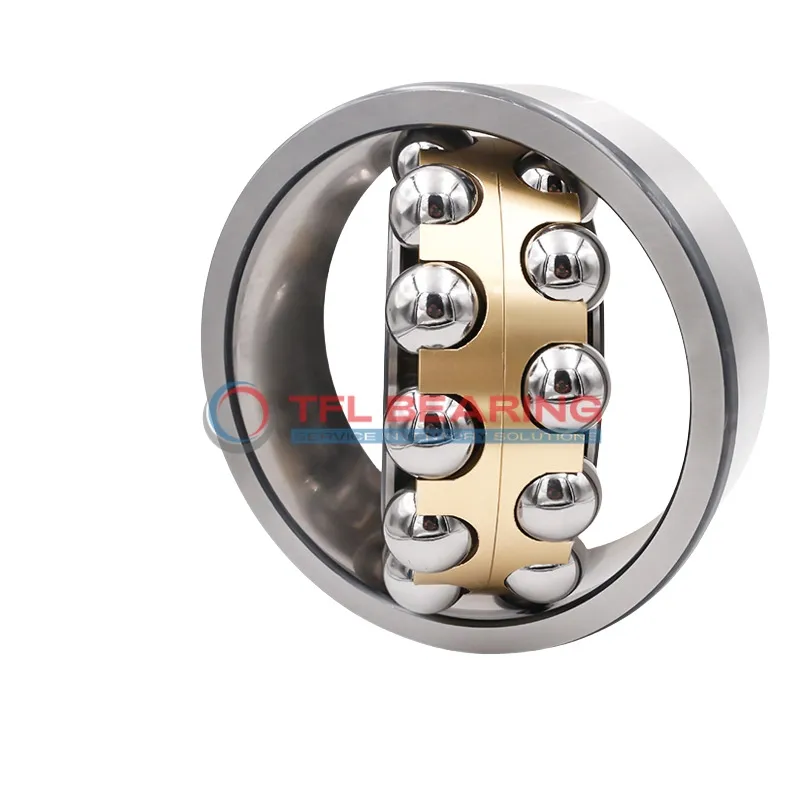

Self Aligning Ball Bearings 1321-KM

Brand: TFL Bearing Interchangeable: SKF 1321-KM 105 mm × 155 mm × 46 mm Metric Open
Part number: 1321-KM
Self Aligning Ball Bearings 1321-KM
In Stock
US$749.26 / piece
Reference price · volume pricing on request
Get a Quote WhatsApp
  • ISO 9001 quality system
  • RoHS & REACH compliant
  • Pre-shipment inspection
  • Lead time confirmed with your quote
Dimensions
Bore Dia105 mm
Bore Dia Tolerance-0.02mm to 0
Outer Dia155 mm
Outer Dia Tolerance-0.025mm to 0
Width46 mm
Width Tolerance+0.025mm to -0.3mm
Chamfer Dimension1 mm
Performance
Dynamic Radial Load8,665 lbf
Static Radial Load71,890 lbf
Temperature Range-30° to 110 °C
Max Speed2,150 rpm
Characteristics
System of MeasurementMetric
Bearing TypeBall
Bore TypeTaper 1:12
For Load DirectionThrust
Seal TypeOpen
LubricationRequired
Radial ClearanceCN
Weight2.61 kg
Material
Ring Material52100 Chrome Steel
Ball Material52100 Chrome Steel
Cage MaterialBrass
Compliance
RoHSCompliant
REACHCompliant
Dimension drawing · click to enlarge

Description

The 1321-KM is a self-aligning ball bearing with a 105mm tapered bore and 155mm outer diameter, crafted from durable 52100 chrome steel. Its brass cage ensures smooth operation, even at speeds up to 2150 RPM.

The open design allows for easy lubrication, while the tapered bore provides a secure fit on shafts. It operates efficiently in temperatures ranging from -30°C to 110°C.

This bearing is interchangeable with SKF models, making it a practical choice for replacements. Ideal for machinery where misalignment or thrust loads are a concern, such as conveyor systems or agricultural equipment.

Weighing 2.61kg, it’s sturdy yet manageable for its size. Compliant with RoHS and REACH standards, it’s safe for various industrial applications.

Features

How Does 1321-KM Bearing Ensure Smooth Operation?

1321-KM Bearing features a taper bore design (1:12 ratio), allowing for precise alignment and reducing stress during operation.
Its chrome steel rings and balls provide durability, while the brass cage ensures smooth movement under thrust loads.

With a maximum speed of 2,150 rpm, 1321-KM Bearing maintains stable performance in various applications.
The open seal design simplifies lubrication, ensuring consistent operation within a temperature range of -30° to 110°C.

Application

Industrial Uses of 1321-KM Bearing
1321-KM Bearing is commonly used in heavy machinery, such as conveyor systems and industrial mixers, where its self-aligning feature compensates for minor misalignments. The brass cage ensures smooth operation even under continuous use.

What Makes 1321-KM Bearing a Preferred Choice?
With its tapered bore design, 1321-KM Bearing fits securely in applications like agricultural equipment, reducing slippage and wear. The chrome steel construction provides excellent durability in demanding environments.

Built for Heavy-Duty Use: 1321-KM Bearing
1321-KM Bearing excels in construction equipment, where its open design allows for easy lubrication and maintenance. The metric sizing ensures compatibility with a variety of machinery across different regions.

Automotive vs Aerospace: Applications of 1321-KM Bearing
In automotive systems, 1321-KM Bearing supports components like gearboxes, handling thrust loads effectively. Its temperature range also makes it suitable for aerospace applications where reliability is key.

Perfect Fit for Automation: 1321-KM Bearing
1321-KM Bearing is ideal for robotic arms and automated production lines, offering precise movement and low friction. The brass cage reduces vibration, enhancing performance in high-speed operations.
