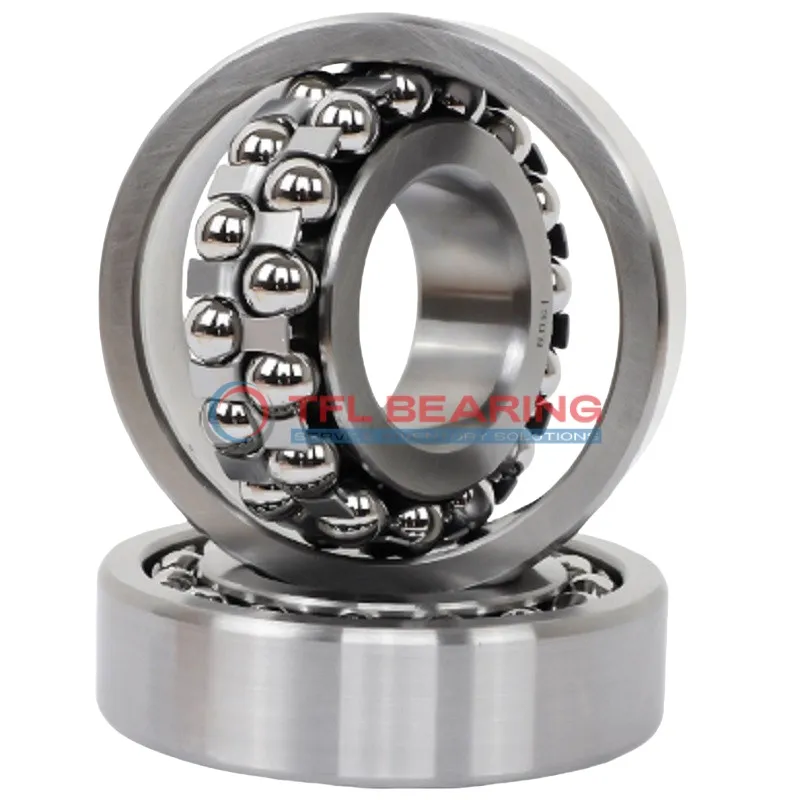

Self Aligning Ball Bearings 1320KJC3

Self Aligning Ball Bearings 1320KJC3

The 1320KJC3 is a self-aligning ball bearing with a 100mm tapered bore and 215mm outer diameter, built to handle heavy radial loads. Its double-row design and chrome steel construction offer durability, supporting up to 32175 lbf dynamically.

With a C3 radial clearance, it accommodates slight misalignments, making it suitable for applications where shaft deflection occurs. The open seal type allows for easy lubrication and maintenance.

This bearing operates smoothly at speeds up to 4000 RPM and works in temperatures from -30°C to 110°C. It’s interchangeable with SKF models, ideal for industrial machinery like conveyors or fans.

Weighing 8.3kg, it’s robust yet manageable for its size. Compliant with RoHS and REACH standards, ensuring safe and reliable performance.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 1320KJC3
  • Brand TFL & OEM
  • Interchangeable SKF
  • Bore Dia 100 mm
  • Bore Dia Tolerance -0.02mm to 0
  • Outer Dia 215 mm
  • Outer Dia Tolerance -0.03mm to 0
  • Width 47 mm
  • Width Tolerance -0.2mm to 0
  • External Diameter On Inner Ring 136 mm
  • Internal Diameter On Outer Ring 181.9 mm
  • Chamfer Dimension 3 mm
  • System of Measurement Metric
  • Bearing Type Ball
  • Bore Type Taper 1:12
  • For Load Direction Radial
  • Construction Double Row
  • Seal Type Open
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 32175 lbf
  • Static Radial Load 12825 lbf
  • Lubrication Lubricated
  • Temperature Range -30° to 110 °C
  • Radial Clearance C3
  • RoHS Compliant
  • REACH Compliant
  • Max Speed 4000 rpm
  • Weight 8.3 kg
  • Price（$） 709.69
Self Aligning Ball Bearings 1320KJC3 dimension drawing
Download DWG Download PDF

Features

Why Choose 1320KJC3 Bearing for Precision Tasks?

1320KJC3 Bearing features a double-row design with chrome steel rings and balls, ensuring high radial load capacity.
Its dynamic radial load reaches 32175 lbf, making it suitable for heavy-duty applications.

The tapered bore design of 1320KJC3 Bearing allows for precise alignment, reducing stress and wear.
With a maximum speed of 4,000 rpm, it maintains smooth operation under demanding conditions.

1320KJC3 Bearing’s C3 radial clearance provides flexibility in high-temperature environments.
Its steel cage ensures stability, enhancing the bearing’s overall durability and performance.

Application

Key Fields for 1320KJC3 Bearing
1320KJC3 Bearing is commonly used in heavy machinery, such as mining equipment and large conveyor systems, where its self-aligning feature compensates for shaft misalignment. The double-row design ensures reliable performance under substantial radial loads.

In the paper and pulp industry, 1320KJC3 Bearing handles the demanding conditions of rollers and drying cylinders, thanks to its robust chrome steel construction. The C3 radial clearance allows for thermal expansion in high-temperature environments.

For agricultural machinery, 1320KJC3 Bearing supports components like harvesters and tractors, where its tapered bore ensures a secure fit. The open seal design simplifies lubrication, extending service life in dusty conditions.

Automotive manufacturing lines benefit from 1320KJC3 Bearing in assembly robots, where precision and durability are key. Its metric sizing makes it compatible with standard European machinery components.

In wind turbine applications, 1320KJC3 Bearing accommodates slight misalignments in rotor shafts, reducing wear. The steel cage provides added strength for long-term reliability in harsh weather conditions.
