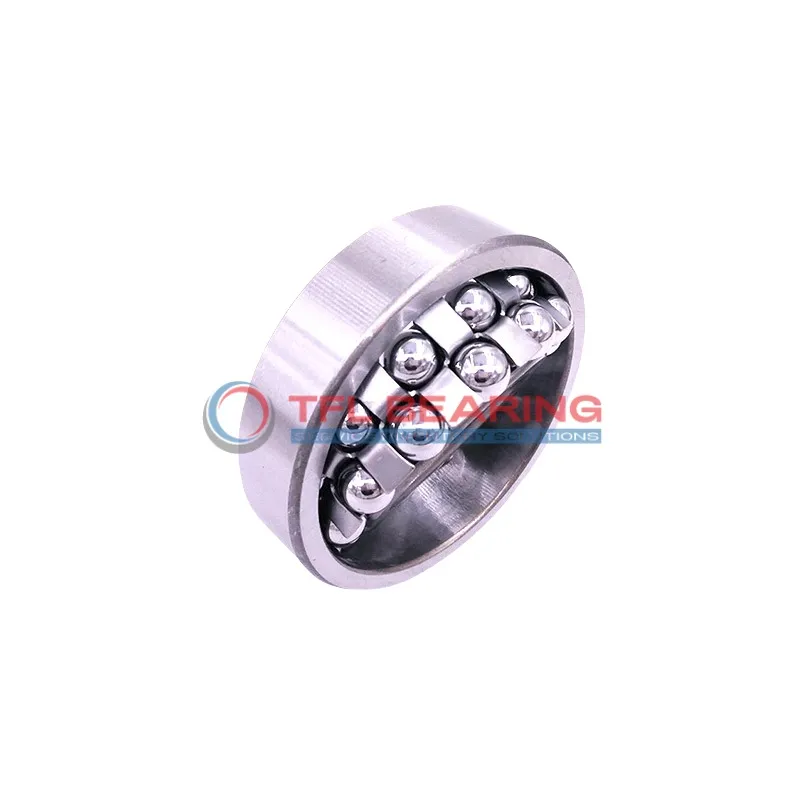

Self Aligning Ball Bearings 1320-K C/3

Self Aligning Ball Bearings 1320-K C/3

The 1320-K C/3 is a self-aligning ball bearing with a 100mm tapered bore and 215mm outer diameter, crafted from sturdy chrome steel. It manages radial loads up to 32175 lbf and operates smoothly at speeds up to 4000 RPM.

Its double-row design and open seal allow for easy lubrication and alignment adjustments, while the stainless steel cage ensures durability. The bearing performs reliably in temperatures ranging from -30°C to 110°C.

This model is interchangeable with SKF bearings, making it a practical choice for replacements. It’s well-suited for heavy-duty applications like conveyor systems or industrial fans where misalignment might occur.

Weighing 8.3kg, it’s robust yet manageable for its size. Compliant with RoHS and REACH standards for safe and eco-friendly use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 1320-K C/3
  • Brand TFL & OEM
  • Interchangeable SKF
  • Bore Dia 100 mm
  • Bore Dia Tolerance -0.02mm to 0
  • Outer Dia 215 mm
  • Outer Dia Tolerance -0.03mm to 0
  • Width 47 mm
  • Width Tolerance -0.2mm to 0
  • External Diameter On Inner Ring 136 mm
  • Internal Diameter On Outer Ring 181.9 mm
  • Chamfer Dimension 3 mm
  • System of Measurement Metric
  • Bearing Type Ball
  • Bore Type Taper 1:12
  • For Load Direction Radial
  • Construction Double Row
  • Seal Type Open
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Stainless Steel
  • Dynamic Radial Load 32175 lbf
  • Static Radial Load 12825 lbf
  • Lubrication Lubricated
  • Temperature Range -30° to 110 °C
  • Radial Clearance CN
  • RoHS Compliant
  • REACH Compliant
  • Max Speed 4000 rpm
  • Weight 8.3 kg
  • Price（$） 531.03
Self Aligning Ball Bearings 1320-K C/3 dimension drawing
Download DWG Download PDF

Features

Why Choose 1320-K C/3 Bearing for Precision Tasks?

1320-K C/3 Bearing features a double-row design with chrome steel rings and balls, ensuring high radial load capacity.
Its dynamic radial load rating of 32175 lbf makes it suitable for heavy-duty applications.

The tapered bore design allows for easy and secure mounting, reducing installation time.
With a maximum speed of 4,000 rpm, it offers reliable performance in various industrial settings.

1320-K C/3 Bearing operates efficiently within a temperature range of -30° to 110°C.
Its stainless steel cage maintains ball alignment, enhancing durability and reducing maintenance needs.

The open seal design allows for easy lubrication, ensuring smooth operation over time.
Weighing 8.3 kg, it balances strength and practicality for demanding environments.

Application

Industrial Uses of 1320-K C/3 Bearing
1320-K C/3 Bearing is commonly used in heavy machinery like conveyors and crushers, where its self-aligning feature compensates for shaft misalignment. The double-row design provides added stability, making it suitable for high radial load applications.

In the automotive sector, 1320-K C/3 Bearing fits well in truck wheel hubs and transmissions, handling rough road conditions with ease. Its tapered bore ensures a secure fit, reducing the risk of slippage during operation.

For industrial fans and blowers, 1320-K C/3 Bearing’s chrome steel construction offers durability in high-speed rotations. The open seal design allows for easy lubrication, extending its service life in demanding environments.

Automation systems benefit from 1320-K C/3 Bearing’s ability to maintain precision under varying loads. Its stainless steel cage resists wear, ensuring consistent performance in robotic arms and assembly lines.

In construction equipment, 1320-K C/3 Bearing supports heavy loads in cranes and excavators. The metric sizing makes it compatible with a wide range of machinery, simplifying maintenance and replacements.
