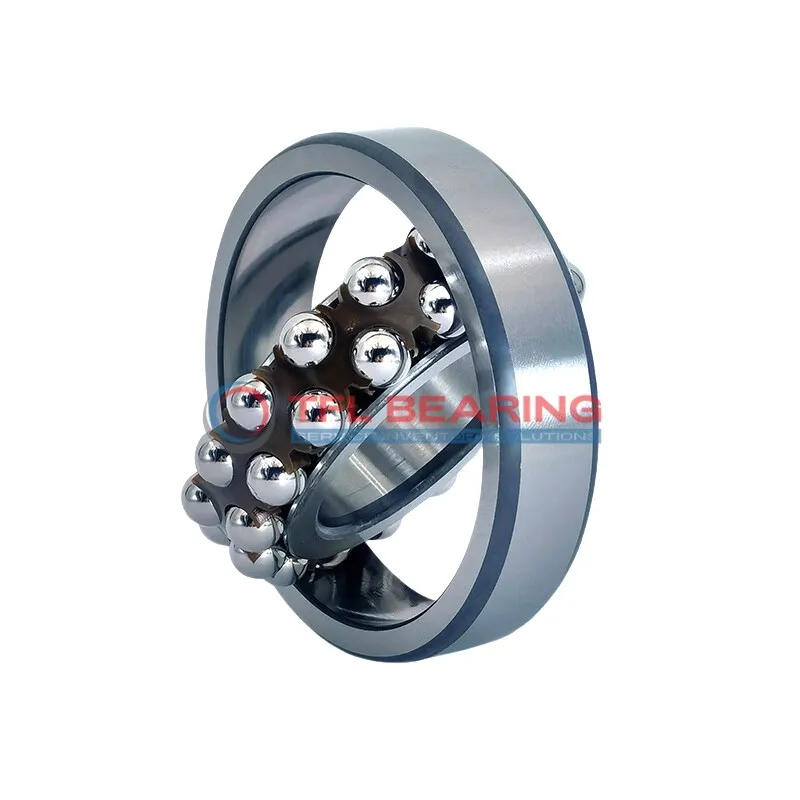

Self Aligning Ball Bearings 1316 K/C3

Self Aligning Ball Bearings 1316 K/C3

The 1316 K/C3 is a self-aligning ball bearing with an 80mm tapered bore and 170mm outer diameter, crafted from sturdy chrome steel. It manages radial loads up to 19890 lbf and runs smoothly at speeds up to 5300 RPM.

Its double-row design and open seal make it adaptable to slight misalignments, while the nylon cage reduces friction for quieter operation. The bearing operates well in temperatures from -30°C to 110°C.

This model is interchangeable with SKF bearings, offering a reliable replacement option. Perfect for machinery with radial loads, such as conveyor systems or agricultural equipment.

Weighing 4.05kg, it’s robust yet manageable for its size. Compliant with RoHS and REACH standards, ensuring safe and eco-friendly use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 1316 K/C3
  • Brand TFL & OEM
  • Interchangeable SKF
  • Bore Dia 80 mm
  • Bore Dia Tolerance -0.015mm to 0
  • Outer Dia 170 mm
  • Outer Dia Tolerance -0.025mm to 0
  • Width 39 mm
  • Width Tolerance -0.15mm to 0
  • External Diameter On Inner Ring 110 mm
  • Internal Diameter On Outer Ring 144.4 mm
  • Chamfer Dimension 2.1 mm
  • System of Measurement Metric
  • Bearing Type Ball
  • Bore Type Taper 1:12
  • For Load Direction Radial
  • Construction Double Row
  • Seal Type Open
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Nylon
  • Dynamic Radial Load 19890 lbf
  • Static Radial Load 7538 lbf
  • Lubrication Lubricated
  • Temperature Range -30° to 110 °C
  • Radial Clearance C3
  • RoHS Compliant
  • REACH Compliant
  • Max Speed 5300 rpm
  • Weight 4.05 kg
  • Price（$） 229.06
Self Aligning Ball Bearings 1316 K/C3 dimension drawing
Download DWG Download PDF

Features

How Is 1316 K/C3 Bearing Engineered for Reliability?

1316 K/C3 Bearing features a double-row design with chrome steel rings and balls, ensuring strong radial load capacity.
Its dynamic radial load reaches 19890 lbf, making it suitable for heavy-duty applications.
The nylon cage helps reduce friction and noise, enhancing operational smoothness.
With a maximum speed of 5,300 rpm and C3 radial clearance, it offers reliable performance in varied conditions.

Application

Industrial Uses of 1316 K/C3 Bearing
1316 K/C3 Bearing is commonly used in heavy machinery, such as conveyor systems and industrial fans, where its self-aligning feature helps compensate for shaft misalignment. The double-row design provides reliable radial load support, making it suitable for demanding environments.

What Makes 1316 K/C3 Bearing a Preferred Choice?
In automotive applications, 1316 K/C3 Bearing fits well in gearboxes and drivetrains, offering smooth operation even under high radial loads. Its chrome steel construction ensures durability, while the nylon cage reduces friction and noise.

Perfect Fit for Automation: 1316 K/C3 Bearing
For automated production lines, 1316 K/C3 Bearing ensures precise movement in robotic arms and assembly equipment. The C3 radial clearance allows for thermal expansion, maintaining performance in varying temperatures.

Medical vs Industrial: Where 1316 K/C3 Bearing Excels
While 1316 K/C3 Bearing is robust enough for industrial pumps, its precision also suits medical imaging devices. The lubricated design ensures quiet operation, crucial for sensitive environments.

Light-Duty vs Heavy-Duty: Best Uses for 1316 K/C3 Bearing
1316 K/C3 Bearing handles both light-duty applications like small motors and heavy-duty tasks in construction equipment. Its tapered bore ensures a secure fit, preventing slippage during operation.
