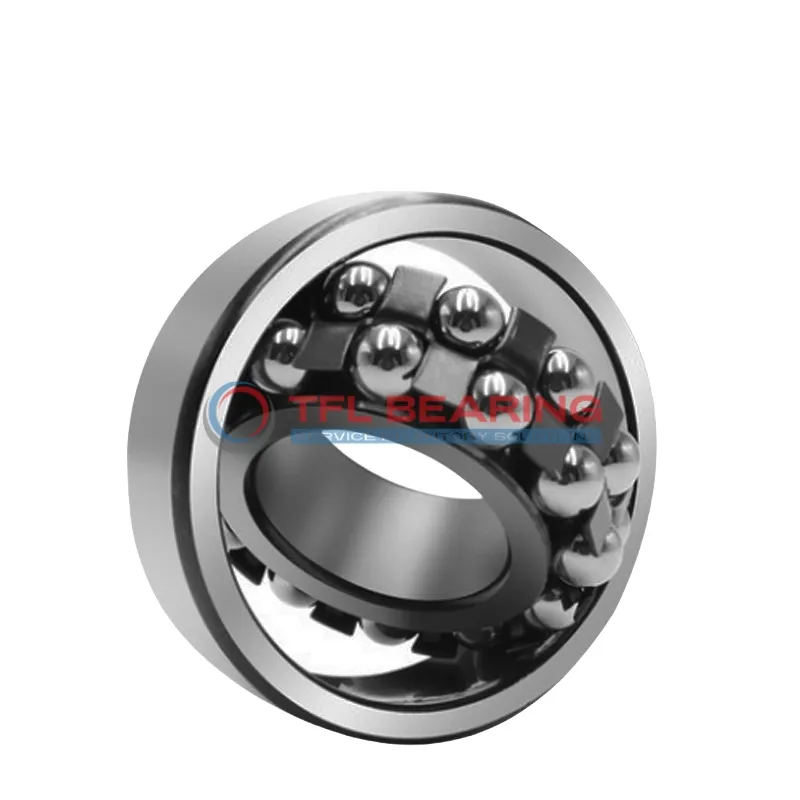

Self Aligning Ball Bearings 1315KJC3

Self Aligning Ball Bearings 1315KJC3

The 1315KJC3 is a self-aligning ball bearing with a 75mm tapered bore and 160mm outer diameter, crafted from sturdy chrome steel. It manages radial loads up to 17842 lbf and operates smoothly at speeds up to 5600 RPM.

Its double-row design and open construction allow for easy lubrication and alignment adjustments, while the steel cage ensures durability. The bearing performs reliably in temperatures ranging from -30°C to 110°C.

This model is interchangeable with SKF bearings, making it a practical choice for replacements. Suitable for applications like conveyor systems or agricultural machinery where misalignment might occur.

Weighing 3.55kg, it’s robust yet manageable for its size. Compliant with RoHS and REACH standards for safe and eco-friendly use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 1315KJC3
  • Brand TFL & OEM
  • Interchangeable SKF
  • Bore Dia 75 mm
  • Bore Dia Tolerance -0.015mm to 0
  • Outer Dia 160 mm
  • Outer Dia Tolerance -0.025mm to 0
  • Width 37 mm
  • Width Tolerance -0.15mm to 0
  • External Diameter On Inner Ring 104.8 mm
  • Internal Diameter On Outer Ring 135.2 mm
  • Chamfer Dimension 2.1 mm
  • System of Measurement Metric
  • Bearing Type Ball
  • Bore Type Taper 1:12
  • For Load Direction Radial
  • Construction Double Row
  • Seal Type Open
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 17842 lbf
  • Static Radial Load 6750 lbf
  • Lubrication Lubricated
  • Temperature Range -30° to 110 °C
  • Radial Clearance C3
  • RoHS Compliant
  • REACH Compliant
  • Max Speed 5600 rpm
  • Weight 3.55 kg
  • Price（$） 205.97
Self Aligning Ball Bearings 1315KJC3 dimension drawing
Download DWG Download PDF

Features

How Is 1315KJC3 Bearing Engineered for Reliability?

1315KJC3 Bearing features a double-row design with chrome steel rings and balls, ensuring strong radial load capacity.
Its dynamic radial load reaches 17842 lbf, making it suitable for demanding industrial applications.
The tapered bore design allows for secure mounting, reducing slippage and improving performance.
With a maximum speed of 5,600 rpm, it offers a balance of durability and efficiency.

Application

Industrial Uses of 1315KJC3 Bearing
1315KJC3 Bearing is commonly used in heavy machinery like conveyor systems and industrial fans, where its self-aligning feature compensates for minor misalignments. The double-row design ensures stable performance under radial loads, making it reliable for continuous operation.

What Makes 1315KJC3 Bearing a Preferred Choice?
In automotive applications, 1315KJC3 Bearing fits well in gearboxes and drivetrains, handling radial loads efficiently. Its tapered bore design simplifies installation, reducing downtime during maintenance.

Built for Heavy-Duty Use: 1315KJC3 Bearing
For automation equipment, 1315KJC3 Bearing supports robotic arms and assembly lines, where precision and durability are key. The chrome steel construction ensures long service life even in demanding conditions.

Medical vs Industrial: Where 1315KJC3 Bearing Excels
While not typically used in medical devices, 1315KJC3 Bearing shines in industrial settings like pumps and compressors. Its C3 radial clearance allows for thermal expansion, ideal for high-temperature environments.
