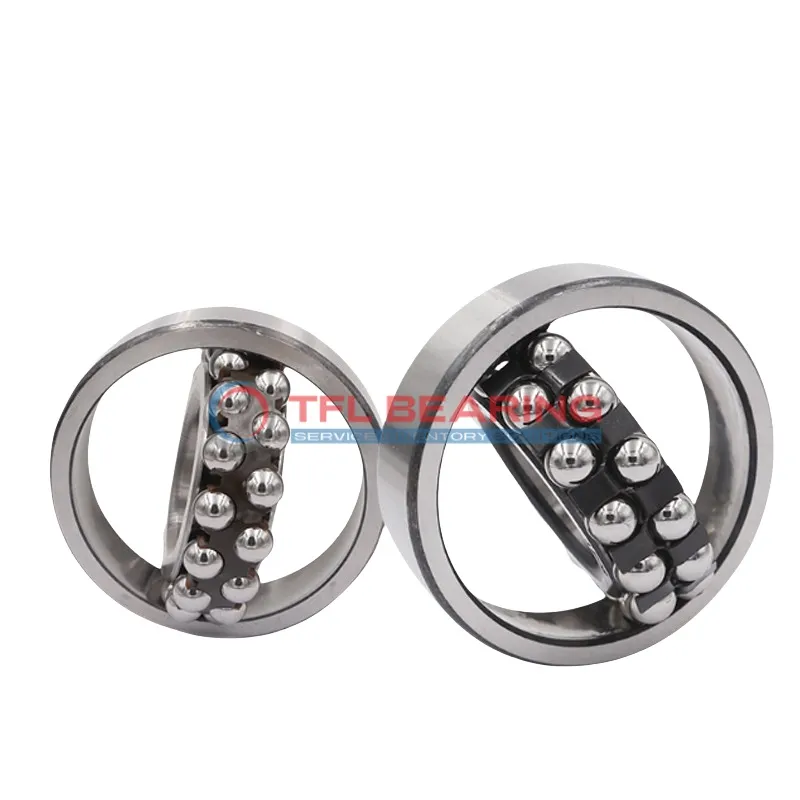

Self Aligning Ball Bearings 1313 C/3

The 1313 C/3 is a self-aligning ball bearing with a 65mm bore and 140mm outer diameter, crafted from sturdy chrome steel. It manages radial loads up to 14625 lbf and operates smoothly at speeds up to 6000 RPM.

Its double-row design and open construction allow for easy lubrication and alignment adjustments, while the nylon cage reduces friction. The bearing performs reliably in temperatures ranging from -30°C to 110°C.

This model is interchangeable with SKF bearings, making it a practical choice for replacements. Suitable for applications like conveyor systems or agricultural machinery where misalignment might occur.

Weighing 2.35kg, it’s robust yet manageable for its size. Compliant with RoHS and REACH standards for safe and eco-friendly use.

Get A Free Quote

Description

Features

Application

Q&A

Product Parameters

Part Number 1313 C/3
Brand TFL & OEM
Interchangeable SKF
Bore Dia 65 mm
Bore Dia Tolerance -0.015mm to 0
Outer Dia 140 mm
Outer Dia Tolerance -0.018mm to 0
Width 33 mm
Width Tolerance -0.15mm to 0
External Diameter On Inner Ring 99 mm
Internal Diameter On Outer Ring 125.2 mm
Chamfer Dimension 2 mm
System of Measurement Metric
Bearing Type Ball
Bore Type Cylindrical
For Load Direction Radial
Construction Double Row
Seal Type Open
Ring Material Chrome Steel
Ball Material Chrome Steel
Cage Material Nylon
Dynamic Radial Load 14625 lbf
Static Radial Load 5738 lbf
Lubrication Lubricated
Temperature Range -30° to 110 °C
Radial Clearance CN
RoHS Compliant
REACH Compliant
Max Speed 6000 rpm
Weight 2.35 kg
Price（$） 97.13

Self Aligning Ball Bearings 1313 C/3 dimension drawing

Download DWG Download PDF

Features

Performance Features of 1313 C/3 Bearing

1313 C/3 Bearing is built with chrome steel rings and balls, offering strong radial load capacity up to 14625 lbf.
Its double-row construction ensures stability and smooth operation in various applications.

The nylon cage in 1313 C/3 Bearing helps reduce friction and noise, making it suitable for precision tasks.
With a maximum speed of 6,000 rpm, it delivers reliable performance under demanding conditions.

1313 C/3 Bearing operates efficiently within a temperature range of -30° to 110°C, adapting to different environments.
Its open design simplifies maintenance while maintaining consistent performance.

Application

Common Applications of 1313 C/3 Bearing
1313 C/3 Bearing is widely used in industrial machinery, especially in conveyor systems where its self-aligning feature compensates for minor misalignments. The double-row design provides excellent radial load capacity, making it suitable for heavy-duty applications.

In automotive settings, 1313 C/3 Bearing can be found in gearboxes and drivetrains, where its durability ensures smooth operation. The metric sizing makes it compatible with various vehicle models, offering flexibility in maintenance and replacements.

For automation equipment, 1313 C/3 Bearing supports robotic arms and assembly lines, thanks to its reliable performance. The nylon cage reduces friction, enhancing efficiency in high-speed operations.

In household appliances like washing machines, 1313 C/3 Bearing’s self-aligning capability helps maintain stability during unbalanced loads. Its chrome steel construction ensures long-lasting performance even with frequent use.
