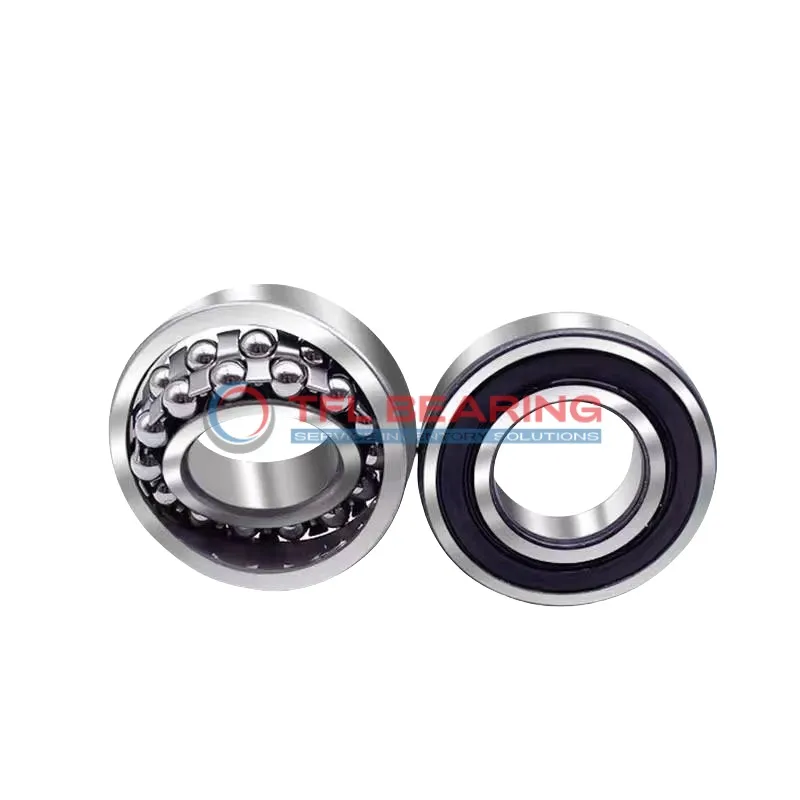

Self Aligning Ball Bearings 1312

Self Aligning Ball Bearings 1312

The 1312 is a self-aligning ball bearing with a 60mm bore and 90mm outer diameter, crafted from sturdy 52100 chrome steel. It manages radial loads up to 3360 lbf and operates smoothly at speeds up to 3620 RPM.

Its open design simplifies lubrication, while the chrome steel cage enhances durability. The bearing performs reliably in temperatures ranging from -30°C to 110°C.

This model is interchangeable with SKF bearings, offering a practical replacement option. Suitable for machinery where misalignment or radial loads are common, such as conveyor systems.

Weighing 0.59kg, it balances strength with manageable size. Compliant with RoHS and REACH standards for safe industrial use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 1312
  • Brand TFL & OEM
  • Interchangeable SKF
  • Bore Dia 60 mm
  • Bore Dia Tolerance -0.015mm to 0
  • Outer Dia 90 mm
  • Outer Dia Tolerance -0.02mm to 0
  • Width 28 mm
  • Width Tolerance +0.02mm to -0.3mm
  • System of Measurement Metric
  • Bearing Type Ball
  • Seal Type Open
  • Ring Material 52100 Chrome Steel
  • Ball Material 52100 Chrome Steel
  • Cage Material Chrome Steel
  • Dynamic Radial Load 3360 lbf
  • Static Radial Load 24460 lbf
  • Lubrication Required
  • Temperature Range -30° to 110 °C
  • RoHS Compliant
  • REACH Compliant
  • Max Speed 3620 rpm
  • Weight 0.59 kg
Self Aligning Ball Bearings 1312 dimension drawing
Download DWG Download PDF

Features

Why Choose 1312 Bearing for Precision Tasks?

1312 Bearing is crafted from 52100 chrome steel, offering excellent durability and resistance to wear.
Its dynamic radial load capacity of 3360 lbf ensures reliable performance in various applications.
The open seal design allows for easy lubrication, maintaining smooth operation over time.
With a maximum speed of 3,620 rpm, it balances efficiency and longevity.

Built for Reliability: 1312 Bearing

1312 Bearing features a robust chrome steel construction, ideal for handling static radial loads up to 24460 lbf.
Its precise dimensions (60 mm×90 mm×28 mm) ensure a perfect fit in compatible machinery.
The bearing operates efficiently within a temperature range of -30° to 110 °C.
This makes it suitable for diverse industrial environments.

How Does 1312 Bearing Reduce Friction?

1312 Bearing’s chrome steel balls and rings minimise friction, promoting smooth and quiet operation.
The open seal design facilitates proper lubrication, further reducing wear and tear.
Its dynamic radial load capacity of 3360 lbf ensures consistent performance under stress.
This combination makes it a dependable choice for precision tasks.

Application

Industrial Uses of 1312 Bearing
1312 Bearing is commonly used in industrial machinery like conveyor systems and fans, where its self-aligning feature compensates for minor misalignments. The open design allows for easy lubrication, ensuring smooth operation in demanding environments.

What Makes 1312 Bearing a Preferred Choice?
In automotive applications, 1312 Bearing supports components like gearboxes and pumps, thanks to its ability to handle both radial and axial loads. The chrome steel construction provides durability, making it suitable for long-term use.

Perfect Fit for Automation: 1312 Bearing
For automation systems, 1312 Bearing is ideal for robotic arms and assembly lines, where precision and reliability are key. Its metric sizing ensures compatibility with a wide range of equipment, simplifying integration.

Medical vs Industrial: Where 1312 Bearing Excels
In medical devices like imaging equipment, 1312 Bearing offers quiet and reliable performance. Meanwhile, in industrial settings, its robust design handles heavy loads with ease, making it versatile across sectors.
