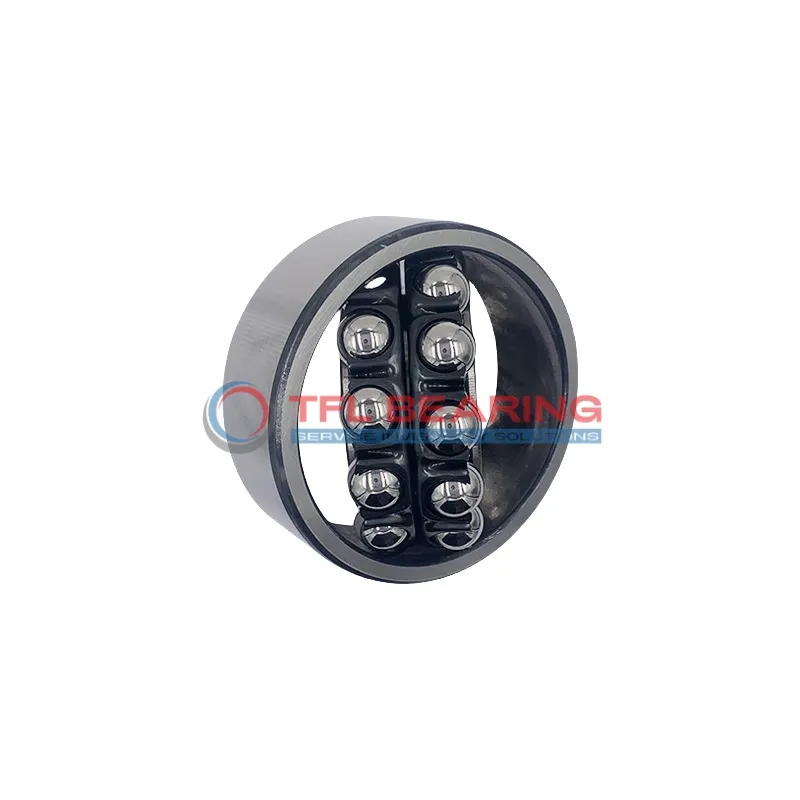

Self Aligning Ball Bearings 1308

Self Aligning Ball Bearings 1308

The 1308 is a self-aligning ball bearing with a 40mm bore and 64mm outer diameter, crafted from durable 52100 chrome steel. It manages radial loads up to 1740 lbf and operates smoothly at speeds up to 5140 RPM.

Its open design simplifies lubrication, while the chrome steel cage enhances durability. The bearing performs reliably in temperatures ranging from -30°C to 110°C.

This model is interchangeable with SKF bearings, offering a practical replacement option. It’s well-suited for applications like conveyor systems or agricultural machinery where slight misalignments may occur.

Weighing 0.24kg, it’s a sturdy yet manageable choice for various industrial uses. Compliant with RoHS and REACH standards for safe and eco-friendly operation.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 1308
  • Brand TFL & OEM
  • Interchangeable SKF
  • Bore Dia 40 mm
  • Bore Dia Tolerance -0.012mm to 0
  • Outer Dia 64 mm
  • Outer Dia Tolerance -0.015mm to 0
  • Width 21 mm
  • Width Tolerance +0.02mm to -0.25mm
  • System of Measurement Metric
  • Bearing Type Ball
  • Seal Type Open
  • Ring Material 52100 Chrome Steel
  • Ball Material 52100 Chrome Steel
  • Cage Material Chrome Steel
  • Dynamic Radial Load 1740 lbf
  • Static Radial Load 11095 lbf
  • Lubrication Required
  • Temperature Range -30° to 110 °C
  • RoHS Compliant
  • REACH Compliant
  • Max Speed 5140 rpm
  • Weight 0.24 kg
Self Aligning Ball Bearings 1308 dimension drawing
Download DWG Download PDF

Features

How Does 1308 Bearing Reduce Friction?

1308 Bearing is crafted from 52100 chrome steel, ensuring smooth operation with minimal friction.
Its self-aligning design allows for slight misalignments, reducing wear and improving efficiency.
The open seal type facilitates easy lubrication, maintaining optimal performance over time.
With a dynamic radial load capacity of 1740 lbf, it handles various applications reliably.

Performance Features of 1308 Bearing

1308 Bearing’s chrome steel construction provides excellent durability and resistance to wear.
The self-aligning capability ensures consistent performance even with minor shaft misalignments.
It operates efficiently within a temperature range of -30° to 110°C, suitable for diverse environments.
With a maximum speed of 5,140 rpm, it balances speed and load capacity effectively.

Why Choose 1308 Bearing for Precision Tasks?

1308 Bearing’s precision-engineered design ensures accurate alignment and smooth rotation.
The chrome steel balls and rings reduce friction, enhancing performance in precision applications.
Its static radial load capacity of 11095 lbf makes it reliable for heavy-duty tasks.
The open design allows for easy maintenance, ensuring long-term usability.

Engineered for Reliability: 1308 Bearing

1308 Bearing’s robust chrome steel construction ensures long-lasting performance under heavy loads.
The self-aligning feature compensates for installation errors, reducing stress on the bearing.
It operates quietly and efficiently, making it ideal for various industrial applications.
With a weight of 0.24 kg, it offers a good balance of strength and portability.

Material Composition of 1308 Bearing

1308 Bearing is made from high-quality 52100 chrome steel, known for its strength and durability.
The chrome steel cage maintains ball alignment, ensuring smooth and consistent operation.
This material choice also provides excellent resistance to wear and corrosion.
The bearing’s design and materials contribute to its reliable performance in diverse conditions.

Application

Industrial Uses of 1308 Bearing
1308 Bearing is commonly used in industrial fans and blowers, where its self-aligning feature compensates for minor misalignments. The chrome steel construction ensures durability in dusty or humid environments.

What Makes 1308 Bearing a Preferred Choice?
In conveyor systems, 1308 Bearing handles radial loads efficiently, reducing downtime in production lines. Its open design simplifies lubrication, making maintenance straightforward.

Built for Heavy-Duty Use: 1308 Bearing
For agricultural machinery, 1308 Bearing withstands variable loads and vibrations, ensuring reliable performance. The metric sizing fits most European-made equipment seamlessly.

Automotive vs Aerospace: Applications of 1308 Bearing
In automotive wheel hubs, 1308 Bearing provides smooth rotation under radial stress. While not for aerospace, it excels in ground vehicles where cost-effectiveness matters.

Perfect Fit for Automation: 1308 Bearing
1308 Bearing works well in robotic arms, offering flexibility and load capacity. Its temperature range suits both indoor and outdoor automated systems.
