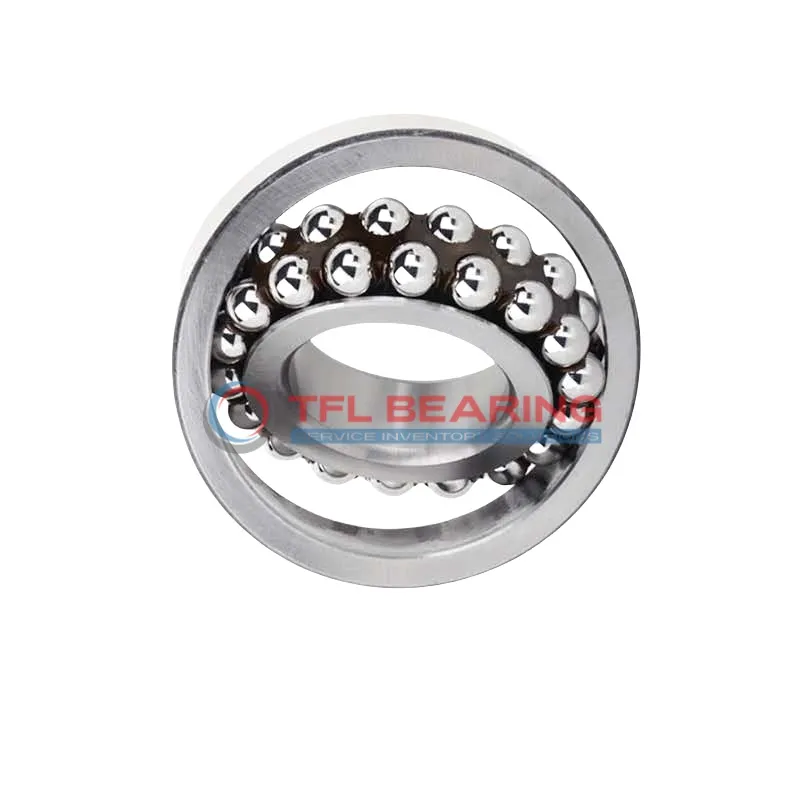

Self Aligning Ball Bearings 1308-K-TVH-C3

Self Aligning Ball Bearings 1308-K-TVH-C3

The 1308-K-TVH-C3 is a self-aligning ball bearing with a 40mm tapered bore and 90mm outer diameter, crafted from sturdy chrome steel. It handles radial loads up to 7605 lbf and operates smoothly at speeds up to 9500 RPM.

Its double-row design and open seal allow for easy lubrication, while the nylon cage reduces friction for quieter performance. The bearing works in temperatures from -30°C to 110°C.

This model is interchangeable with SKF bearings, making it a practical choice for replacements. Ideal for applications like conveyor systems or agricultural machinery where misalignment might occur.

Weighing 0.68kg, it’s a robust yet manageable size. Compliant with RoHS and REACH standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 1308-K-TVH-C3
  • Brand TFL & OEM
  • Interchangeable SKF
  • Bore Dia 40 mm
  • Bore Dia Tolerance -0.012mm to 0
  • Outer Dia 90 mm
  • Outer Dia Tolerance -0.015mm to 0
  • Width 23 mm
  • Width Tolerance -0.12mm to 0
  • External Diameter On Inner Ring 61.47 mm
  • Internal Diameter On Outer Ring 80.2 mm
  • Chamfer Dimension 1.1 mm
  • System of Measurement Metric
  • Bearing Type Ball
  • Bore Type Taper 1:12
  • For Load Direction Radial
  • Construction Double Row
  • Seal Type Open
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Nylon
  • Dynamic Radial Load 7605 lbf
  • Static Radial Load 2520 lbf
  • Lubrication Lubricated
  • Temperature Range -30° to 110 °C
  • Radial Clearance C3
  • RoHS Compliant
  • REACH Compliant
  • Max Speed 9500 rpm
  • Weight 0.68 kg
  • Price（$） 46.83
Self Aligning Ball Bearings 1308-K-TVH-C3 dimension drawing
Download DWG Download PDF

Features

How Does 1308-K-TVH-C3 Bearing Reduce Friction?

1308-K-TVH-C3 Bearing features a double-row design with chrome steel balls, ensuring smooth radial load distribution.
Its nylon cage minimises friction, enhancing operational efficiency and reducing energy consumption.
The tapered bore design allows for easy installation and secure fitting, improving overall performance.
With a maximum speed of 9,500 rpm, it delivers reliable and consistent operation in various applications.

Application

Industrial Uses of 1308-K-TVH-C3 Bearing
1308-K-TVH-C3 Bearing is commonly used in conveyor systems, where its self-aligning feature compensates for minor misalignments. The double-row design ensures reliable performance even under heavy radial loads.

In automotive applications, 1308-K-TVH-C3 Bearing fits well in wheel hubs and transmissions, thanks to its tapered bore for secure mounting. The nylon cage reduces vibration, enhancing ride comfort.

For automation equipment, 1308-K-TVH-C3 Bearing supports robotic arms with smooth, low-friction rotation. Its C3 radial clearance allows for thermal expansion in high-speed operations.

Medical imaging devices benefit from 1308-K-TVH-C3 Bearing’s precision and durability. The chrome steel construction ensures long service life in critical diagnostic equipment.

In household appliances like washing machines, 1308-K-TVH-C3 Bearing handles unbalanced loads with ease. The open design simplifies relubrication, extending maintenance intervals.
