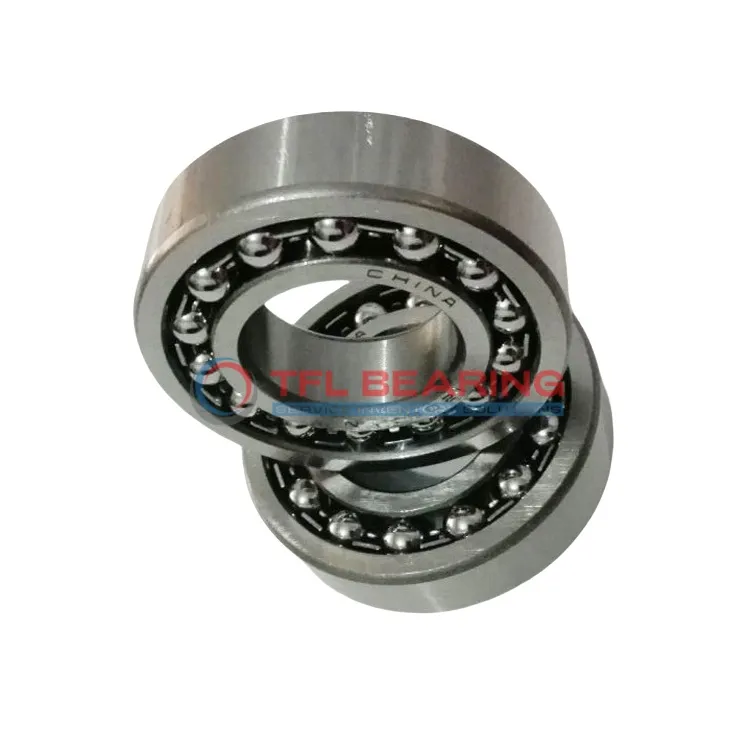

Self Aligning Ball Bearings 1307KJC3

Brand: TFL Bearing Interchangeable: SKF 1307KJC3 35 mm × 80 mm × 21 mm Metric Open
Part number: 1307KJC3
Self Aligning Ball Bearings 1307KJC3
In Stock
Price on request
Send your part number and quantity for a quote
Get a Quote WhatsApp
  • ISO 9001 quality system
  • RoHS & REACH compliant
  • Pre-shipment inspection
  • Lead time confirmed with your quote
Dimensions
Bore Dia35 mm
Bore Dia Tolerance-0.012mm to 0
Outer Dia80 mm
Outer Dia Tolerance-0.013mm to 0
Width21 mm
Width Tolerance-0.12mm to 0
External Diameter On Inner Ring51.55 mm
Internal Diameter On Outer Ring67.5 mm
Chamfer Dimension1.5 mm
Performance
Dynamic Radial Load5,962 lbf
Static Radial Load1,912 lbf
Temperature Range-30° to 110 °C
Max Speed11,000 rpm
Characteristics
System of MeasurementMetric
Bearing TypeBall
Bore TypeTaper 1:12
For Load DirectionRadial
ConstructionDouble Row
Seal TypeOpen
LubricationLubricated
Radial ClearanceC3
Weight0.51 kg
Material
Ring MaterialChrome Steel
Ball MaterialChrome Steel
Cage MaterialSteel
Compliance
RoHSCompliant
REACHCompliant
Dimension drawing · click to enlarge

Description

The 1307KJC3 is a self-aligning ball bearing with a 35mm tapered bore and 80mm outer diameter, crafted from sturdy chrome steel. It manages radial loads up to 5962 lbf and operates smoothly at speeds reaching 11000 RPM.

Its double-row design and open construction allow for easy lubrication and alignment adjustments, while the steel cage ensures durability. The bearing performs reliably in temperatures ranging from -30°C to 110°C.

This model is interchangeable with SKF bearings, making it a practical choice for replacements. Suitable for applications like conveyor systems or agricultural machinery where misalignment might occur.

Weighing 0.51kg, it offers a balance of strength and lightness. Compliant with RoHS and REACH standards for safe and eco-friendly use.

Features

Performance Features of 1307KJC3 Bearing

1307KJC3 Bearing is built with chrome steel rings and balls, offering strong resistance to radial loads.
Its dynamic radial load capacity reaches 5962 lbf, ensuring reliable performance in various applications.

The double-row design of 1307KJC3 Bearing enhances load distribution, reducing stress on individual components.
With a maximum speed of 11,000 rpm, it delivers both durability and efficiency.

1307KJC3 Bearing operates smoothly in temperatures ranging from -30° to 110°C, adapting to different environments.
Its open seal type allows for easy lubrication, maintaining optimal performance over time.

The steel cage in 1307KJC3 Bearing ensures proper ball alignment, minimising wear and extending service life.
Its C3 radial clearance provides flexibility, accommodating slight misalignments during operation.

Application

Industrial Uses of 1307KJC3 Bearing
1307KJC3 Bearing is commonly used in conveyor systems and industrial fans, where its self-aligning feature compensates for minor misalignments. The double-row design provides stable radial load support, ideal for continuous operation.

What Makes 1307KJC3 Bearing a Preferred Choice?
In automotive applications like wheel hubs, 1307KJC3 Bearing offers reliable performance due to its tapered bore and chrome steel construction. The C3 radial clearance ensures smooth rotation even under varying temperatures.

Built for Heavy-Duty Use: 1307KJC3 Bearing
This bearing excels in agricultural machinery, handling heavy loads while maintaining alignment. The steel cage enhances durability, making it suitable for harsh environments like grain elevators or tractors.

Automotive vs Industrial: Applications of 1307KJC3 Bearing
In cars, 1307KJC3 Bearing supports drivetrain components, while in factories, it powers pumps and compressors. Its metric sizing and lubrication compatibility make it versatile across sectors.

Perfect Fit for Automation: 1307KJC3 Bearing
Robotic arms often use 1307KJC3 Bearing for its precision and ability to handle radial loads. The open seal design allows easy relubrication, extending service life in automated production lines.
