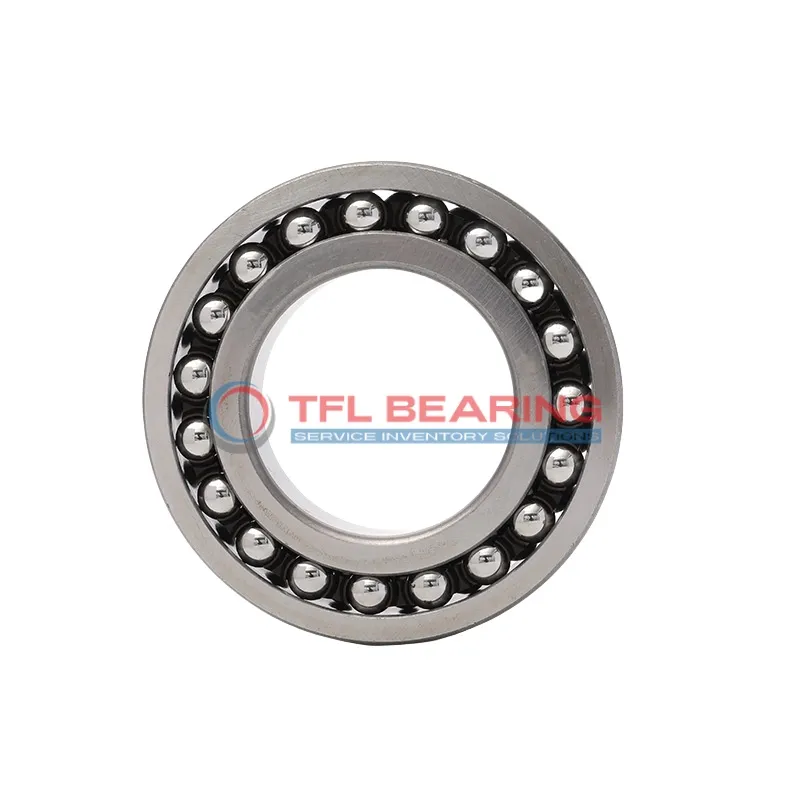

Self Aligning Ball Bearings 1306-TVH

Brand: TFL Bearing Interchangeable: SKF 1306-TVH 30 mm × 72 mm × 19 mm Metric Open
Part number: 1306-TVH
Self Aligning Ball Bearings 1306-TVH
In Stock
US$33.32 / piece
Reference price · volume pricing on request
Get a Quote WhatsApp
  • ISO 9001 quality system
  • RoHS & REACH compliant
  • Pre-shipment inspection
  • Lead time confirmed with your quote
Dimensions
Bore Dia30 mm
Bore Dia Tolerance-0.01mm to 0
Outer Dia72 mm
Outer Dia Tolerance-0.013mm to 0
Width19 mm
Width Tolerance-0.12mm to 0
External Diameter On Inner Ring45.1 mm
Internal Diameter On Outer Ring59.1 mm
Chamfer Dimension1.1 mm
Performance
Dynamic Radial Load5,062 lbf
Static Radial Load1,530 lbf
Temperature Range-30° to 110 °C
Max Speed13,000 rpm
Characteristics
System of MeasurementMetric
Bearing TypeBall
Bore TypeCylindrical
For Load DirectionRadial
ConstructionDouble Row
Seal TypeOpen
LubricationLubricated
Radial ClearanceCN
Weight0.39 kg
Material
Ring MaterialChrome Steel
Ball MaterialChrome Steel
Cage MaterialNylon
Compliance
RoHSCompliant
REACHCompliant
Dimension drawing · click to enlarge

Description

The 1306-TVH is a self-aligning ball bearing with a 30mm bore and 72mm outer diameter, crafted from sturdy chrome steel. Its double-row design handles radial loads up to 5062 lbf and spins smoothly at 13,000 RPM.

The nylon cage reduces friction and noise, while the open seal allows for easy lubrication. It operates reliably in temperatures from -30°C to 110°C.

This bearing is interchangeable with SKF models, making it a practical choice for replacements. Ideal for machinery with slight misalignments, like conveyor systems or agricultural equipment.

Weighing 0.39kg, it’s lightweight yet durable. Compliant with RoHS and REACH standards for safe use.

Features

How Does 1306-TVH Bearing Reduce Friction?

1306-TVH Bearing features a double-row design with chrome steel rings and balls, ensuring smooth radial load distribution.
Its nylon cage minimises friction, allowing for quieter operation and reduced energy consumption.

The bearing’s dynamic radial load capacity of 5062 lbf makes it suitable for demanding applications.
With a maximum speed of 13,000 rpm, it maintains efficiency without compromising durability.

1306-TVH Bearing operates reliably in temperatures ranging from -30° to 110°C.
Its open design simplifies maintenance while the precision tolerances ensure consistent performance.

Application

Common Applications of 1306-TVH Bearing
1306-TVH Bearing is widely used in industrial machinery, especially in applications where misalignment compensation is needed, such as conveyor systems and textile equipment. Its double-row design helps maintain smooth operation even under radial loads.

In automotive applications, 1306-TVH Bearing can be found in components like alternators and water pumps, where its self-aligning feature ensures reliable performance. The nylon cage reduces friction, making it suitable for high-speed rotations.

For home appliances, 1306-TVH Bearing is often used in washing machines and fans, where its durability and quiet operation are appreciated. The chrome steel construction ensures long-lasting performance in everyday use.

How Does 1306-TVH Bearing Support High-Speed Operations?
1306-TVH Bearing handles high-speed rotations efficiently, making it ideal for applications like electric motors and power tools. The lubricated design reduces wear, extending its service life.

The self-aligning feature of 1306-TVH Bearing is particularly useful in robotics, where precise movement is essential. Its nylon cage also helps minimise vibration, ensuring smoother operation.

Built for Versatility: 1306-TVH Bearing
1306-TVH Bearing works well in both light and medium-duty applications, from agricultural machinery to HVAC systems. Its open seal design allows for easy relubrication when needed.

The radial load capacity of 1306-TVH Bearing makes it a reliable choice for gearboxes and drive shafts. Its temperature range also ensures performance in various operating conditions.

Industrial vs Automotive: Where 1306-TVH Bearing Excels
In industrial settings, 1306-TVH Bearing is often chosen for its ability to handle misalignment in heavy machinery. The chrome steel rings provide excellent resistance to wear.

For automotive uses, 1306-TVH Bearing’s high-speed capability and low maintenance make it a go-to option. The metric sizing ensures compatibility with a wide range of vehicle models.
