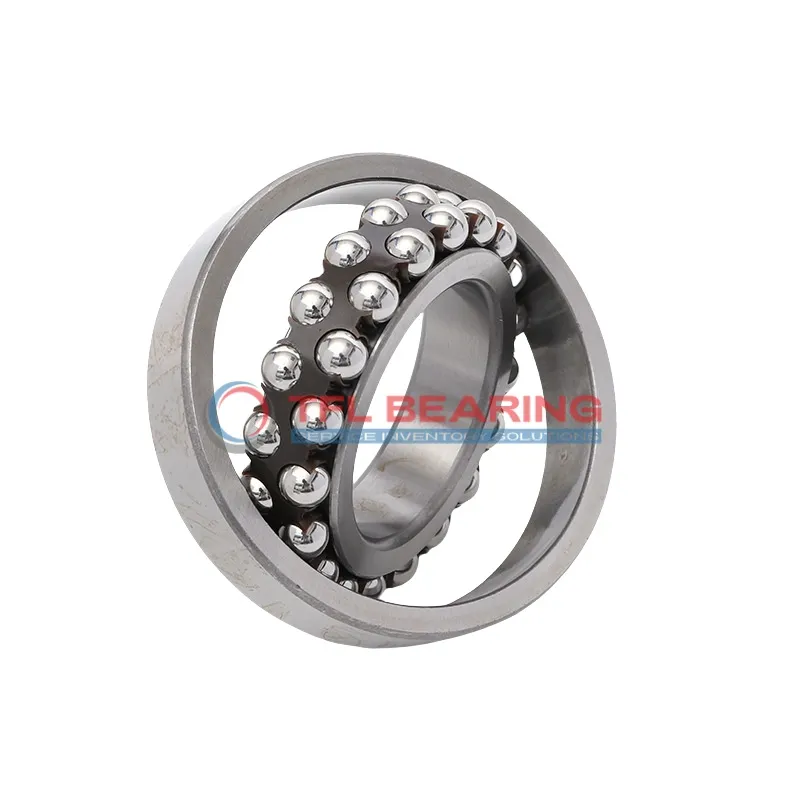

Self Aligning Ball Bearings 1303 ETN9

Brand: TFL Bearing Interchangeable: SKF 1303 ETN9 17 mm × 47 mm × 14 mm Metric Open
Part number: 1303 ETN9
Self Aligning Ball Bearings 1303 ETN9
In Stock
US$14.23 / piece
Reference price · volume pricing on request
Get a Quote WhatsApp
  • ISO 9001 quality system
  • RoHS & REACH compliant
  • Pre-shipment inspection
  • Lead time confirmed with your quote
Dimensions
Bore Dia17 mm
Bore Dia Tolerance-0.008mm to 0
Outer Dia47 mm
Outer Dia Tolerance-0.011mm to 0
Width14 mm
Width Tolerance-0.12mm to 0
External Diameter On Inner Ring28.88 mm
Internal Diameter On Outer Ring40 mm
Chamfer Dimension1 mm
Performance
Dynamic Radial Load2,858 lbf
Static Radial Load765 lbf
Temperature Range-30° to 110 °C
Max Speed20,000 rpm
Characteristics
System of MeasurementMetric
Bearing TypeBall
For Load DirectionRadial
ConstructionDouble Row
Seal TypeOpen
LubricationLubricated
Weight0.12 kg
Material
Ring MaterialChrome Steel
Ball MaterialChrome Steel
Cage MaterialNylon
Compliance
RoHSCompliant
REACHCompliant
Dimension drawing · click to enlarge

Description

The 1303 ETN9 is a self-aligning ball bearing with a 17mm bore and 47mm outer diameter, crafted from sturdy chrome steel. It manages radial loads up to 2858 lbf and operates smoothly at speeds up to 20,000 RPM.

Its double-row design and open seal allow for easy lubrication, while the nylon cage reduces friction and noise. The bearing performs reliably in temperatures ranging from -30°C to 110°C.

This model is interchangeable with SKF bearings, offering a practical replacement option. It’s well-suited for applications like electric motors or conveyor systems where misalignment might occur.

Weighing just 0.12kg, it’s lightweight yet durable. Compliant with RoHS and REACH standards, it’s a safe and efficient choice for various industrial uses.

Features

Performance Features of 1303 ETN9 Bearing

1303 ETN9 Bearing features a double-row design, offering enhanced load distribution for radial applications.
Its chrome steel rings and balls provide durability, while the nylon cage ensures smooth operation.

With a dynamic radial load capacity of 2858 lbf, it handles demanding conditions effectively.
The bearing operates at speeds up to 20,000 rpm, making it suitable for high-speed machinery.

1303 ETN9 Bearing works in temperatures from -30° to 110°C, adapting to various environments.
Its open design simplifies lubrication, ensuring consistent performance over time.

The precise dimensions and tolerances of 1303 ETN9 Bearing ensure easy installation and reliable operation.
Weighing just 0.12 kg, it combines strength with lightweight convenience.

Application

Industrial Uses of 1303 ETN9 Bearing
1303 ETN9 Bearing is commonly used in industrial machinery, especially in conveyor systems and fans, where its self-aligning feature compensates for minor misalignments. The double-row design ensures stable performance under radial loads, making it suitable for continuous operation.

What Makes 1303 ETN9 Bearing a Preferred Choice?
In automotive applications, 1303 ETN9 Bearing fits well in gearboxes and electric motors, thanks to its nylon cage which reduces friction and noise. The metric dimensions make it easy to integrate into various vehicle designs.

Perfect Fit for Automation: 1303 ETN9 Bearing
For robotics and automation, 1303 ETN9 Bearing offers smooth movement in robotic arms and 3D printers. Its chrome steel construction provides durability, while the open seal allows for easy lubrication.

Light-Duty vs Heavy-Duty: Best Uses for 1303 ETN9 Bearing
In light-duty applications like household fans, 1303 ETN9 Bearing ensures quiet and efficient operation. For heavier tasks, such as industrial pumps, its robust design handles higher loads without compromising performance.
