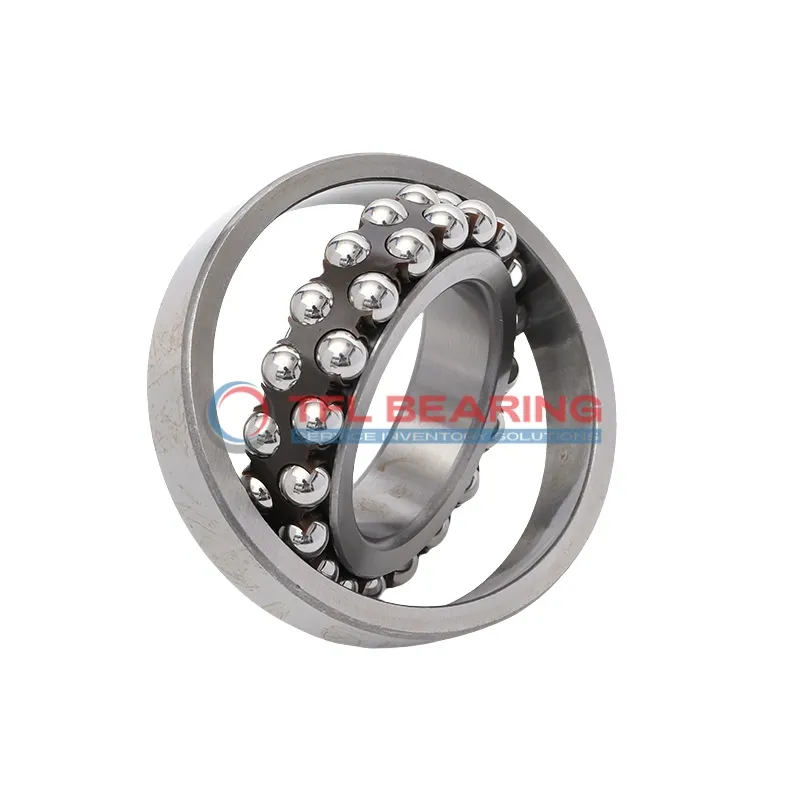

Self Aligning Ball Bearings 1302TN

Self Aligning Ball Bearings 1302TN

The 1302TN is a self-aligning ball bearing with a 15mm bore and 42mm outer diameter, designed for radial loads. Its compact width of 13mm makes it suitable for tight spaces, while the chrome steel construction ensures durability.

This double-row bearing can handle dynamic radial loads up to 2430 lbf and spins smoothly at speeds up to 24,000 RPM. The nylon cage reduces friction and noise, ideal for high-speed applications.

Its open design allows for easy lubrication, extending service life. The bearing operates well in temperatures from -30°C to 110°C, making it versatile for various environments.

Interchangeable with SKF bearings, it’s a practical choice for replacements. Commonly used in electric motors or conveyor systems where alignment flexibility is needed. Weighing just 0.094kg, it’s lightweight yet robust. Compliant with RoHS and REACH standards.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 1302TN
  • Brand TFL & OEM
  • Interchangeable SKF
  • Bore Dia 15 mm
  • Bore Dia Tolerance -0.008mm to 0
  • Outer Dia 42 mm
  • Outer Dia Tolerance -0.011mm to 0
  • Width 13 mm
  • Width Tolerance -0.12mm to 0
  • External Diameter On Inner Ring 23.9 mm
  • Internal Diameter On Outer Ring 34.3 mm
  • Chamfer Dimension 1 mm
  • System of Measurement Metric
  • Bearing Type Ball
  • Bore Type Cylindrical
  • For Load Direction Radial
  • Construction Double Row
  • Seal Type Open
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Nylon
  • Dynamic Radial Load 2430 lbf
  • Static Radial Load 585 lbf
  • Lubrication Lubricated
  • Temperature Range -30° to 110 °C
  • Radial Clearance CN
  • RoHS Compliant
  • REACH Compliant
  • Max Speed 24000 rpm
  • Weight 0.094 kg
  • Price（$） 30.18
Self Aligning Ball Bearings 1302TN dimension drawing
Download DWG Download PDF

Features

How Does 1302TN Bearing Reduce Friction?

1302TN Bearing features a double-row design with chrome steel rings and balls, ensuring smooth radial load distribution.
Its nylon cage minimises friction, allowing for quieter operation at high speeds up to 24,000 rpm.
The lubricated construction reduces wear, extending the bearing’s service life.
With a dynamic radial load capacity of 2430 lbf, it offers reliable performance in various applications.

Application

Industrial Uses of 1302TN Bearing
1302TN Bearing is commonly used in conveyor systems, where its self-aligning feature compensates for minor misalignments. The double-row design ensures steady performance even under varying radial loads.

Where Is 1302TN Bearing Used?
In automotive applications, 1302TN Bearing fits well in steering columns, providing smooth rotation and durability. Its nylon cage reduces friction, making it suitable for high-speed operations.

Built for Versatility: 1302TN Bearing
This bearing works efficiently in household appliances like washing machines, handling moderate radial loads with ease. The chrome steel construction offers good resistance to wear over time.

Light-Duty vs Heavy-Duty: Best Uses for 1302TN Bearing
For light-duty tasks, 1302TN Bearing is ideal in office printers, ensuring quiet operation. In heavier setups, it supports radial loads in small industrial motors reliably.
