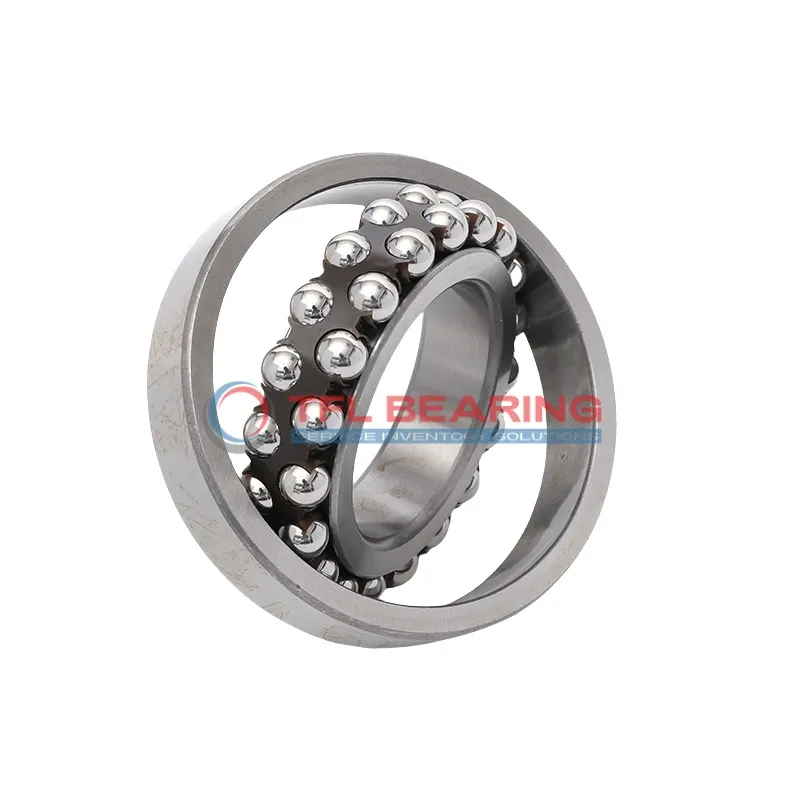

Self Aligning Ball Bearings 1302 ETN9

Brand: TFL Bearing Interchangeable: SKF 1302 ETN9 15 mm × 42 mm × 13 mm Metric Open
Part number: 1302 ETN9
Self Aligning Ball Bearings 1302 ETN9
In Stock
US$16.92 / piece
Reference price · volume pricing on request
Get a Quote WhatsApp
  • ISO 9001 quality system
  • RoHS & REACH compliant
  • Pre-shipment inspection
  • Lead time confirmed with your quote
Dimensions
Bore Dia15 mm
Bore Dia Tolerance-0.008mm to 0
Outer Dia42 mm
Outer Dia Tolerance-0.011mm to 0
Width13 mm
Width Tolerance-0.12mm to 0
External Diameter On Inner Ring23.9 mm
Internal Diameter On Outer Ring34.3 mm
Chamfer Dimension1 mm
Performance
Dynamic Radial Load2,430 lbf
Static Radial Load585 lbf
Temperature Range-30° to 110 °C
Max Speed24,000 rpm
Characteristics
System of MeasurementMetric
Bearing TypeBall
For Load DirectionRadial
ConstructionDouble Row
Seal TypeOpen
LubricationLubricated
Weight0.094 kg
Material
Ring MaterialChrome Steel
Ball MaterialChrome Steel
Cage MaterialNylon
Compliance
RoHSCompliant
REACHCompliant
Dimension drawing · click to enlarge

Description

The 1302 ETN9 is a self-aligning ball bearing with a 15mm bore and 42mm outer diameter, crafted from sturdy chrome steel. It manages radial loads up to 2430 lbf and operates smoothly at speeds up to 24,000 RPM.

Its double-row design and nylon cage help it adapt to minor misalignments, reducing wear. The open seal allows for easy lubrication, extending its lifespan.

This bearing is compatible with SKF models, making it a practical replacement option. It’s well-suited for applications like conveyor systems or electric motors where alignment flexibility is needed.

Weighing just 0.094kg, it’s lightweight yet durable. It performs reliably in temperatures from -30°C to 110°C and meets RoHS and REACH standards.

Features

How Does 1302 ETN9 Bearing Reduce Friction?

1302 ETN9 Bearing features a double-row design with chrome steel rings and balls, ensuring smooth radial load distribution.
Its nylon cage minimises friction, allowing for quieter operation and reduced energy consumption.
The bearing’s open seal type facilitates easy lubrication, maintaining optimal performance over time.
With a maximum speed of 24,000 rpm, it delivers reliable efficiency in various applications.

Application

Industrial Uses of 1302 ETN9 Bearing
1302 ETN9 Bearing is commonly used in conveyor systems, where its self-aligning feature compensates for minor shaft misalignments. The double-row design ensures stable performance even under varying radial loads.

In automotive applications, 1302 ETN9 Bearing fits well in electric motors and gearboxes, thanks to its nylon cage reducing friction. The metric dimensions make it easy to integrate into European and Asian vehicle designs.

For household appliances like washing machines, 1302 ETN9 Bearing offers quiet operation and durability. Its chrome steel construction handles everyday wear while maintaining smooth rotation.

What Makes 1302 ETN9 Bearing a Preferred Choice?
1302 ETN9 Bearing works efficiently in industrial fans, where its open design allows for easy lubrication. The high-speed capability ensures reliable performance in continuous operation.

In robotics, 1302 ETN9 Bearing supports joint movements with minimal maintenance. The self-aligning feature is particularly useful in automated systems with dynamic load changes.
