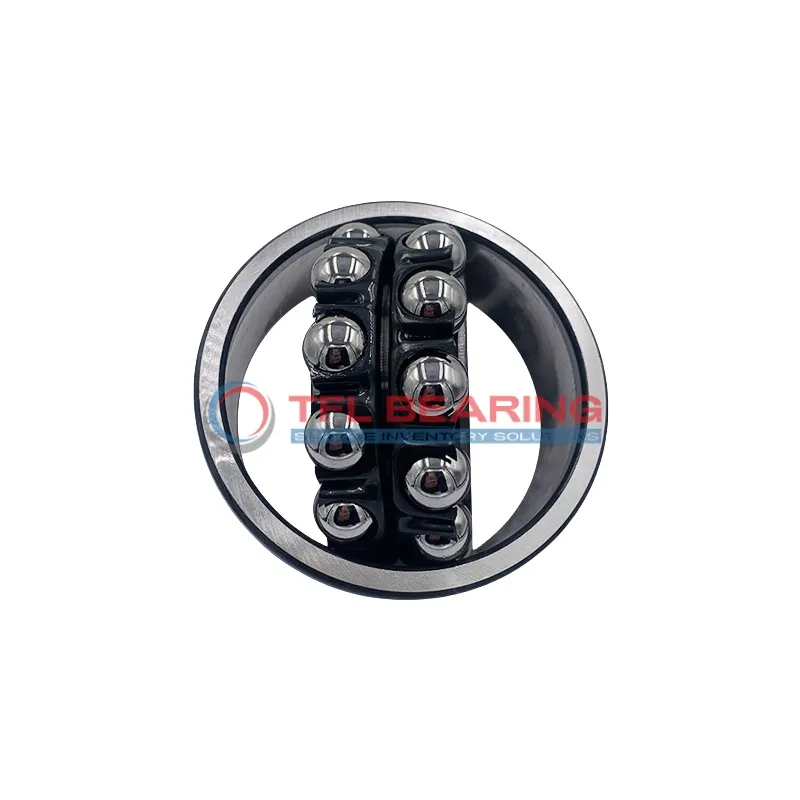

Self Aligning Ball Bearings 1300J

Self Aligning Ball Bearings 1300J

The 1300J is a self-aligning ball bearing with a 10mm bore and 30mm outer diameter, crafted from durable 52100 chrome steel. It spins smoothly at speeds up to 11,680 RPM and operates in temperatures from -30°C to 110°C.

Its open design allows for easy lubrication, while the steel cage ensures reliable performance. The bearing’s self-aligning feature helps it adapt to minor misalignments, reducing wear.

Weighing just 0.04kg, it’s lightweight yet sturdy. Ideal for applications like conveyor systems or small machinery where flexibility and speed are key.

Compliant with RoHS and REACH standards, it’s a safe and versatile choice for various industrial needs.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 1300J
  • Brand TFL & OEM
  • Interchangeable SKF
  • Bore Dia 10 mm
  • Bore Dia Tolerance -0.008mm to 0
  • Outer Dia 30 mm
  • Outer Dia Tolerance -0.01mm to 0
  • Width 14 mm
  • Width Tolerance +0.02mm to -0.25mm
  • Chamfer Dimension 0.5 mm
  • System of Measurement Metric
  • Bearing Type Ball
  • Bore Type Cylindrical
  • For Load Direction Thrust
  • Seal Type Open
  • Ring Material 52100 Chrome Steel
  • Ball Material 52100 Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 700 lbf
  • Static Radial Load 2718 lbf
  • Lubrication Required
  • Temperature Range -30° to 110 °C
  • Radial Clearance CN
  • RoHS Compliant
  • REACH Compliant
  • Max Speed 11680 rpm
  • Weight 0.04 kg
Self Aligning Ball Bearings 1300J dimension drawing
Download DWG Download PDF

Features

How Does 1300J Bearing Ensure Smooth Operation?

1300J Bearing features a self-aligning design, allowing it to compensate for minor misalignments during operation.
Its chrome steel construction ensures durability and resistance to wear in various applications.
With a maximum speed of 11,680 rpm, it delivers efficient performance in high-speed environments.
The open seal type simplifies lubrication, making maintenance straightforward and cost-effective.

Application

Industrial Uses of 1300J Bearing
1300J Bearing is commonly used in conveyor systems and material handling equipment, where its self-aligning feature helps accommodate minor misalignments. The open design simplifies lubrication, ensuring smooth operation in dusty environments.

In automotive applications, 1300J Bearing fits well in steering columns and suspension systems, providing reliable performance under varying loads. Its metric dimensions make it a versatile choice for both domestic and imported vehicles.

For home appliances like washing machines, 1300J Bearing’s steel construction offers durability and quiet operation. The compact size and lightweight design make it ideal for space-constrained installations.

Where Is 1300J Bearing Used?
You’ll often find 1300J Bearing in industrial fans and blowers, where its ability to handle radial loads ensures consistent performance. The chrome steel rings add longevity, even in high-speed applications.

In robotics, 1300J Bearing supports joint movements, thanks to its self-aligning capability. The steel cage provides stability, making it suitable for precise automation tasks.
