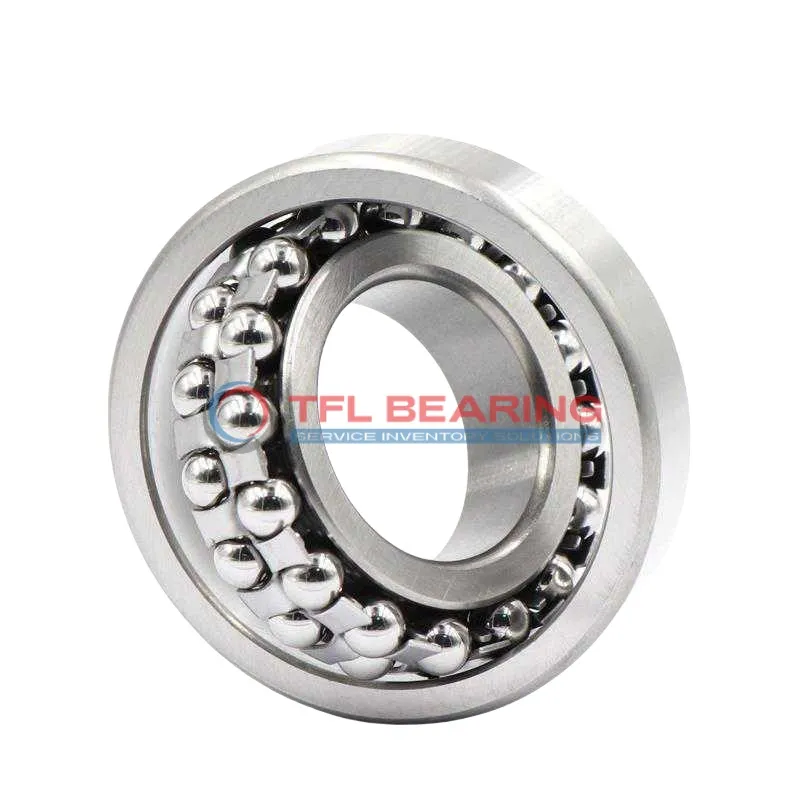

Self Aligning Ball Bearings 1222KC3

Brand: TFL Bearing Interchangeable: SKF 1222KC3 110 mm × 200 mm × 38 mm Metric Open
Part number: 1222KC3
Self Aligning Ball Bearings 1222KC3
In Stock
US$310.18 / piece
Reference price · volume pricing on request
Get a Quote WhatsApp
  • ISO 9001 quality system
  • RoHS & REACH compliant
  • Pre-shipment inspection
  • Lead time confirmed with your quote
Dimensions
Bore Dia110 mm
Bore Dia Tolerance-0.02mm to 0
Outer Dia200 mm
Outer Dia Tolerance-0.03mm to 0
Width38 mm
Width Tolerance-0.2mm to 0
External Diameter On Inner Ring140.35 mm
Internal Diameter On Outer Ring173.7 mm
Chamfer Dimension2.1 mm
Performance
Dynamic Radial Load19,890 lbf
Static Radial Load8,775 lbf
Temperature Range-30° to 110 °C
Max Speed4,300 rpm
Characteristics
System of MeasurementMetric
Bearing TypeBall
Bore TypeTaper 1:12
For Load DirectionRadial
ConstructionDouble Row
Seal TypeOpen
LubricationLubricated
Radial ClearanceC3
Weight5.15 kg
Material
Ring MaterialChrome Steel
Ball MaterialChrome Steel
Cage MaterialStainless Steel
Compliance
RoHSCompliant
REACHCompliant
Dimension drawing · click to enlarge

Description

The 1222KC3 is a self-aligning ball bearing with a 110mm tapered bore and 200mm outer diameter, crafted from sturdy chrome steel. It manages radial loads up to 19890 lbf and operates smoothly at speeds up to 4300 RPM.

Its double-row design and open seal type allow for easy lubrication and maintenance, while the stainless steel cage ensures durability. The bearing performs reliably in temperatures ranging from -30°C to 110°C.

This model is interchangeable with SKF bearings, making it a practical choice for replacements. Suitable for applications like conveyor systems or agricultural machinery where misalignment might occur.

Weighing 5.15kg, it’s a robust option for heavy-duty use. Compliant with RoHS and REACH standards for safe and eco-friendly operation.

Features

Performance Features of 1222KC3 Bearing

1222KC3 Bearing is built with a double-row design, offering excellent radial load capacity up to 19890 lbf.
Its chrome steel rings and balls ensure durability and smooth operation under demanding conditions.
The stainless steel cage maintains proper ball alignment, reducing friction and wear.
With a maximum speed of 4,300 rpm, it balances performance and longevity in various applications.

Application

Industrial Uses of 1222KC3 Bearing
The 1222KC3 Bearing is commonly used in heavy machinery, such as conveyor systems and industrial fans, where its self-aligning feature helps compensate for shaft misalignment. Its double-row design provides excellent radial load capacity, making it suitable for demanding environments.

In automotive applications, 1222KC3 Bearing can be found in gearboxes and drivetrains, where its tapered bore ensures a secure fit. The chrome steel construction offers durability, even under constant vibration and high loads.

For automation equipment, 1222KC3 Bearing supports smooth operation in robotic arms and assembly lines. The C3 radial clearance allows for thermal expansion, ensuring consistent performance in varying temperatures.

Where Is 1222KC3 Bearing Used?
You’ll often spot 1222KC3 Bearing in agricultural machinery, like harvesters and tractors, where its robust design handles rough conditions. The stainless steel cage resists corrosion, extending its lifespan in outdoor settings.

In construction equipment, 1222KC3 Bearing is ideal for cranes and excavators, thanks to its high dynamic radial load rating. The open seal design simplifies lubrication, reducing maintenance downtime.

Built for Heavy-Duty Use: 1222KC3 Bearing
The 1222KC3 Bearing excels in mining applications, where its ability to handle misalignment and heavy loads is crucial. Its lubricated design ensures smooth operation even in dusty or humid conditions.

For printing presses, 1222KC3 Bearing provides reliable performance, reducing downtime during high-speed runs. The metric sizing makes it easy to replace in European and Asian machinery.
