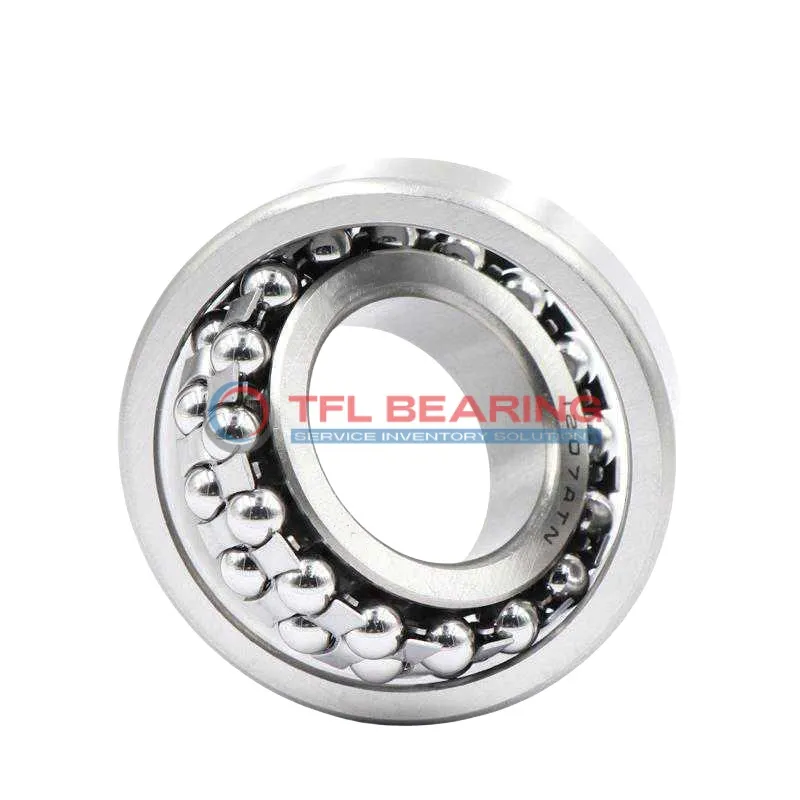

Self Aligning Ball Bearings 1215/W64F

Self Aligning Ball Bearings 1215/W64F

The 1215/W64F is a self-aligning ball bearing with a 75mm bore and 130mm outer diameter, crafted from sturdy chrome steel. It manages radial loads up to 8775 lbf and operates smoothly at speeds reaching 6700 RPM.

Its double-row design allows slight misalignment, reducing stress on the bearing. The open seal type and stainless steel cage ensure durability and easy maintenance.

This model is interchangeable with SKF bearings, making it a practical choice for replacements. Suitable for applications like conveyor systems or agricultural machinery where misalignment might occur.

Weighing 1.35kg, it’s robust yet manageable for its size. Compliant with RoHS and REACH standards, it’s safe for various industrial uses.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 1215/W64F
  • Brand TFL & OEM
  • Interchangeable SKF
  • Bore Dia 75 mm
  • Bore Dia Tolerance -0.015mm to 0
  • Outer Dia 130 mm
  • Outer Dia Tolerance -0.018mm to 0
  • Width 25 mm
  • Width Tolerance -0.15mm to 0
  • External Diameter On Inner Ring 93.05 mm
  • Internal Diameter On Outer Ring 114.2 mm
  • Chamfer Dimension 1.5 mm
  • System of Measurement Metric
  • Bearing Type Ball
  • Bore Type Cylindrical
  • For Load Direction Radial
  • Construction Double Row
  • Seal Type Open
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Stainless Steel
  • Dynamic Radial Load 8775 lbf
  • Static Radial Load 3510 lbf
  • Lubrication Lubricated
  • Temperature Range -30° to 110 °C
  • Radial Clearance CN
  • RoHS Compliant
  • REACH Compliant
  • Max Speed 6700 rpm
  • Weight 1.35 kg
  • Price（$） 163.37
Self Aligning Ball Bearings 1215/W64F dimension drawing
Download DWG Download PDF

Features

How Does 1215/W64F Bearing Reduce Friction?

1215/W64F Bearing features a double-row design with chrome steel balls, ensuring smooth radial load distribution.
Its precision-engineered construction minimises friction, enhancing operational efficiency.

The stainless steel cage maintains proper ball alignment, reducing wear and extending service life.
With a dynamic radial load capacity of 8775 lbf, it handles demanding applications reliably.

1215/W64F Bearing operates efficiently at speeds up to 6,700 rpm while maintaining low noise levels.
Its open design allows for easy lubrication, ensuring consistent performance over time.

Application

Industrial Uses of 1215/W64F Bearing
1215/W64F Bearing is commonly used in industrial machinery, especially in applications where misalignment compensation is needed, like conveyor systems and heavy-duty gearboxes. Its double-row design helps distribute loads evenly, ensuring smooth operation even under challenging conditions.

In automotive applications, 1215/W64F Bearing fits well in components like wheel hubs and transmissions, where its radial load capacity and durability are key. The metric sizing makes it a versatile choice for various vehicle models.

For automation equipment, 1215/W64F Bearing’s open design and chrome steel construction make it reliable for robotic arms and assembly lines. The stainless steel cage adds extra resistance to wear, extending its service life.

Medical devices like diagnostic machines benefit from 1215/W64F Bearing’s precision and stability. Its ability to handle radial loads quietly and efficiently makes it suitable for sensitive environments.

In household appliances, 1215/W64F Bearing can be found in washing machines and fans, where its self-aligning feature helps reduce noise and vibration. The lubricated design ensures long-term performance with minimal maintenance.
