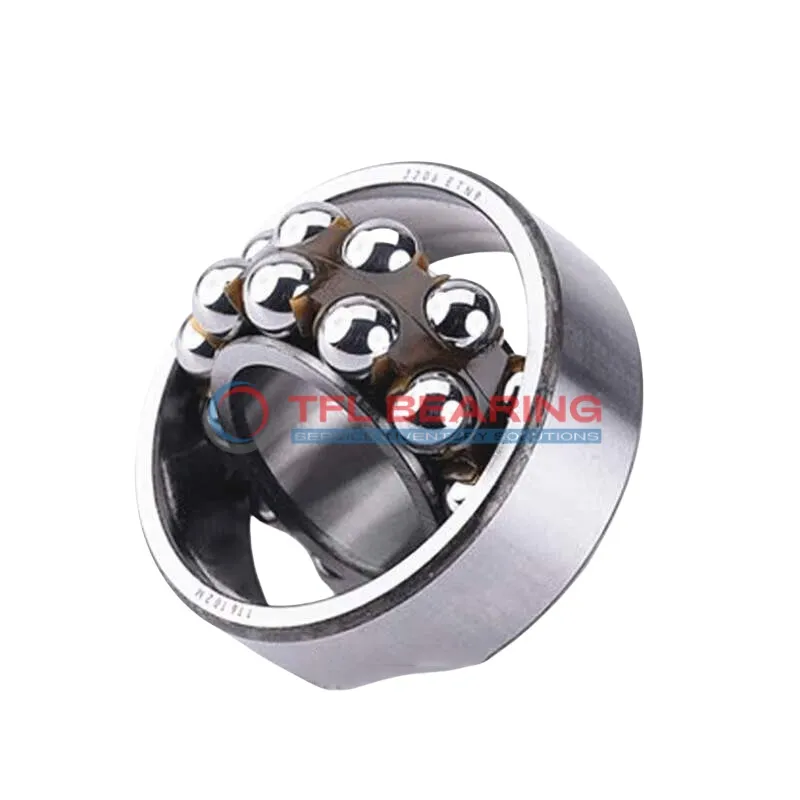

Self Aligning Ball Bearings 1214 C/2

Self Aligning Ball Bearings 1214 C/2

The 1214 C/2 is a self-aligning ball bearing with a 70mm bore and 125mm outer diameter, crafted from sturdy chrome steel. It handles radial loads up to 8055 lbf and operates smoothly at speeds up to 7000 RPM.
Its double-row design allows for slight misalignment, making it forgiving in less precise setups. The nylon cage reduces friction and noise, enhancing performance.
This bearing is pre-lubricated and works in temperatures from -30°C to 110°C. It’s interchangeable with SKF models, offering a reliable replacement option.
Ideal for machinery with radial loads, such as conveyor systems or agricultural equipment. Weighing 1.25kg, it’s robust yet manageable for its size. Compliant with RoHS and REACH standards.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 1214 C/2
  • Brand TFL & OEM
  • Interchangeable SKF
  • Bore Dia 70 mm
  • Bore Dia Tolerance -0.015mm to 0
  • Outer Dia 125 mm
  • Outer Dia Tolerance -0.018mm to 0
  • Width 24 mm
  • Width Tolerance -0.15mm to 0
  • External Diameter On Inner Ring 87.45 mm
  • Internal Diameter On Outer Ring 106.6 mm
  • Chamfer Dimension 1.5 mm
  • System of Measurement Metric
  • Bearing Type Ball
  • Bore Type Cylindrical
  • For Load Direction Radial
  • Construction Double Row
  • Seal Type Open
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Nylon
  • Dynamic Radial Load 8055 lbf
  • Static Radial Load 3285 lbf
  • Lubrication Lubricated
  • Temperature Range -30° to 110 °C
  • Radial Clearance CN
  • RoHS Compliant
  • REACH Compliant
  • Max Speed 7000 rpm
  • Weight 1.25 kg
  • Price（$） 95.68
Self Aligning Ball Bearings 1214 C/2 dimension drawing
Download DWG Download PDF

Features

Why Choose 1214 C/2 Bearing for Precision Tasks?

1214 C/2 Bearing features a double-row design with chrome steel rings and balls, ensuring precise radial load handling.
Its dynamic radial load capacity of 8055 lbf makes it suitable for demanding applications.

The nylon cage in 1214 C/2 Bearing keeps the balls aligned, reducing friction and noise during operation.
With a maximum speed of 7,000 rpm, it offers both durability and smooth performance.

1214 C/2 Bearing operates efficiently in temperatures ranging from -30° to 110°C, adapting to various environments.
Its open seal design allows for easy lubrication, extending maintenance intervals.

The precise dimensions of 1214 C/2 Bearing ensure compatibility with standard metric systems.
Its chamfered edges at 1.5 mm facilitate easier installation and alignment.

Application

Industrial Uses of 1214 C/2 Bearing
1214 C/2 Bearing is commonly used in industrial machinery like conveyor systems and pumps, where its self-aligning feature compensates for minor misalignments. The double-row design provides excellent radial load capacity, ensuring reliable performance in demanding environments.

What Makes 1214 C/2 Bearing a Preferred Choice?
In automotive applications, 1214 C/2 Bearing is often found in gearboxes and wheel hubs, where its nylon cage reduces friction and noise. The chrome steel construction also offers durability under high-speed conditions.

Perfect Fit for Automation: 1214 C/2 Bearing
For robotic arms and automated production lines, 1214 C/2 Bearing’s ability to handle misalignment ensures smooth operation. Its lubricated design further enhances longevity in continuous-use scenarios.

Light-Duty vs Heavy-Duty: Best Uses for 1214 C/2 Bearing
In light-duty applications like household fans, 1214 C/2 Bearing provides quiet and efficient performance. For heavier tasks such as industrial mixers, its robust design handles significant radial loads with ease.
