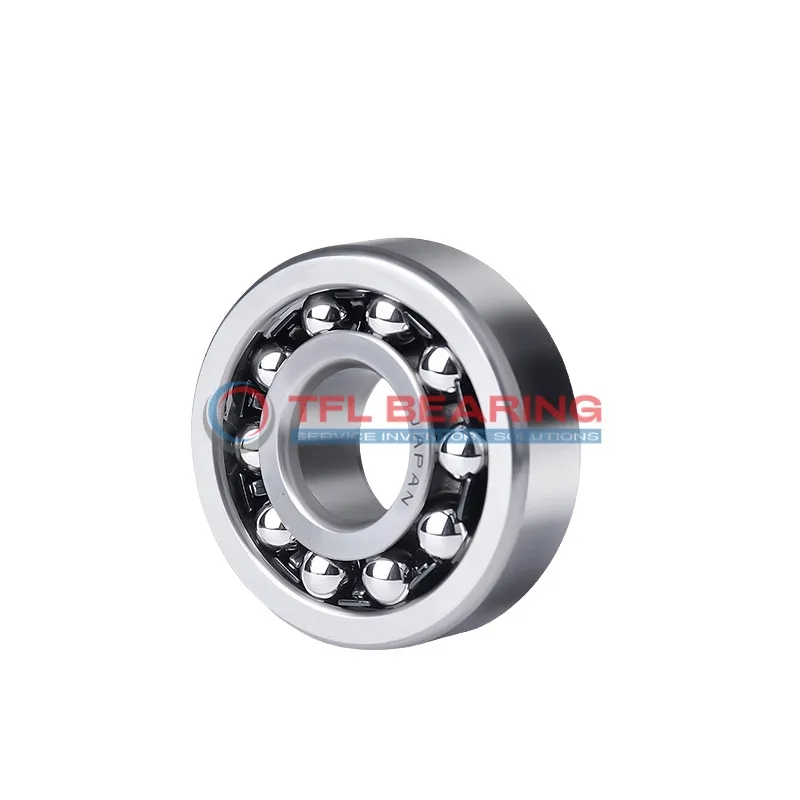

Self Aligning Ball Bearings 1212KJC3

Self Aligning Ball Bearings 1212KJC3

The 1212KJC3 is a self-aligning ball bearing with a 60mm tapered bore and 110mm outer diameter, crafted from sturdy chrome steel. It manages radial loads up to 7020 lbf and operates smoothly at speeds reaching 8000 RPM.

Designed with a double-row construction, it compensates for minor misalignments, while the open seal allows for easy lubrication. The steel cage enhances durability, making it suitable for heavy-duty use.

This model is interchangeable with SKF bearings, offering a reliable alternative for replacements. It performs well in temperatures ranging from -30°C to 110°C, ideal for industrial machinery or conveyor systems.

Weighing 0.9kg, it’s robust yet manageable for its size. Compliant with RoHS and REACH standards, ensuring safe and eco-friendly operation.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 1212KJC3
  • Brand TFL & OEM
  • Interchangeable SKF
  • Bore Dia 60 mm
  • Bore Dia Tolerance -0.015mm to 0
  • Outer Dia 110 mm
  • Outer Dia Tolerance -0.015mm to 0
  • Width 22 mm
  • Width Tolerance -0.15mm to 0
  • External Diameter On Inner Ring 78 mm
  • Internal Diameter On Outer Ring 95.6 mm
  • Chamfer Dimension 1.5 mm
  • System of Measurement Metric
  • Bearing Type Ball
  • Bore Type Taper 1:12
  • For Load Direction Radial
  • Construction Double Row
  • Seal Type Open
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 7020 lbf
  • Static Radial Load 2745 lbf
  • Lubrication Lubricated
  • Temperature Range -30° to 110 °C
  • Radial Clearance C3
  • RoHS Compliant
  • REACH Compliant
  • Max Speed 8000 rpm
  • Weight 0.9 kg
Self Aligning Ball Bearings 1212KJC3 dimension drawing
Download DWG Download PDF

Features

How Does 1212KJC3 Bearing Handle Radial Loads?

1212KJC3 Bearing features a double-row design, optimised for handling substantial radial loads up to 7020 lbf.
Its chrome steel construction ensures durability and resistance to wear in demanding applications.

The tapered bore design of 1212KJC3 Bearing allows for secure mounting, reducing slippage during operation.
With a maximum speed of 8,000 rpm, it offers reliable performance in high-speed conditions.

1212KJC3 Bearing’s C3 radial clearance provides flexibility in various operating temperatures.
This makes it suitable for environments ranging from -30° to 110 °C.

The open seal type of 1212KJC3 Bearing simplifies maintenance while ensuring proper lubrication.
Its steel cage keeps the balls aligned, enhancing smooth rotation and longevity.

Application

Industrial Uses of 1212KJC3 Bearing
1212KJC3 Bearing is commonly used in conveyor systems, where its self-aligning feature compensates for minor misalignments. The double-row design ensures reliable performance under radial loads in demanding industrial environments.

Where Is 1212KJC3 Bearing Used?
In automotive applications, 1212KJC3 Bearing fits well in gearboxes and drivetrains, thanks to its tapered bore for secure mounting. Its chrome steel construction offers durability for high-speed operations.

Perfect Fit for Automation: 1212KJC3 Bearing
1212KJC3 Bearing works smoothly in robotic arms, providing precise movement with minimal friction. The open seal design allows for easy lubrication, extending its service life in automated systems.

Medical vs Industrial: Where 1212KJC3 Bearing Excels
While 1212KJC3 Bearing handles heavy loads in industrial machinery, it also suits medical imaging devices where consistent rotation is key. The steel cage adds stability for long-term use.
