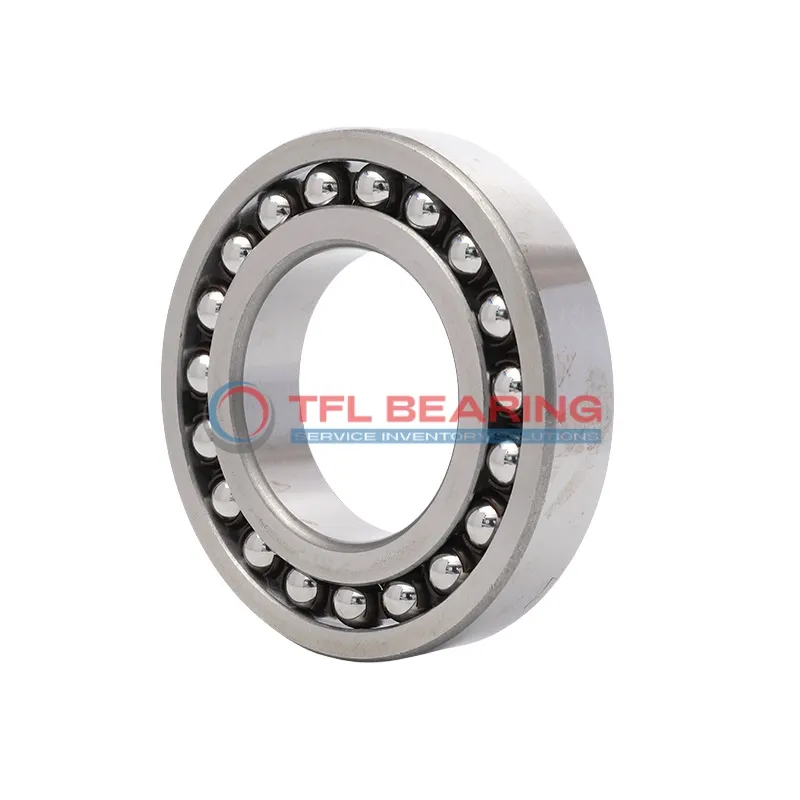

Self Aligning Ball Bearings 1211KTNC3

Brand: TFL Bearing Interchangeable: SKF 1211KTNC3 55 mm × 100 mm × 21 mm Metric Open
Part number: 1211KTNC3
Self Aligning Ball Bearings 1211KTNC3
In Stock
US$49.48 / piece
Reference price · volume pricing on request
Get a Quote WhatsApp
  • ISO 9001 quality system
  • RoHS & REACH compliant
  • Pre-shipment inspection
  • Lead time confirmed with your quote
Dimensions
Bore Dia55 mm
Bore Dia Tolerance-0.015mm to 0
Outer Dia100 mm
Outer Dia Tolerance-0.015mm to 0
Width21 mm
Width Tolerance-0.15mm to 0
External Diameter On Inner Ring70.3 mm
Internal Diameter On Outer Ring86.5 mm
Chamfer Dimension1.5 mm
Performance
Dynamic Radial Load6,210 lbf
Static Radial Load2,385 lbf
Temperature Range-30° to 110 °C
Max Speed9,000 rpm
Characteristics
System of MeasurementMetric
Bearing TypeBall
Bore TypeTaper 1:12
For Load DirectionRadial
ConstructionDouble Row
Seal TypeOpen
LubricationLubricated
Radial ClearanceC3
Weight0.71 kg
Material
Ring MaterialChrome Steel
Ball MaterialChrome Steel
Cage MaterialNylon
Compliance
RoHSCompliant
REACHCompliant
Dimension drawing · click to enlarge

Description

The 1211KTNC3 is a self-aligning ball bearing with a 55mm tapered bore and 100mm outer diameter, crafted from sturdy chrome steel. It manages radial loads up to 6210 lbf and operates smoothly at speeds reaching 9000 RPM.

Its double-row design and open seal allow for easy lubrication, while the nylon cage reduces friction and noise. The bearing performs reliably in temperatures from -30°C to 110°C.

This model is interchangeable with SKF bearings, offering a practical replacement option. Suitable for machinery with misalignment issues, such as conveyor systems or agricultural equipment.

Weighing 0.71kg, it’s a robust yet manageable size. Compliant with RoHS and REACH standards for safe and eco-friendly use.

Features

Why Choose 1211KTNC3 Bearing for Precision Tasks?

1211KTNC3 Bearing features a double-row design with chrome steel rings and balls, ensuring reliable radial load handling.
Its dynamic radial load capacity of 6210 lbf makes it suitable for demanding applications.

The nylon cage maintains ball alignment, reducing friction and noise during operation.
With a maximum speed of 9,000 rpm, it offers both durability and smooth performance.

1211KTNC3 Bearing operates efficiently within a temperature range of -30° to 110°C.
Its C3 radial clearance ensures optimal performance under varying conditions.

The tapered bore design simplifies installation and enhances alignment accuracy.
This makes 1211KTNC3 Bearing a practical choice for precision machinery.

Application

Industrial Uses of 1211KTNC3 Bearing
1211KTNC3 Bearing is commonly used in industrial machinery like conveyors and mixers, where its self-aligning feature compensates for minor misalignments. The double-row design provides reliable radial load support, making it suitable for heavy-duty applications.

In automotive systems, 1211KTNC3 Bearing fits well in components like wheel hubs and transmissions, thanks to its tapered bore for secure mounting. The chrome steel construction ensures durability even under constant vibration and stress.

For automation equipment, 1211KTNC3 Bearing’s nylon cage reduces friction, enhancing efficiency in robotic arms and assembly lines. Its C3 radial clearance allows for thermal expansion, making it adaptable to varying operational conditions.

What Makes 1211KTNC3 Bearing a Preferred Choice?
1211KTNC3 Bearing stands out in agricultural machinery, where its self-aligning capability handles uneven loads from tillers and harvesters. The lubricated design ensures smooth operation in dusty or humid environments.

In construction equipment, 1211KTNC3 Bearing’s robust build supports radial loads in cranes and excavators. The metric sizing makes it easy to replace in European and Asian machinery, reducing downtime during maintenance.
