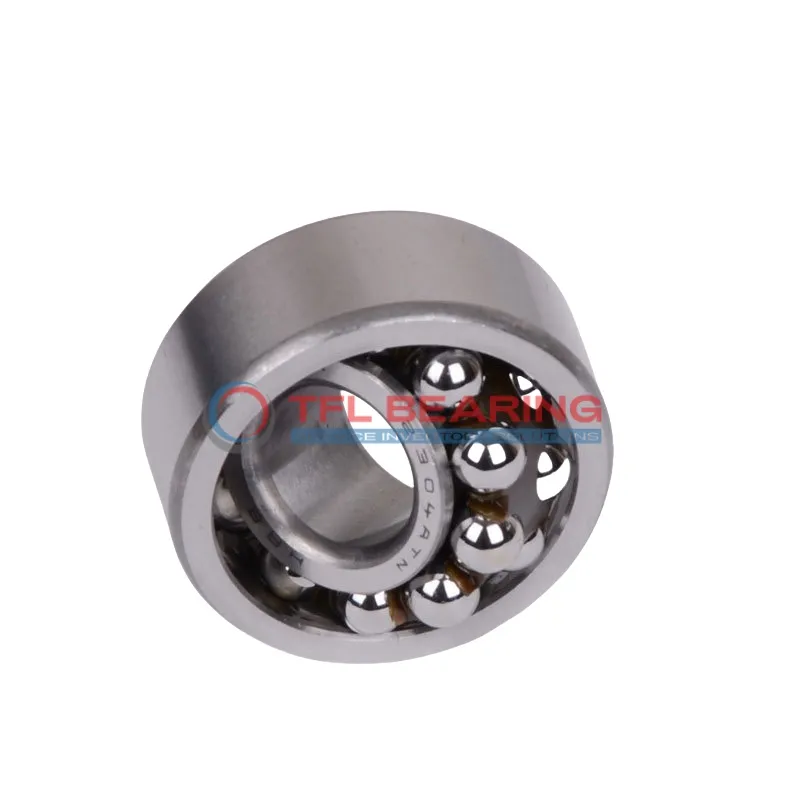

Self Aligning Ball Bearings 1210KC3 5

Brand: TFL Bearing Interchangeable: SKF 1210KC3 5 50 mm × 90 mm × 20 mm Metric Open
Part number: 1210KC3 5
Self Aligning Ball Bearings 1210KC3 5
In Stock
Price on request
Send your part number and quantity for a quote
Get a Quote WhatsApp
  • ISO 9001 quality system
  • RoHS & REACH compliant
  • Pre-shipment inspection
  • Lead time confirmed with your quote
Dimensions
Bore Dia50 mm
Bore Dia Tolerance-0.012mm to 0
Outer Dia90 mm
Outer Dia Tolerance-0.015mm to 0
Width20 mm
Width Tolerance-0.12mm to 0
External Diameter On Inner Ring61.7 mm
Internal Diameter On Outer Ring78.1 mm
Chamfer Dimension1.1 mm
Performance
Dynamic Radial Load5,962 lbf
Static Radial Load2,059 lbf
Temperature Range-30° to 110 °C
Max Speed10,000 rpm
Characteristics
System of MeasurementMetric
Bearing TypeBall
Bore TypeTaper 1:12
For Load DirectionRadial
ConstructionDouble Row
Seal TypeOpen
LubricationLubricated
Radial ClearanceC3
Weight0.53 kg
Material
Ring MaterialChrome Steel
Ball MaterialChrome Steel
Cage MaterialNylon
Compliance
RoHSCompliant
REACHCompliant
Dimension drawing · click to enlarge

Description

The 1210KC3 5 is a self-aligning ball bearing with a 50mm tapered bore and 90mm outer diameter, crafted from sturdy chrome steel. It manages radial loads up to 5962 lbf and can spin at speeds reaching 10,000 RPM.

Its double-row design and open seal type make it adaptable to slight misalignments, while the nylon cage reduces friction for smoother operation. The bearing is pre-lubricated and performs reliably between -30°C and 110°C.

This model is compatible with SKF bearings, offering a practical replacement option. It’s well-suited for machinery with radial loads, such as conveyor systems or agricultural equipment.

Weighing 0.53kg, it’s a robust yet manageable choice. Compliant with RoHS and REACH standards, ensuring safety and environmental friendliness.

Features

How Does 1210KC3 5 Bearing Reduce Friction?

1210KC3 5 Bearing features a double-row ball design with chrome steel rings and balls, ensuring smooth radial load distribution.
The nylon cage minimises friction, allowing for quieter operation and reduced energy consumption.

With a dynamic radial load capacity of 5962 lbf, it handles demanding applications efficiently.
Its C3 radial clearance provides optimal performance under varying operational conditions.

The open seal design simplifies maintenance while the tapered bore ensures secure fitting.
A maximum speed of 10,000 rpm makes it suitable for high-speed machinery.

Operating between -30°C to 110°C, 1210KC3 5 Bearing performs reliably in diverse environments.
Its lightweight construction at 0.53 kg offers easy handling without compromising durability.

Application

Ideal for Precision: 1210KC3 5 Bearing
The 1210KC3 5 Bearing is a great fit for conveyor systems, where its self-aligning feature compensates for minor misalignments. Its double-row design ensures smooth operation even under heavy radial loads.

In automotive applications, 1210KC3 5 Bearing works well in gearboxes and wheel hubs, thanks to its tapered bore for secure fitting. The nylon cage reduces friction, making it quieter during high-speed rotations.

For robotics, 1210KC3 5 Bearing’s open design allows easy lubrication, which is handy for automated arms and joints. The C3 clearance provides just the right amount of play for dynamic movements.

Around the house, you might find 1210KC3 5 Bearing in washing machines or fans, where reliability matters. Its chrome steel construction keeps it running smoothly for years with minimal maintenance.
