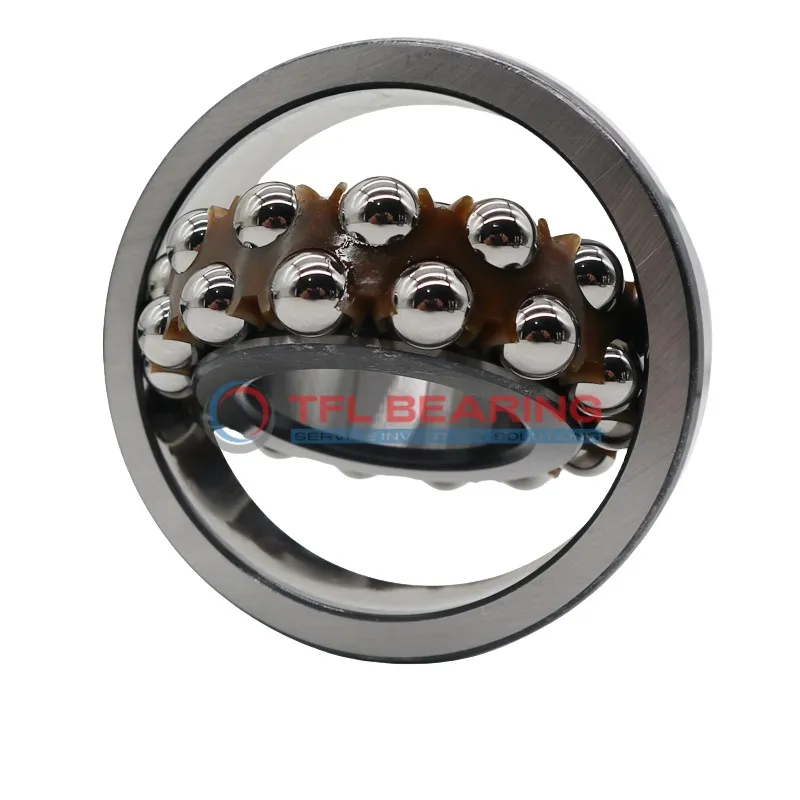

Self Aligning Ball Bearings 1210 ETN9

Brand: TFL Bearing Interchangeable: SKF 1210 ETN9 50 mm × 90 mm × 20 mm Metric Open
Part number: 1210 ETN9
Self Aligning Ball Bearings 1210 ETN9
In Stock
US$23.17 / piece
Reference price · volume pricing on request
Get a Quote WhatsApp
  • ISO 9001 quality system
  • RoHS & REACH compliant
  • Pre-shipment inspection
  • Lead time confirmed with your quote
Dimensions
Bore Dia50 mm
Bore Dia Tolerance-0.012mm to 0
Outer Dia90 mm
Outer Dia Tolerance-0.015mm to 0
Width20 mm
Width Tolerance-0.12mm to 0
External Diameter On Inner Ring61.7 mm
Internal Diameter On Outer Ring78.1 mm
Chamfer Dimension1.1 mm
Performance
Dynamic Radial Load5,962 lbf
Static Radial Load2,059 lbf
Temperature Range-30° to 110 °C
Max Speed10,000 rpm
Characteristics
System of MeasurementMetric
Bearing TypeBall
For Load DirectionRadial
ConstructionDouble Row
Seal TypeOpen
LubricationLubricated
Weight0.53 kg
Material
Ring MaterialChrome Steel
Ball MaterialChrome Steel
Cage MaterialNylon
Compliance
RoHSCompliant
REACHCompliant
Dimension drawing · click to enlarge

Description

The 1210 ETN9 is a self-aligning ball bearing with a 50mm bore and 90mm outer diameter, crafted from sturdy chrome steel. Its double-row design helps manage radial loads up to 5962 lbf while spinning smoothly at 10,000 RPM.

The nylon cage reduces friction and noise, making it a quiet performer. Pre-lubricated for easy use, it operates well in temperatures from -30°C to 110°C.

This bearing is interchangeable with SKF models, offering a reliable replacement option. Ideal for machinery with slight misalignments, such as conveyor systems or agricultural equipment.

Weighing 0.53kg, it balances durability with manageable size. Compliant with RoHS and REACH standards for safe industrial use.

Features

Why Choose 1210 ETN9 Bearing for Precision Tasks?

1210 ETN9 Bearing features a double-row design with chrome steel rings and balls, ensuring precise radial load handling.
Its dynamic radial load capacity of 5962 lbf makes it suitable for high-performance applications.

The nylon cage in 1210 ETN9 Bearing reduces friction and noise, enhancing smooth operation.
With a maximum speed of 10,000 rpm, it maintains efficiency without compromising durability.

1210 ETN9 Bearing operates reliably in temperatures ranging from -30° to 110°C.
Its open design allows for easy lubrication, ensuring consistent performance over time.

Application

Industrial Uses of 1210 ETN9 Bearing
The 1210 ETN9 Bearing is commonly used in industrial machinery like conveyor systems and pumps, where its self-aligning feature helps compensate for minor misalignments. Its double-row design provides reliable radial load support, making it suitable for continuous operation.

In automotive applications, 1210 ETN9 Bearing can be found in components such as alternators and fans, where smooth rotation is essential. The chrome steel construction ensures durability even under varying temperatures and loads.

For automation equipment, 1210 ETN9 Bearing’s nylon cage reduces friction, enhancing efficiency in robotic arms and assembly lines. Its open design allows for easy lubrication, extending service life in high-speed scenarios.

Where Is 1210 ETN9 Bearing Used?
You’ll often spot 1210 ETN9 Bearing in household appliances like washing machines, where its self-aligning capability handles vibrations effectively. The metric sizing ensures compatibility with a wide range of European-designed products.

In medical devices, 1210 ETN9 Bearing’s smooth operation is ideal for precision instruments like lab centrifuges. The lubricated design minimises maintenance, which is crucial in sterile environments.

Built for Heavy-Duty Use: 1210 ETN9 Bearing
The 1210 ETN9 Bearing excels in construction equipment, where its robust design handles heavy radial loads effortlessly. Its chrome steel rings and balls provide long-lasting performance in demanding conditions.

For agricultural machinery, 1210 ETN9 Bearing’s self-aligning feature is a game-changer, accommodating shaft deflections in tractors and harvesters. The open seal type simplifies cleaning and relubrication in dusty environments.

Automotive vs Aerospace: Applications of 1210 ETN9 Bearing
In automotive systems, 1210 ETN9 Bearing is often used in transmissions, offering reliable performance under radial loads. Its metric dimensions make it a go-to choice for many vehicle manufacturers.

For aerospace applications, 1210 ETN9 Bearing’s lightweight design and durability are valued in auxiliary systems. The temperature range ensures functionality in varying flight conditions.
