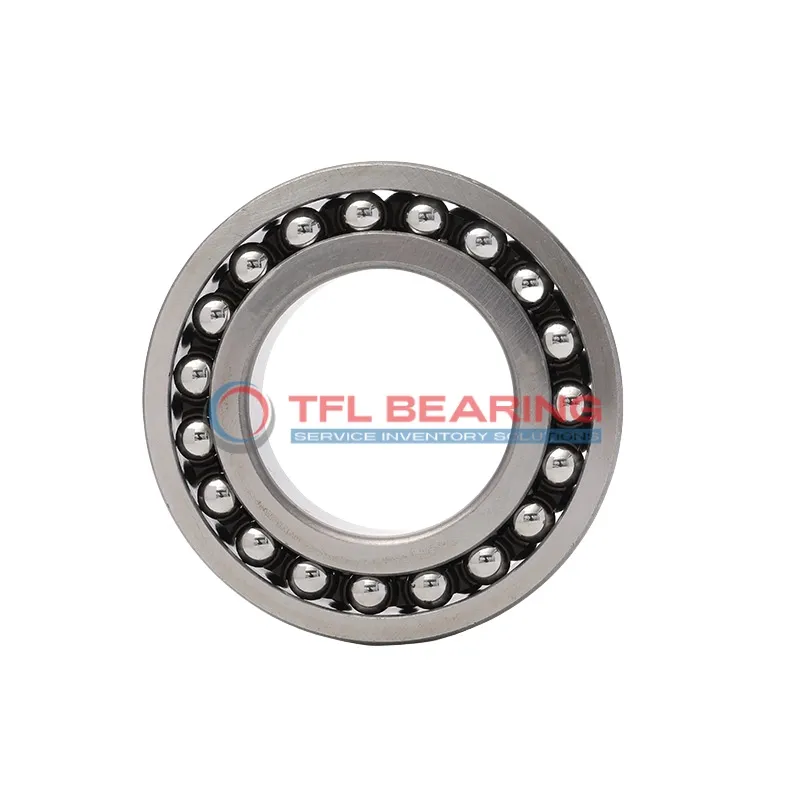

Self Aligning Ball Bearings 1206-K C/3

Brand: TFL Bearing Interchangeable: SKF 1206-K C/3 30 mm × 62 mm × 16 mm Metric Open
Part number: 1206-K C/3
Self Aligning Ball Bearings 1206-K C/3
In Stock
US$17.91 / piece
Reference price · volume pricing on request
Get a Quote WhatsApp
  • ISO 9001 quality system
  • RoHS & REACH compliant
  • Pre-shipment inspection
  • Lead time confirmed with your quote
Dimensions
Bore Dia30 mm
Bore Dia Tolerance-0.01mm to 0
Outer Dia62 mm
Outer Dia Tolerance-0.013mm to 0
Width16 mm
Width Tolerance-0.12mm to 0
External Diameter On Inner Ring40.3 mm
Internal Diameter On Outer Ring51.9 mm
Chamfer Dimension1 mm
Performance
Dynamic Radial Load3,510 lbf
Static Radial Load1,046 lbf
Temperature Range-30° to 110 °C
Max Speed15,000 rpm
Characteristics
System of MeasurementMetric
Bearing TypeBall
Bore TypeTaper 1:12
For Load DirectionRadial
ConstructionDouble Row
Seal TypeOpen
LubricationLubricated
Radial ClearanceCN
Weight0.22 kg
Material
Ring MaterialChrome Steel
Ball MaterialChrome Steel
Cage MaterialNylon
Compliance
RoHSCompliant
REACHCompliant
Dimension drawing · click to enlarge

Description

The 1206-K C/3 is a self-aligning ball bearing with a 30mm tapered bore and 62mm outer diameter, crafted from sturdy chrome steel. It manages radial loads up to 3510 lbf and operates smoothly at speeds up to 15,000 RPM.

Its double-row design and open seal make it adaptable to slight misalignments, while the nylon cage reduces friction for quieter performance. The bearing is pre-lubricated and works in temperatures from -30°C to 110°C.

This model is interchangeable with SKF bearings, offering a reliable replacement option. It’s well-suited for machinery with shaft misalignment, like conveyor systems or agricultural equipment.

Weighing 0.22kg, it’s a lightweight yet durable choice. Compliant with RoHS and REACH standards for safe and eco-friendly use.

Features

Why Choose 1206-K C/3 Bearing for Precision Tasks?

1206-K C/3 Bearing features a double-row design with chrome steel rings and balls, ensuring high radial load capacity.
Its dynamic radial load reaches 3510 lbf, making it suitable for demanding applications.
The nylon cage helps reduce friction and noise, enhancing smooth operation.
With a maximum speed of 15,000 rpm, it offers both durability and efficiency in performance.

Application

Industrial Uses of 1206-K C/3 Bearing
The 1206-K C/3 Bearing is commonly used in conveyor systems and material handling equipment, where its self-aligning feature compensates for minor misalignments. Its double-row design provides reliable radial load support in demanding industrial environments.

In automotive applications, 1206-K C/3 Bearing fits well in wheel hubs and transmission systems, offering smooth rotation even under varying loads. The tapered bore ensures a secure fit, reducing slippage during operation.

For automation equipment, 1206-K C/3 Bearing’s nylon cage reduces friction, making it suitable for high-speed robotic arms. The open seal design allows for easy lubrication, extending its service life.

Where Is 1206-K C/3 Bearing Used?
You’ll often find 1206-K C/3 Bearing in agricultural machinery, where its ability to handle misalignment is a big advantage. The chrome steel construction ensures durability in dusty or humid conditions.

In household appliances like washing machines, 1206-K C/3 Bearing provides quiet and efficient performance. Its metric sizing makes it compatible with a wide range of European-designed appliances.
