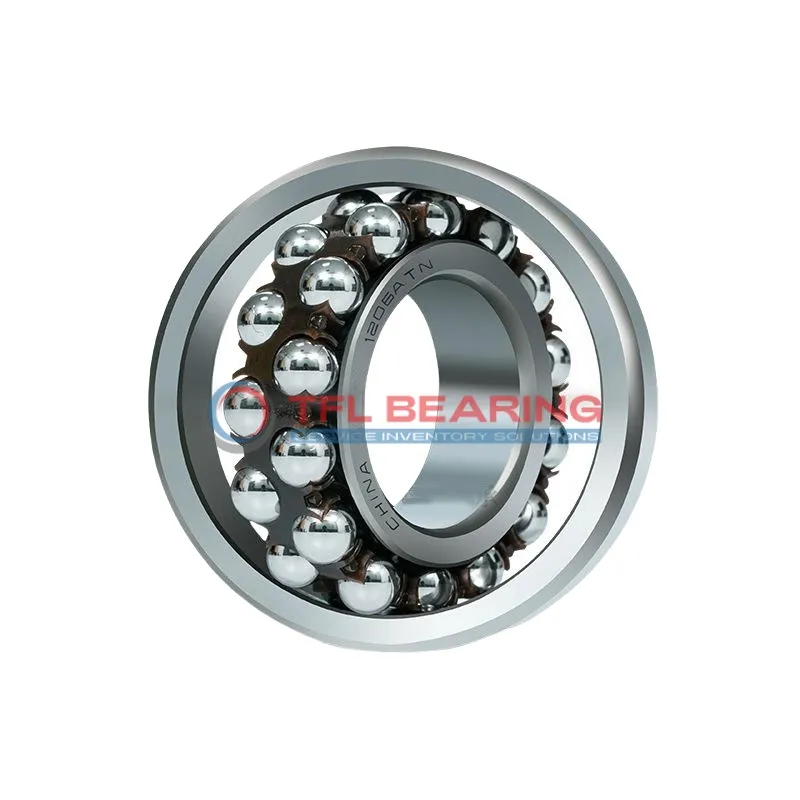

Self Aligning Ball Bearings 1204 C/3

Brand: TFL Bearing Interchangeable: SKF 1204 C/3 20 mm × 47 mm × 14 mm Metric Open
Part number: 1204 C/3
Self Aligning Ball Bearings 1204 C/3
In Stock
US$13.07 / piece
Reference price · volume pricing on request
Get a Quote WhatsApp
  • ISO 9001 quality system
  • RoHS & REACH compliant
  • Pre-shipment inspection
  • Lead time confirmed with your quote
Dimensions
Bore Dia20 mm
Bore Dia Tolerance-0.01mm to 0
Outer Dia47 mm
Outer Dia Tolerance-0.011mm to 0
Width14 mm
Width Tolerance-0.12mm to 0
External Diameter On Inner Ring28.88 mm
Internal Diameter On Outer Ring40 mm
Chamfer Dimension1 mm
Performance
Dynamic Radial Load2,858 lbf
Static Radial Load765 lbf
Temperature Range-30° to 110 °C
Max Speed20,000 rpm
Characteristics
System of MeasurementMetric
Bearing TypeBall
Bore TypeCylindrical
For Load DirectionRadial
ConstructionDouble Row
Seal TypeOpen
LubricationLubricated
Radial ClearanceCN
Weight0.12 kg
Material
Ring MaterialChrome Steel
Ball MaterialChrome Steel
Cage MaterialNylon
Compliance
RoHSCompliant
REACHCompliant
Dimension drawing · click to enlarge

Description

The 1204 C/3 is a self-aligning ball bearing with a 20mm bore and 47mm outer diameter, crafted from sturdy chrome steel. It handles radial loads up to 2858 lbf and spins smoothly at speeds up to 20,000 RPM.

Its double-row design and open seal make it easy to maintain, while the nylon cage reduces friction for quieter operation. The bearing performs reliably in temperatures from -30°C to 110°C.

This model is interchangeable with SKF bearings, offering a practical replacement option. Ideal for applications like conveyor systems or electric motors where misalignment might occur.

Weighing just 0.12kg, it’s lightweight yet durable. Compliant with RoHS and REACH standards for safe and eco-friendly use.

Features

Performance Features of 1204 C/3 Bearing

1204 C/3 Bearing is built with chrome steel rings and balls, offering strong resistance to radial loads.
Its dynamic radial load capacity reaches 2858 lbf, ensuring steady performance in various applications.

The double-row design of 1204 C/3 Bearing enhances load distribution, reducing stress on individual components.
Nylon cage material helps maintain smooth operation while minimising noise and vibration.

With a maximum speed of 20,000 rpm, 1204 C/3 Bearing balances speed and durability effectively.
Its open seal type allows for easy lubrication, ensuring consistent performance over time.

1204 C/3 Bearing operates efficiently in temperatures ranging from -30° to 110°C.
The cylindrical bore design simplifies installation, making it a practical choice for many setups.

Application

Common Applications of 1204 C/3 Bearing
1204 C/3 Bearing is widely used in industrial equipment like conveyor systems and fans, thanks to its self-aligning feature that compensates for minor misalignments.
The double-row design ensures reliable performance under radial loads, making it a go-to choice for machinery requiring smooth rotation.

Where Is 1204 C/3 Bearing Used?
In automotive applications, 1204 C/3 Bearing fits well in components such as alternators and pumps, where its nylon cage reduces noise and vibration.
Its metric sizing makes it compatible with various vehicle models, ensuring easy replacement and maintenance.

Built for Versatility: 1204 C/3 Bearing
For automation and robotics, 1204 C/3 Bearing offers precise movement in robotic arms and 3D printers.
The chrome steel construction provides durability, while the open seal allows for easy lubrication in high-speed operations.

Industrial vs Automotive: Performance of 1204 C/3 Bearing
In industrial settings, 1204 C/3 Bearing handles heavy radial loads in machinery like gearboxes and compressors.
Meanwhile, in automotive systems, it ensures smooth operation in steering columns and transmission systems, thanks to its robust design.

Essential Roles of 1204 C/3 Bearing
1204 C/3 Bearing is a reliable choice for medical devices like centrifuges, where consistent performance is critical.
The wide temperature range and lubricated design make it suitable for both high and low-speed applications in various environments.
