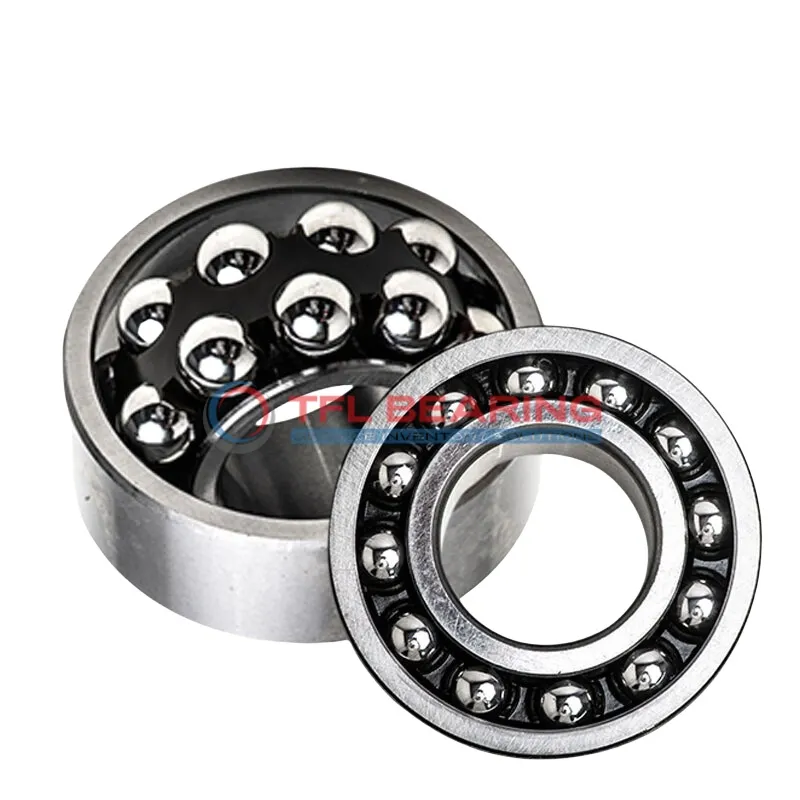

Self Aligning Ball Bearings 1200TNH

Self Aligning Ball Bearings 1200TNH

The 1200TNH is a compact self-aligning ball bearing with a 10mm bore and 30mm outer diameter, crafted from sturdy chrome steel. It manages radial loads up to 1244 lbf and spins smoothly at speeds up to 36,000 RPM.

Its double-row design and open construction allow for easy alignment and maintenance, while the nylon cage reduces friction for quieter operation. The bearing operates well in temperatures from -30°C to 110°C.

This model is interchangeable with SKF bearings, making it a practical choice for replacements. Suitable for applications like electric motors or conveyor systems where slight misalignments may occur.

Weighing just 0.034kg, it’s lightweight yet durable. Compliant with RoHS and REACH standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 1200TNH
  • Brand TFL & OEM
  • Interchangeable SKF
  • Bore Dia 10 mm
  • Bore Dia Tolerance -0.008mm to 0
  • Outer Dia 30 mm
  • Outer Dia Tolerance -0.009mm to 0
  • Width 9 mm
  • Width Tolerance -0.12mm to 0
  • External Diameter On Inner Ring 16.5 mm
  • Internal Diameter On Outer Ring 23.5 mm
  • Chamfer Dimension 0.6 mm
  • System of Measurement Metric
  • Bearing Type Ball
  • Bore Type Cylindrical
  • For Load Direction Radial
  • Construction Double Row
  • Seal Type Open
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Nylon
  • Dynamic Radial Load 1244 lbf
  • Static Radial Load 266 lbf
  • Lubrication Lubricated
  • Temperature Range -30° to 110 °C
  • Radial Clearance CN
  • RoHS Compliant
  • REACH Compliant
  • Max Speed 36000 rpm
  • Weight 0.034 kg
Self Aligning Ball Bearings 1200TNH dimension drawing
Download DWG Download PDF

Features

How Does 1200TNH Bearing Reduce Friction?

1200TNH Bearing features a double-row ball design with chrome steel rings and balls, ensuring smooth radial load distribution.
Its nylon cage minimises friction, allowing for quieter operation and reduced energy consumption.
The bearing’s open seal type and lubrication system help maintain performance even at high speeds up to 36,000 rpm.
With a compact size of 10 mm×30 mm×9 mm, it fits seamlessly into various applications.

Application

Industrial Uses of 1200TNH Bearing
1200TNH Bearing is commonly used in conveyor systems, where its self-aligning feature compensates for minor misalignments. The double-row design ensures stable performance even under varying radial loads.

What Makes 1200TNH Bearing a Preferred Choice?
In automotive applications like electric motors, 1200TNH Bearing offers smooth operation thanks to its nylon cage. The metric sizing makes it easy to integrate into both European and Asian vehicle designs.

Perfect Fit for Automation: 1200TNH Bearing
For robotic arms, 1200TNH Bearing provides reliable movement with its chrome steel construction. Its high-speed capability (up to 36,000 rpm) ensures efficiency in automated production lines.

Medical vs Industrial: Where 1200TNH Bearing Excels
In medical devices like lab equipment, 1200TNH Bearing’s precision is crucial for accurate results. Meanwhile, in industrial fans, its durability handles continuous operation without issues.

Light-Duty vs Heavy-Duty: Best Uses for 1200TNH Bearing
For light-duty applications like printers, 1200TNH Bearing’s compact size is ideal. In heavier machinery, its dynamic load capacity (1244 lbf) ensures long-lasting performance.
