Self Aligning Ball Bearings 11208 TN9

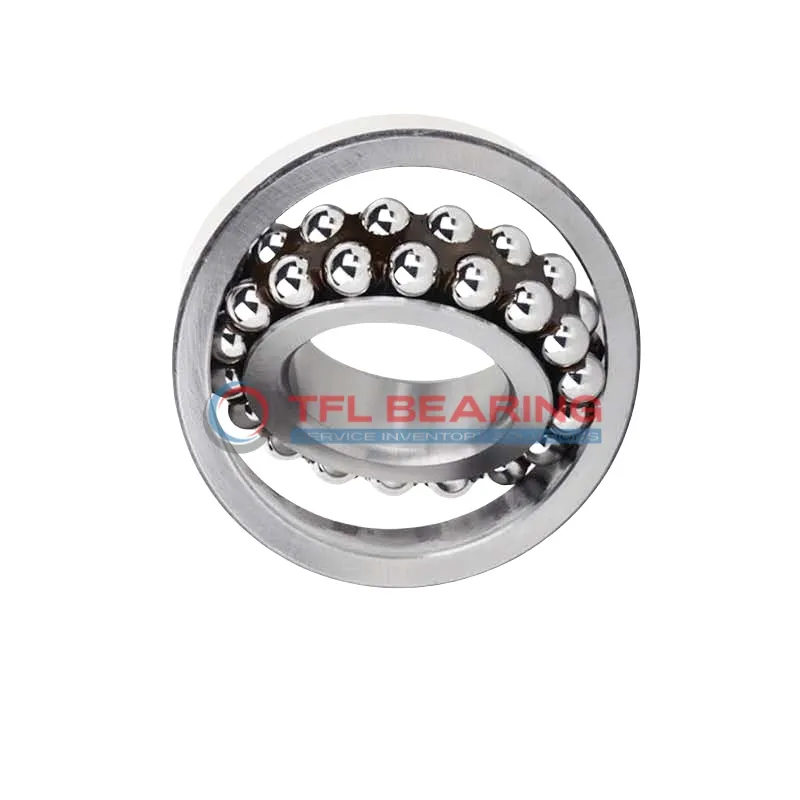

Self Aligning Ball Bearings 11208 TN9

The 11208 TN9 is a self-aligning ball bearing with a 40mm bore and 80mm outer diameter, crafted from sturdy chrome steel. It manages radial loads up to 4275 lbf and operates smoothly at speeds up to 5000 RPM.

Its double-row design and nylon cage help it adapt to slight misalignments while reducing friction. The open seal allows for easy lubrication, extending its lifespan in demanding conditions.

This bearing suits applications like conveyor systems or agricultural machinery where alignment flexibility is key. It works reliably in temperatures from -30°C to 110°C.

Weighing 0.72kg, it’s a robust yet manageable choice for industrial use. Compliant with RoHS and REACH standards, it’s interchangeable with SKF models for easy replacement.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 11208 TN9
  • Brand TFL & OEM
  • Interchangeable SKF
  • Bore Dia 40 mm
  • Bore Dia Tolerance -0.012mm to 0
  • Outer Dia 80 mm
  • Outer Dia Tolerance -0.013mm to 0
  • Width 56 mm
  • Width Tolerance -0.12mm to 0
  • External Diameter On Inner Ring 54 mm
  • Internal Diameter On Outer Ring 67.5 mm
  • Chamfer Dimension 1.1 mm
  • System of Measurement Metric
  • Bearing Type Ball
  • For Load Direction Radial
  • Construction Double Row
  • Seal Type Open
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Nylon
  • Dynamic Radial Load 4275 lbf
  • Static Radial Load 1474 lbf
  • Lubrication Lubricated
  • Temperature Range -30° to 110 °C
  • RoHS Compliant
  • REACH Compliant
  • Max Speed 5000 rpm
  • Weight 0.72 kg
  • Price（$） 40.97
Self Aligning Ball Bearings 11208 TN9 dimension drawing
Download DWG Download PDF

Features

How Does 11208 TN9 Bearing Reduce Friction?

11208 TN9 Bearing features chrome steel rings and balls, ensuring smooth operation with minimal friction.
Its nylon cage helps maintain ball alignment, reducing wear and enhancing efficiency.
The double-row design distributes radial loads evenly, improving performance under stress.
With a maximum speed of 5,000 rpm, it offers reliable service in various applications.

Application

Industrial Uses of 11208 TN9 Bearing
11208 TN9 Bearing is commonly used in conveyor systems and material handling equipment, where its self-aligning feature compensates for minor misalignments. The double-row design provides reliable radial load support in demanding environments.

Where Is 11208 TN9 Bearing Used?
You’ll often find 11208 TN9 Bearing in agricultural machinery, such as grain conveyors, where its nylon cage reduces friction and noise. Its metric sizing makes it a versatile choice for various European and Asian equipment.

Built for Heavy-Duty Use: 11208 TN9 Bearing
11208 TN9 Bearing handles radial loads effortlessly in industrial fans and blowers, thanks to its chrome steel construction. The open design allows for easy relubrication, extending its service life in high-use applications.

Automotive vs Industrial: Applications of 11208 TN9 Bearing
In automotive applications, 11208 TN9 Bearing supports auxiliary components like alternators, while in industrial settings, it excels in pumps and compressors. Its temperature range suits both moderate and high-heat environments.

Perfect Fit for Automation: 11208 TN9 Bearing
11208 TN9 Bearing works well in robotic arms and assembly line equipment, where smooth rotation is essential. The self-aligning capability ensures consistent performance even with slight mounting inaccuracies.
