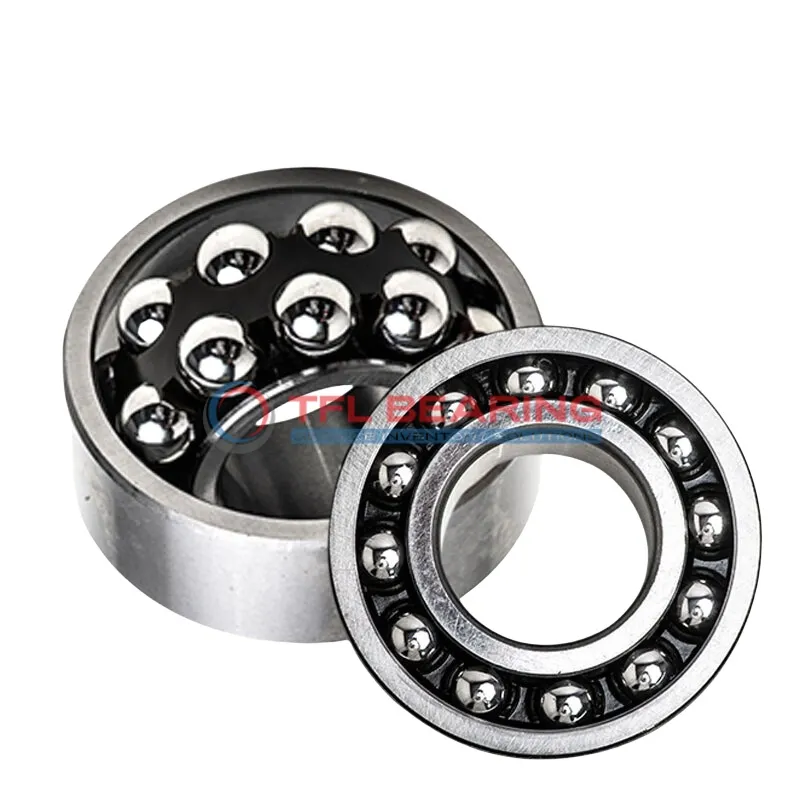

Self Aligning Ball Bearings 108-TVH-C3

Self Aligning Ball Bearings 108-TVH-C3

The 108-TVH-C3 is a compact self-aligning ball bearing with an 8mm bore and 22mm outer diameter, crafted from sturdy chrome steel. It handles radial loads up to 596 lbf and reaches speeds of 40,000 RPM, making it a versatile choice.

Its double-row design and open seal allow for smooth operation and easy maintenance. The nylon cage reduces friction, enhancing durability in various conditions.

This bearing is interchangeable with SKF models, offering a reliable replacement option. Ideal for applications like small motors or conveyors where alignment flexibility is needed.

Weighing just 0.014kg, it’s lightweight yet robust. Compliant with RoHS and REACH standards, it operates efficiently in temperatures from -30°C to 110°C.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 108-TVH-C3
  • Brand TFL & OEM
  • Interchangeable SKF
  • Bore Dia 8 mm
  • Bore Dia Tolerance -0.008mm to 0
  • Outer Dia 22 mm
  • Outer Dia Tolerance -0.009mm to 0
  • Width 7 mm
  • Width Tolerance -0.12mm to 0
  • External Diameter On Inner Ring 12.709 mm
  • Internal Diameter On Outer Ring 17.6 mm
  • Chamfer Dimension 0.3 mm
  • System of Measurement Metric
  • Bearing Type Ball
  • Bore Type Cylindrical
  • For Load Direction Radial
  • Construction Double Row
  • Seal Type Open
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Nylon
  • Dynamic Radial Load 596 lbf
  • Static Radial Load 126 lbf
  • Lubrication Lubricated
  • Temperature Range -30° to 110 °C
  • Radial Clearance C3
  • RoHS Compliant
  • REACH Compliant
  • Max Speed 40000 rpm
  • Weight 0.014 kg
  • Price（$） 4.67
Self Aligning Ball Bearings 108-TVH-C3 dimension drawing
Download DWG Download PDF

Features

How Does 108-TVH-C3 Bearing Reduce Friction?

108-TVH-C3 Bearing features a double-row design with chrome steel rings and balls, ensuring smooth radial load distribution.
Its nylon cage minimises friction, allowing for quieter operation and reduced energy consumption.
The C3 radial clearance provides optimal performance under varying thermal conditions.
With a maximum speed of 40,000 rpm, it delivers efficiency in high-speed applications.

Application

Where Is 108-TVH-C3 Bearing Used?
In industrial settings, 108-TVH-C3 Bearing is commonly used in conveyor systems and light machinery, thanks to its self-aligning feature that compensates for minor misalignments. The open design and nylon cage make it suitable for environments where regular lubrication is possible.

For automotive applications, 108-TVH-C3 Bearing fits well in small electric motors and auxiliary units, where its compact size and radial load capacity are advantageous. The C3 clearance ensures reliable performance even with thermal expansion.

In consumer electronics like printers and small appliances, 108-TVH-C3 Bearing’s low noise and smooth operation enhance device longevity. Its metric dimensions align with standard components used in European and Asian markets.
