RE Crossed Roller Bearings RE8016UU

RE Crossed Roller Bearings RE8016UU

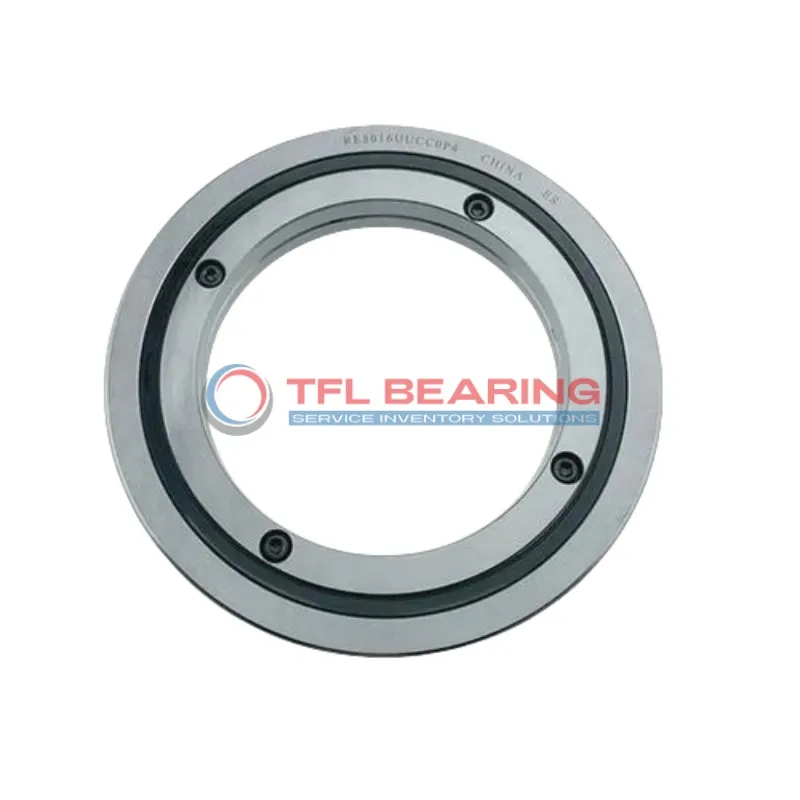

The RE8016UU is a crossed roller bearing with an 80mm bore and 120mm outer diameter, crafted from sturdy steel for combined load handling. It measures 16mm wide and features double seals to keep dirt out.

With a basic load rating of 30.1 kN, it supports substantial weight while maintaining smooth rotation. The bearing operates well in temperatures from 0°C to 110°C, making it versatile for various settings.

Its press-fit shaft mount ensures a secure installation, and the 3mm greasing holes simplify maintenance. The ABEC5 rating (with options for higher precision) guarantees reliable performance.

Ideal for rotary tables or robotic arms, this 0.7kg unit balances strength with compact design. Compliant with RoHS and REACH standards, it’s a safe choice for industrial applications.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number RE8016UU
  • Brand TFL
  • Size 80 mm x 120 mm x 16 mm
  • System of Measurement Metric
  • Bearing Type Roller
  • Roller Bearing Type Crossed
  • For Load Direction Combined
  • Construction Single Row
  • Seal Type Double Seal
  • Bore Dia 80 mm
  • Outer Dia 120 mm
  • Width 16 mm
  • Greasing Hole(a) 3 mm
  • Greasing Hole(b) 1.6 mm
  • R(min) 0.6 mm
  • Shoulder Height Ds(max) 91 mm
  • Shoulder Height Dh(min) 111 mm
  • Holes Without Holes
  • Ring Material Steel
  • Roller Material Steel
  • Basic Load Rating C 30.1 kN
  • Basic Load Rating Co 42.1 kN
  • Lubrication Required
  • Shaft Mount Type Press Fit
  • Temperature Range 0 -230 °F
  • ABEC Rating ABEC5(Available in ABEC7/9)
  • RoHS Compliant
  • REACH Compliant
  • Weight 0.7 Kg

Features

How Is RE8016UU Bearing Engineered for Reliability?

RE8016UU Bearing features a crossed roller design, ideal for handling combined loads with precision.
Its steel rings and rollers provide a basic load rating of 30.1 kN, ensuring durability under stress.

The double-sealed construction protects against contaminants, extending its operational life.
With a temperature range of 0-230°F, RE8016UU Bearing performs reliably in varied conditions.

Press-fit shaft mounting simplifies installation, reducing setup time and effort.
ABEC5 rating ensures high precision, with options for ABEC7/9 for specialised applications.

Application

Industrial Uses of RE8016UU Bearing
RE8016UU Bearing is commonly used in machine tools, where its crossed roller design provides excellent precision for rotary tables and indexing heads. The double seal helps keep contaminants out, ensuring long service life in dusty workshop environments.

Where Is RE8016UU Bearing Used?
You’ll often find RE8016UU Bearing in robotic arms, thanks to its ability to handle combined loads smoothly. The press-fit mounting makes installation straightforward, while the steel construction ensures durability in continuous operation.

Perfect Fit for Automation: RE8016UU Bearing
RE8016UU Bearing works well in 3D printers, offering stable movement for the print head. Its compact 16mm width fits neatly into tight spaces, and the ABEC5 rating guarantees reliable performance for detailed printing tasks.

Medical vs Industrial: Where RE8016UU Bearing Excels
In medical imaging devices, RE8016UU Bearing’s precision helps maintain accurate positioning for scans. For industrial applications, its 30.1 kN load rating makes it suitable for heavy-duty machinery requiring both radial and axial support.

Essential Roles of RE8016UU Bearing
RE8016UU Bearing is a go-to choice for conveyor systems needing smooth, low-friction rotation. The grease lubrication ports allow easy maintenance, extending bearing life even in high-temperature environments up to 230°F.
