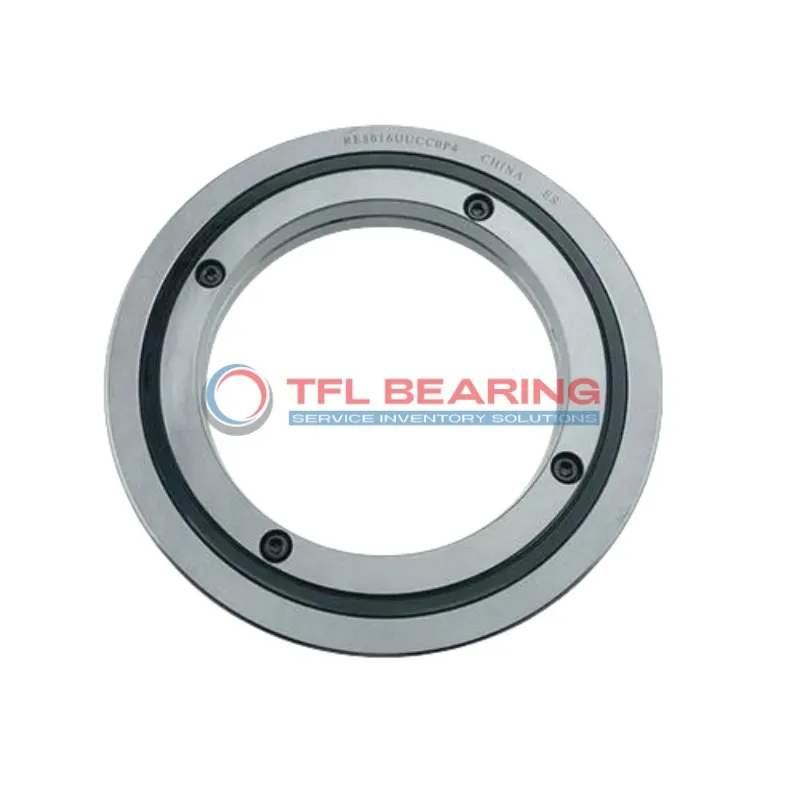

RE Crossed Roller Bearings RE4010UU

RE Crossed Roller Bearings RE4010UU

The RE4010UU is a compact crossed roller bearing measuring 40mm by 65mm by 10mm, made from sturdy steel for reliable performance. It handles combined loads up to 8.33 kN and is designed for precision applications.

With double seals, it keeps contaminants out while retaining lubrication, making maintenance easier. The bearing operates smoothly in temperatures from 0°C to 110°C, suitable for various industrial settings.

Its press-fit shaft mount ensures a secure installation, and the ABEC5 rating (also available in higher grades) guarantees precise movement. Ideal for robotics, medical equipment, or any application requiring high accuracy.

Weighing just 0.16kg, it’s lightweight yet durable. Compliant with RoHS and REACH standards, it’s a safe choice for demanding environments.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number RE4010UU
  • Brand TFL
  • Size 40 mm x 65 mm x 10 mm
  • System of Measurement Metric
  • Bearing Type Roller
  • Roller Bearing Type Crossed
  • For Load Direction Combined
  • Construction Single Row
  • Seal Type Double Seal
  • Bore Dia 40 mm
  • Outer Dia 65 mm
  • Width 10 mm
  • Greasing Hole(a) 2.5 mm
  • Greasing Hole(b) 1 mm
  • R(min) 0.6 mm
  • Shoulder Height Ds(max) 47.5 mm
  • Shoulder Height Dh(min) 58.5 mm
  • Holes Without Holes
  • Ring Material Steel
  • Roller Material Steel
  • Basic Load Rating C 8.33 kN
  • Basic Load Rating Co 10.6 kN
  • Lubrication Required
  • Shaft Mount Type Press Fit
  • Temperature Range 0 -230 °F
  • ABEC Rating ABEC5(Available in ABEC7/9)
  • RoHS Compliant
  • REACH Compliant
  • Weight 0.16 Kg

Features

How Does RE4010UU Bearing Handle Combined Loads?

RE4010UU Bearing features a crossed roller design, ideal for handling combined radial and axial loads efficiently.
Its steel rollers and rings provide a basic load rating of 8.33 kN, ensuring reliable performance in various applications.

The double seal design protects against contaminants, extending the bearing’s service life.
With a temperature range of 0-230°F, RE4010UU Bearing performs well in diverse operating conditions.

Press-fit shaft mounting simplifies installation, reducing setup time.
ABEC5 precision rating ensures smooth operation, with options for higher precision (ABEC7/9) available.

Application

Industrial Uses of RE4010UU Bearing
RE4010UU Bearing is commonly used in machine tools, where its crossed roller design provides excellent rigidity and precision for rotary tables. The double seal helps keep contaminants out, ensuring long service life in demanding environments.

Where Is RE4010UU Bearing Used?
In automation systems, RE4010UU Bearing supports robotic arms, offering smooth rotation and high load capacity. Its compact 40x65x10 mm size makes it ideal for space-constrained applications.

Built for Heavy-Duty Use: RE4010UU Bearing
This bearing handles combined loads effortlessly, making it suitable for medical imaging equipment that requires both radial and axial support. The steel construction ensures durability in continuous operation.

Automotive vs Aerospace: Applications of RE4010UU Bearing
In automotive testing rigs, RE4010UU Bearing provides precise motion control, while in aerospace simulators, its ABEC5 rating ensures accurate positioning. The press-fit mounting simplifies installation in both fields.

Perfect Fit for Automation: RE4010UU Bearing
RE4010UU Bearing works well in 3D printers, where its low friction and high accuracy improve print quality. The required lubrication is minimal, reducing maintenance needs for busy workshops.
