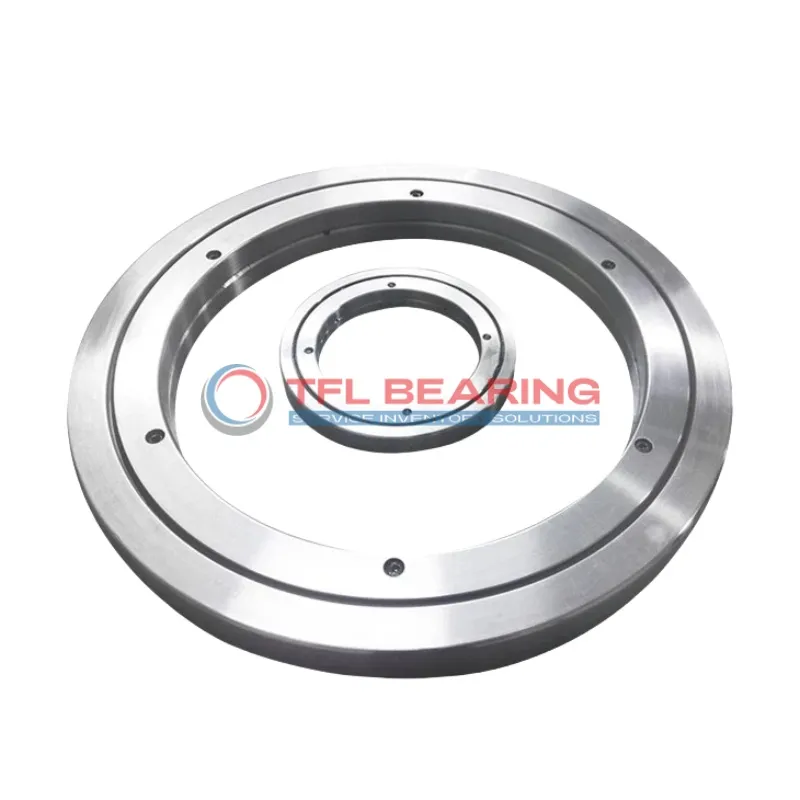

RE Crossed Roller Bearings RE19025

RE Crossed Roller Bearings RE19025

The RE19025 is a crossed roller bearing with a 190mm bore and 240mm outer diameter, crafted from sturdy steel for reliable performance. It handles combined loads up to 41.7 kN and is designed for press-fit mounting.

Its open construction allows easy lubrication through 3.5mm and 1.6mm greasing holes, ensuring smooth operation. The bearing operates well in temperatures ranging from 0°F to 230°F.

With an ABEC5 rating (also available in ABEC7/9), it offers precision for demanding applications. The single-row design provides stability while keeping the width compact at just 25mm.

Ideal for industrial machinery or robotics where combined loads and precision are key. Compliant with RoHS and REACH standards, it weighs 2.99kg for easy handling.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number RE19025
  • Brand TFL
  • Size 190 mm x 240 mm x 25 mm
  • System of Measurement Metric
  • Bearing Type Roller
  • Roller Bearing Type Crossed
  • For Load Direction Combined
  • Construction Single Row
  • Seal Type Open
  • Bore Dia 190 mm
  • Outer Dia 240 mm
  • Width 25 mm
  • Greasing Hole(a) 3.5 mm
  • Greasing Hole(b) 1.6 mm
  • R(min) 1 mm
  • Shoulder Height Ds(max) 207 mm
  • Shoulder Height Dh(min) 229 mm
  • Holes Without Holes
  • Ring Material Steel
  • Roller Material Steel
  • Basic Load Rating C 41.7 kN
  • Basic Load Rating Co 82.9 kN
  • Lubrication Required
  • Shaft Mount Type Press Fit
  • Temperature Range 0 -230 °F
  • ABEC Rating ABEC5(Available in ABEC7/9)
  • RoHS Compliant
  • REACH Compliant
  • Weight 2.99 Kg

Features

Performance Features of RE19025 Bearing

RE19025 Bearing is built with a single-row crossed roller design, ideal for handling combined loads efficiently.
Its steel rings and rollers provide a basic load rating of 41.7 kN, ensuring robust performance.

The open seal type allows for easy lubrication, enhancing operational smoothness.
With a temperature range of 0-230°F, it performs reliably in various conditions.

RE19025 Bearing’s press-fit shaft mount ensures secure installation and stability.
The ABEC5 rating guarantees precision, with options for higher ABEC7/9 grades if needed.

Weighing just 2.99 kg, it offers a balance of strength and portability.
Its compact dimensions (190x240x25 mm) make it suitable for space-constrained applications.

Application

Industrial Uses of RE19025 Bearing
RE19025 Bearing is commonly used in machine tools, where its crossed roller design provides excellent stability for rotary tables and indexing heads. The press-fit mounting ensures a secure installation in high-precision applications.

Where Is RE19025 Bearing Used?
You’ll often find RE19025 Bearing in robotics, particularly in articulated arms that require smooth, precise movement. Its steel construction handles combined loads effortlessly, making it ideal for automated assembly lines.

Built for Heavy-Duty Use: RE19025 Bearing
RE19025 Bearing excels in industrial gearboxes, where its high load capacity and ABEC5 precision ensure reliable performance. The open design allows for easy lubrication, extending its service life in demanding conditions.

Automotive vs Aerospace: Applications of RE19025 Bearing
In automotive testing rigs, RE19025 Bearing supports dynamic load simulations with consistent accuracy. For aerospace applications, its temperature resilience makes it suitable for flight control systems.

Perfect Fit for Automation: RE19025 Bearing
RE19025 Bearing is a go-to choice for CNC machinery, where its low friction and high rigidity improve cutting accuracy. The metric dimensions simplify integration into European and Asian equipment designs.
