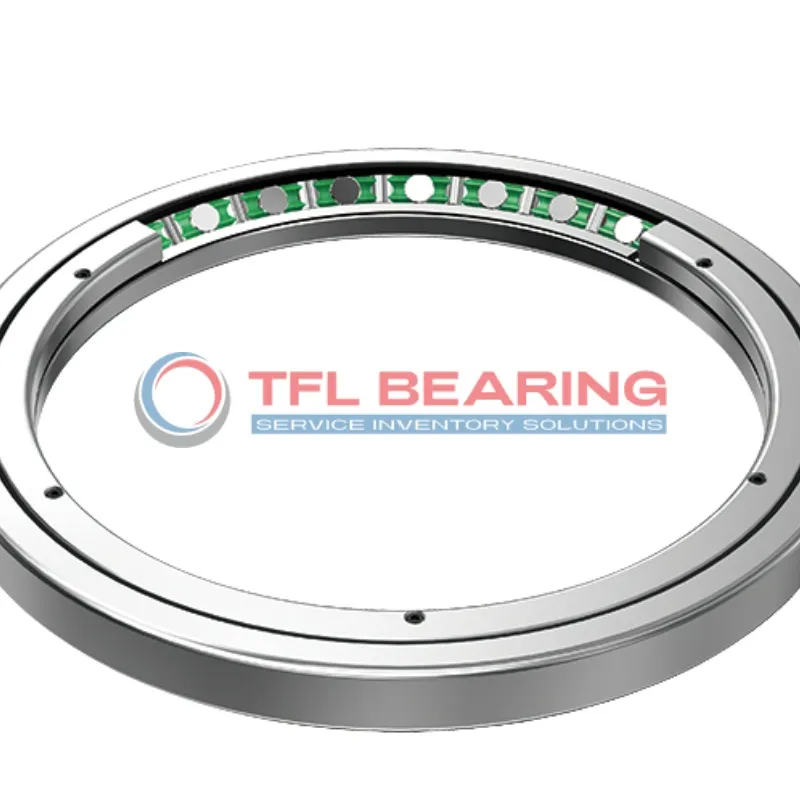

RE Crossed Roller Bearings RE12016

RE Crossed Roller Bearings RE12016

The RE12016 is a crossed roller bearing measuring 120mm by 150mm with a 16mm width, crafted from sturdy steel for combined load handling. It supports loads up to 24.2 kN and operates smoothly in temperatures from 0°C to 110°C.

Its open design and press-fit shaft mounting make installation straightforward, while the ABEC5 precision ensures reliable performance. The bearing includes greasing holes for easy maintenance.

This model is ideal for applications requiring high precision, such as robotics or medical equipment. Its compact size and robust construction make it a versatile choice.

Compliant with RoHS and REACH standards, it weighs just 0.72kg, balancing durability and portability.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number RE12016
  • Brand TFL
  • Size 120 mm x 150 mm x 16 mm
  • System of Measurement Metric
  • Bearing Type Roller
  • Roller Bearing Type Crossed
  • For Load Direction Combined
  • Construction Single Row
  • Seal Type Open
  • Bore Dia 120 mm
  • Outer Dia 150 mm
  • Width 16 mm
  • Greasing Hole(a) 3 mm
  • Greasing Hole(b) 1.6 mm
  • R(min) 0.6 mm
  • Shoulder Height Ds(max) 127 mm
  • Shoulder Height Dh(min) 143 mm
  • Holes Without Holes
  • Ring Material Steel
  • Roller Material Steel
  • Basic Load Rating C 24.2 kN
  • Basic Load Rating Co 43.2 kN
  • Lubrication Required
  • Shaft Mount Type Press Fit
  • Temperature Range 0 -230 °F
  • ABEC Rating ABEC5(Available in ABEC7/9)
  • RoHS Compliant
  • REACH Compliant
  • Weight 0.72 Kg

Features

How Is RE12016 Bearing Engineered for Reliability?

RE12016 Bearing features a crossed roller design, ideal for handling combined loads with precision.
Its steel rings and rollers provide a basic load rating of 24.2 kN, ensuring dependable performance.

The press-fit shaft mount type simplifies installation, reducing setup time and effort.
With a temperature range of 0-230°F, RE12016 Bearing operates reliably in various conditions.

Lubrication is required to maintain smooth operation and extend the bearing’s service life.
The open seal design allows for easy maintenance and re-lubrication when needed.

RE12016 Bearing meets ABEC5 standards, with options for higher precision in ABEC7/9.
Its compact 16 mm width makes it suitable for applications with limited space.

Application

Industrial Uses of RE12016 Bearing
RE12016 Bearing is commonly used in machine tools, where its crossed roller design provides excellent stability for rotary tables and indexing heads. The steel construction ensures it can handle combined loads with ease.

What Makes RE12016 Bearing a Preferred Choice?
In robotics, RE12016 Bearing offers precise motion control for robotic arms and joints, thanks to its ABEC5 rating. The open seal design allows for easy lubrication, extending its service life.

Optimized for Performance: RE12016 Bearing
For medical imaging devices, RE12016 Bearing’s high load capacity and accuracy make it suitable for CT scanners and MRI machines. The press-fit shaft mount ensures secure installation in critical applications.

Automotive vs Aerospace: Applications of RE12016 Bearing
In automotive steering systems, RE12016 Bearing provides reliable performance under combined loads. Its compact width of 16mm makes it ideal for space-constrained aerospace components as well.

Where Is RE12016 Bearing Used?
You’ll often find RE12016 Bearing in 3D printers, where its precision and low friction are key for smooth print head movement. The temperature range up to 230°F ensures consistent operation in various environments.
