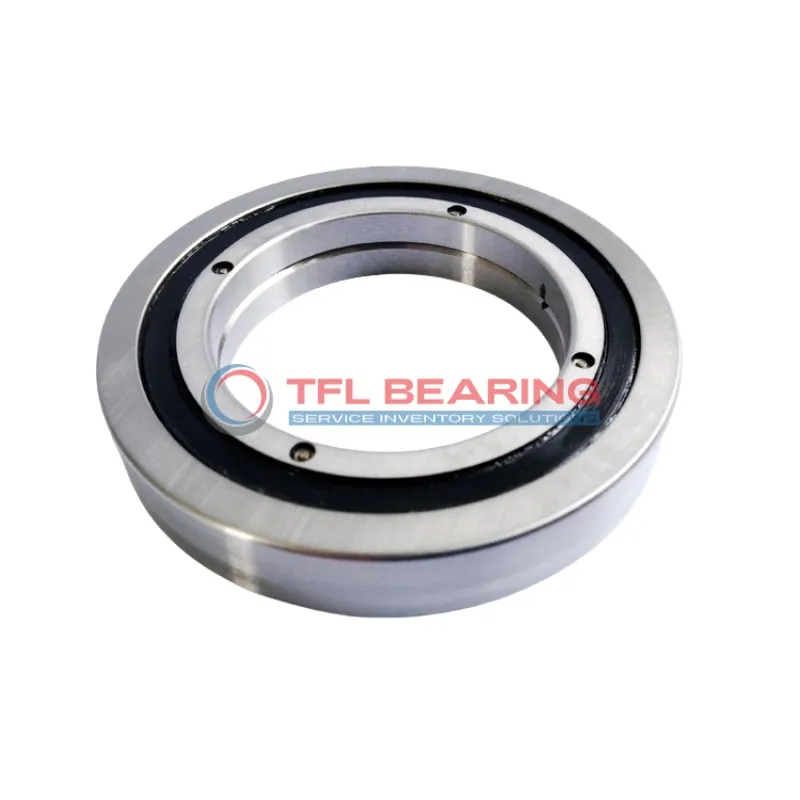

RE Crossed Roller Bearings RE11020UU

RE Crossed Roller Bearings RE11020UU

The RE11020UU is a crossed roller bearing with a 110mm bore and 160mm outer diameter, crafted from sturdy steel for reliable performance. It handles combined loads up to 34 kN and operates smoothly in temperatures from 0°C to 110°C.

Its double-seal design keeps contaminants out while retaining lubrication, making it low-maintenance. The press-fit shaft mount ensures a secure installation, ideal for precision applications.

With ABEC5 precision (upgradable to ABEC7/9), this bearing suits high-accuracy needs like robotics or medical equipment. The greasing holes (3.5mm and 1.6mm) simplify lubrication.

Weighing 1.56kg, it balances durability and compactness. Compliant with RoHS and REACH standards, it’s a versatile choice for industrial and technical uses.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number RE11020UU
  • Brand TFL
  • Size 110 mm x 160 mm x 20 mm
  • System of Measurement Metric
  • Bearing Type Roller
  • Roller Bearing Type Crossed
  • For Load Direction Combined
  • Construction Single Row
  • Seal Type Double Seal
  • Bore Dia 110 mm
  • Outer Dia 160 mm
  • Width 20 mm
  • Greasing Hole(a) 3.5 mm
  • Greasing Hole(b) 1.6 mm
  • R(min) 1 mm
  • Shoulder Height Ds(max) 125 mm
  • Shoulder Height Dh(min) 147 mm
  • Holes Without Holes
  • Ring Material Steel
  • Roller Material Steel
  • Basic Load Rating C 34 kN
  • Basic Load Rating Co 54 kN
  • Lubrication Required
  • Shaft Mount Type Press Fit
  • Temperature Range 0 -230 °F
  • ABEC Rating ABEC5(Available in ABEC7/9)
  • RoHS Compliant
  • REACH Compliant
  • Weight 1.56 Kg

Features

How Does RE11020UU Bearing Handle Combined Loads?

RE11020UU Bearing features a crossed roller design, providing stability under combined loads.
Its steel rings and rollers offer a basic load rating of 34 kN, ensuring reliable performance.

The double-sealed construction keeps contaminants out, extending the bearing’s service life.
With a temperature range of 0-230°F, it performs well in various operating conditions.

RE11020UU Bearing’s press-fit shaft mount simplifies installation, reducing downtime.
Its ABEC5 precision rating ensures smooth operation for demanding applications.

Application

Industrial Uses of RE11020UU Bearing
RE11020UU Bearing is commonly used in machine tools and robotic arms, where its crossed roller design handles combined loads efficiently. The double seal helps keep contaminants out, ensuring longer service life in dusty environments.

What Makes RE11020UU Bearing a Preferred Choice?
With its press-fit shaft mounting, RE11020UU Bearing simplifies installation in automation systems like conveyor belts. The steel construction provides reliable performance even under continuous operation.

Perfect Fit for Automation: RE11020UU Bearing
In 3D printers and CNC machines, RE11020UU Bearing offers precise movement thanks to its ABEC5 rating. The grease lubrication ensures smooth operation over extended periods.

Medical vs Industrial: Where RE11020UU Bearing Excels
While RE11020UU Bearing performs well in industrial robots, its precision also suits medical imaging devices. The temperature range of 0-230°F makes it versatile for various applications.
