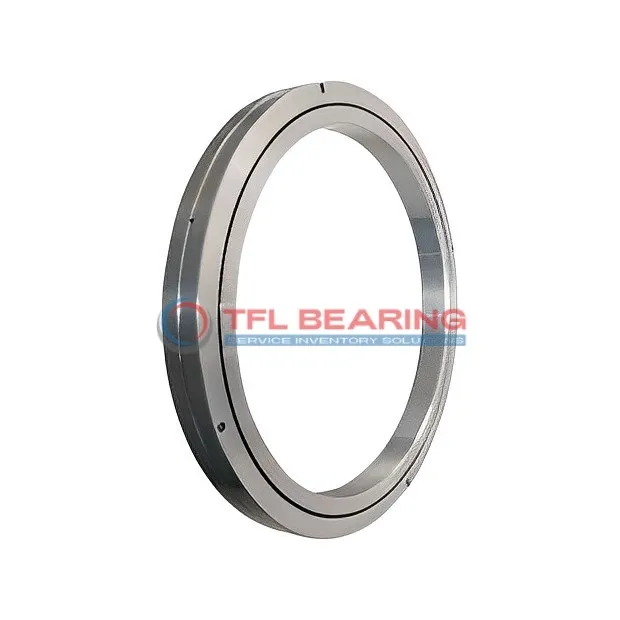

RB Crossed Roller Bearings RB7013

RB Crossed Roller Bearings RB7013

The RB7013 is a crossed roller bearing with a compact size of 70mm by 100mm by 13mm, crafted from sturdy steel for reliable performance. It handles combined loads up to 19.4 kN and is designed for press-fit mounting, ensuring a secure fit.

Its open construction allows for easy lubrication, while the crossed roller design provides smooth rotation under heavy loads. The bearing operates well in temperatures ranging from 0°C to 110°C, making it versatile for various conditions.

With an ABEC5 rating (and options for higher precision), it’s suitable for applications requiring accuracy, such as robotics or machine tools. Compliant with RoHS and REACH standards, it’s a safe and durable choice.

Weighing just 0.35kg, it’s lightweight yet robust, ideal for space-constrained setups where precision and strength are key.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number RB7013
  • Brand TFL
  • size 70 mm x 100 mm x 13 mm
  • System of Measurement Metric
  • Bearing Type Roller
  • Roller Bearing Type Crossed
  • For Load Direction Combined
  • Construction Single Row
  • Seal Type Open
  • Bore Dia 70 mm
  • Outer Dia 100 mm
  • Width 13 mm
  • R(min) 0.6 mm
  • Shoulder Height Ds(max) 77 mm
  • Shoulder Height Dh(min) 92 mm
  • Holes Without Holes
  • Ring Material Steel
  • Roller Material Steel
  • Basic Load Rating C 19.4 kN
  • Basic Load Rating Co 27.7 kN
  • Lubrication Required
  • Shaft Mount Type Press Fit
  • Temperature Range 0 -230 °F
  • ABEC Rating ABEC5(Available in ABEC7/9)
  • RoHS Compliant
  • REACH Compliant
  • Weight 0.35 Kg

Features

Performance Features of RB7013 Bearing

RB7013 Bearing is designed with a single-row crossed roller construction, ideal for handling combined loads.
Its steel rings and rollers provide a basic load rating of 19.4 kN, ensuring reliable performance.

The open design allows for easy lubrication, maintaining smooth operation in various conditions.
With a temperature range of 0-230°F, RB7013 Bearing performs well in both moderate and high-heat environments.

The press-fit shaft mount simplifies installation, reducing setup time and effort.
Its compact size (70 mm x 100 mm x 13 mm) makes it suitable for applications where space is limited.

Application

Industrial Uses of RB7013 Bearing
RB7013 Bearing is commonly used in machine tools, where its crossed roller design handles combined loads with precision. The open seal type allows for easy lubrication, ensuring long service life in demanding conditions.

Where Is RB7013 Bearing Used?
You’ll find RB7013 Bearing in robotic arms, thanks to its compact size and high load capacity. Its steel construction makes it reliable for repetitive movements in automation systems.

Built for Heavy-Duty Use: RB7013 Bearing
RB7013 Bearing excels in conveyor systems, supporting both radial and axial loads effortlessly. The press fit mounting ensures stable performance even under continuous operation.

Automotive vs Aerospace: Applications of RB7013 Bearing
In automotive steering systems, RB7013 Bearing provides smooth rotation, while its temperature range suits aerospace actuators. The ABEC5 rating offers a balance of precision and cost-effectiveness.

Perfect Fit for Automation: RB7013 Bearing
RB7013 Bearing works well in 3D printers, where its low profile and accuracy matter. The steel rollers maintain consistent performance over countless printing cycles.
