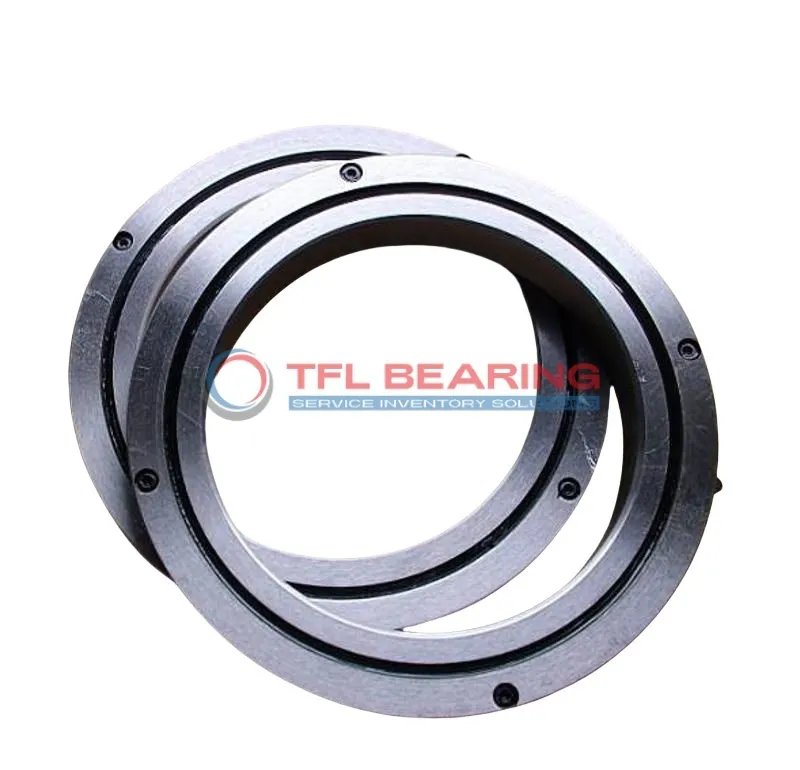

RB Crossed Roller Bearings RB50025

RB Crossed Roller Bearings RB50025

The RB50025 is a crossed roller bearing with a 500mm bore and 550mm outer diameter, designed for combined loads. Its compact 25mm width and steel construction make it sturdy yet space-efficient.

With a basic load rating of 65.5 kN, it handles heavy loads while maintaining smooth rotation. The open design allows easy lubrication, essential for long-term performance.

This bearing suits press-fit mounting and works in temperatures from 0°C to 110°C. Its ABEC5 precision (with optional ABEC7/9) ensures reliable operation in demanding setups.

Ideal for rotary tables or industrial machinery where precision and load capacity matter. Compliant with RoHS and REACH standards, it weighs 7.3kg for easy handling.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number RB50025
  • Brand TFL
  • size 500 mm x 550 mm x 25 mm
  • System of Measurement Metric
  • Bearing Type Roller
  • Roller Bearing Type Crossed
  • For Load Direction Combined
  • Construction Single Row
  • Seal Type Open
  • Bore Dia 500 mm
  • Outer Dia 550 mm
  • Width 25 mm
  • R(min) 1 mm
  • Shoulder Height Ds(max) 514 mm
  • Shoulder Height Dh(min) 534 mm
  • Holes Without Holes
  • Ring Material Steel
  • Roller Material Steel
  • Basic Load Rating C 65.5 kN
  • Basic Load Rating Co 201 kN
  • Lubrication Required
  • Shaft Mount Type Press Fit
  • Temperature Range 0 -230 °F
  • ABEC Rating ABEC5(Available in ABEC7/9)
  • RoHS Compliant
  • REACH Compliant
  • Weight 7.3 Kg

Features

How Does RB50025 Bearing Handle Combined Loads?

RB50025 Bearing features a crossed roller design, providing stability under combined radial and axial loads.
Its steel rings and rollers ensure strength, with a basic load rating of 65.5 kN for dynamic applications.

The press-fit shaft mount simplifies installation, while the open seal design allows easy lubrication.
RB50025 Bearing operates in temperatures from 0 to 230°F, making it versatile for various environments.

With an ABEC5 rating, it offers precision for high-performance machinery.
The compact 25 mm width saves space without compromising load capacity.

Application

Key Fields for RB50025 Bearing
RB50025 Bearing is commonly used in industrial automation, particularly in robotic arms and precision turntables where its crossed roller design provides excellent rigidity. The press-fit mounting ensures stability during high-precision movements.

What Makes RB50025 Bearing a Preferred Choice?
In machine tools, RB50025 Bearing handles combined loads efficiently, making it suitable for rotary tables and indexing heads. Its steel construction offers durability even in demanding workshop environments.

Built for Heavy-Duty Use: RB50025 Bearing
For medical imaging devices, RB50025 Bearing’s high load capacity and smooth rotation are essential for accurate positioning. The open design simplifies lubrication, extending service life in critical applications.

Automotive vs Aerospace: Applications of RB50025 Bearing
In automotive testing rigs, RB50025 Bearing supports dynamic load simulations with reliable performance. Meanwhile, aerospace applications benefit from its precision in satellite antenna positioning systems.

Perfect Fit for Automation: RB50025 Bearing
RB50025 Bearing excels in 3D printing systems, where its low friction and high accuracy ensure consistent layer alignment. The metric dimensions make it compatible with European and Asian machinery standards.
