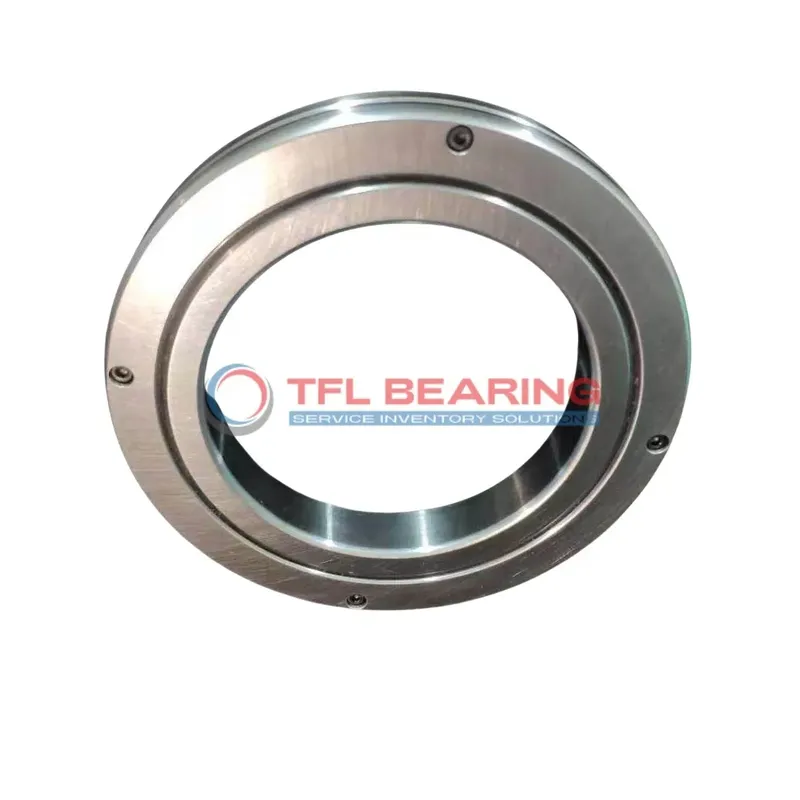

RB Crossed Roller Bearings RB15030

RB Crossed Roller Bearings RB15030

The RB15030 is a crossed roller bearing measuring 150mm by 230mm by 30mm, designed for combined loads. Made from sturdy steel, it offers a basic load rating of 100 kN, suitable for demanding applications.

Its open design allows for easy lubrication, while the press-fit shaft mount ensures a secure installation. The bearing operates well in temperatures ranging from 0°C to 110°C.

With an ABEC5 rating (also available in ABEC7/9), it provides reliable precision for industrial machinery. The single-row construction makes it compact yet robust.

Ideal for use in robotics or precision equipment where combined loads are common. Compliant with RoHS and REACH standards, it weighs 5.3kg for easy handling.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number RB15030
  • Brand TFL
  • size 150 mm x 230 mm x 30 mm
  • System of Measurement Metric
  • Bearing Type Roller
  • Roller Bearing Type Crossed
  • For Load Direction Combined
  • Construction Single Row
  • Seal Type Open
  • Bore Dia 150 mm
  • Outer Dia 230 mm
  • Width 30 mm
  • R(min) 1.5 mm
  • Shoulder Height Ds(max) 169 mm
  • Shoulder Height Dh(min) 211 mm
  • Holes Without Holes
  • Ring Material Steel
  • Roller Material Steel
  • Basic Load Rating C 100 kN
  • Basic Load Rating Co 156 kN
  • Lubrication Required
  • Shaft Mount Type Press Fit
  • Temperature Range 0 -230 °F
  • ABEC Rating ABEC5(Available in ABEC7/9)
  • RoHS Compliant
  • REACH Compliant
  • Weight 5.3 Kg

Features

How Does RB15030 Bearing Handle Combined Loads?

RB15030 Bearing features a crossed roller design, providing stability and precision under combined loads.
Its steel construction ensures durability, with a basic load rating of 100 kN for dynamic applications.

The open seal type allows for easy lubrication, maintaining smooth operation in various conditions.
With a temperature range of 0-230°F, RB15030 Bearing performs reliably in diverse environments.

The press-fit shaft mount simplifies installation, reducing setup time and effort.
ABEC5 precision rating ensures consistent performance, with options for higher precision if needed.

Application

Industrial Uses of RB15030 Bearing
RB15030 Bearing is commonly used in machine tools, where its crossed roller design provides excellent stability for rotary tables and indexing heads.
The press-fit mounting ensures a secure installation, reducing vibration in high-precision applications.

Where Is RB15030 Bearing Used?
You’ll find RB15030 Bearing in robotics, particularly in articulated arms that require smooth, precise movement.
Its steel construction handles combined loads well, making it reliable for repetitive tasks.

Built for Heavy-Duty Use: RB15030 Bearing
RB15030 Bearing suits industrial automation systems, such as CNC machinery, where accuracy and durability are key.
The open design simplifies lubrication, extending service life in demanding environments.

Automotive vs Aerospace: Applications of RB15030 Bearing
In automotive testing rigs, RB15030 Bearing supports dynamic load simulations with consistent performance.
For aerospace applications, its ABEC5 rating ensures precision in navigation equipment and control systems.
