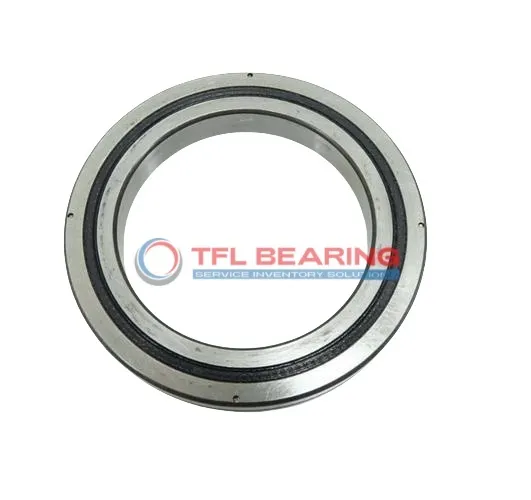

RB Crossed Roller Bearings RB11015UU

RB Crossed Roller Bearings RB11015UU

The RB11015UU is a crossed roller bearing with a 110mm bore and 145mm outer diameter, designed for combined loads. Its compact 15mm width and steel construction make it sturdy yet space-efficient.

This bearing handles loads up to 23.7 kN and features double seals to keep out dirt and debris. It operates smoothly in temperatures from 0°C to 110°C, suitable for various industrial conditions.

With a press-fit shaft mount and ABEC5 precision (also available in higher grades), it offers reliable performance in tight spaces. The crossed roller design ensures stability under combined loads.

Ideal for robotics, machine tools, or precision equipment where accuracy and durability matter. Compliant with RoHS and REACH standards, it weighs just 0.75kg for easy handling. Regular lubrication is recommended for optimal lifespan.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number RB11015UU
  • Brand TFL
  • size 110 mm x 145 mm x 15 mm
  • System of Measurement Metric
  • Bearing Type Roller
  • Roller Bearing Type Crossed
  • For Load Direction Combined
  • Construction Single Row
  • Seal Type Double Seal
  • Bore Dia 110 mm
  • Outer Dia 145 mm
  • Width 15 mm
  • R(min) 0.6 mm
  • Shoulder Height Ds(max) 119 mm
  • Shoulder Height Dh(min) 136 mm
  • Holes Without Holes
  • Ring Material Steel
  • Roller Material Steel
  • Basic Load Rating C 23.7 kN
  • Basic Load Rating Co 41.5 kN
  • Lubrication Required
  • Shaft Mount Type Press Fit
  • Temperature Range 0 -230 °F
  • ABEC Rating ABEC5(Available in ABEC7/9)
  • RoHS Compliant
  • REACH Compliant
  • Weight 0.75 Kg

Features

How Does RB11015UU Bearing Handle Combined Loads?

RB11015UU Bearing features a crossed roller design, making it ideal for handling combined loads with precision.
Its steel rings and rollers provide a basic load rating of 23.7 kN, ensuring reliable performance under stress.
The double-sealed construction keeps contaminants out, extending the bearing’s service life.
With a temperature range of 0-230°F, RB11015UU Bearing performs well in various operating conditions.

Application

Industrial Uses of RB11015UU Bearing
RB11015UU Bearing is commonly used in machine tools, where its crossed roller design provides excellent rigidity and precision for rotary tables. The double seal helps keep contaminants out, ensuring long service life in demanding conditions.

Where Is RB11015UU Bearing Used?
You’ll often find RB11015UU Bearing in robotic arms, thanks to its ability to handle combined loads smoothly. Its press-fit mounting makes installation straightforward, even in tight spaces.

Built for Heavy-Duty Use: RB11015UU Bearing
RB11015UU Bearing works well in packaging machinery, where its steel construction withstands constant movement. The ABEC5 rating ensures reliable performance for most industrial applications.

Automotive vs Aerospace: Applications of RB11015UU Bearing
In automotive testing equipment, RB11015UU Bearing offers precise motion control for accurate measurements. For aerospace applications, its temperature range suits various environmental conditions.

Perfect Fit for Automation: RB11015UU Bearing
RB11015UU Bearing is a solid choice for CNC machines, where its low-profile design saves space without sacrificing load capacity. The required lubrication is minimal, reducing maintenance needs.
