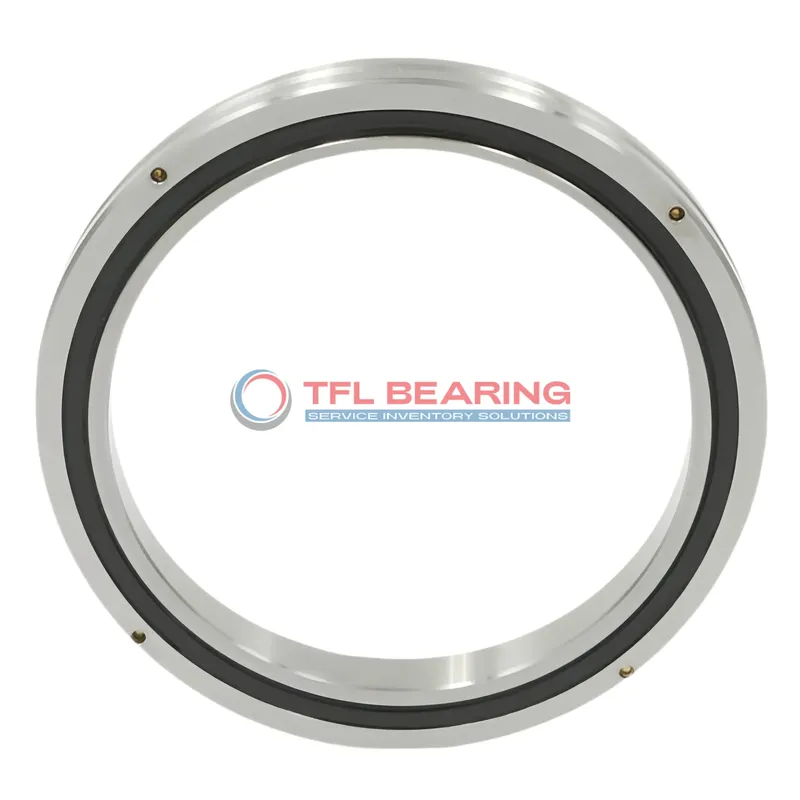

RA Crossed Roller Bearings RA10008C

RA Crossed Roller Bearings RA10008C

The RA10008C is a compact crossed roller bearing measuring 100mm in bore diameter and 116mm in outer diameter, with a slim 8mm width. Made from sturdy steel, it handles combined loads efficiently, with a basic load rating of 7.15 kN.

Its single-row design and open construction allow for easy lubrication, while the press-fit shaft mount ensures a secure installation. The bearing operates smoothly in temperatures ranging from 0°C to 110°C.

With an ABEC5 rating (also available in ABEC7/9), it offers precise performance for demanding applications. Ideal for use in robotics, medical equipment, or precision machinery where space is limited but accuracy is crucial.

Weighing just 0.14kg, it’s lightweight yet robust, and complies with RoHS and REACH standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number RA10008C
  • Brand TFL
  • Size 100 mm x 116 mm x 8 mm
  • Bore Dia 100 mm
  • Outer Dia 116 mm
  • Width 8 mm
  • R(min) 0.5 mm
  • Shoulder Height Ds(max) 103.5 mm
  • Shoulder Height Dh(min) 110.5 mm
  • System of Measurement Metric
  • Bearing Type Roller
  • Roller Bearing Type Crossed
  • For Load Direction Combined
  • Construction Single Row
  • Seal Type Open
  • Holes Without Holes
  • Ring Material Steel
  • Roller Material Steel
  • Basic Load Rating C 7.15 kN
  • Basic Load Rating Co 13.9 kN
  • Lubrication Required
  • Shaft Mount Type Press Fit
  • Temperature Range 0 -230 °F
  • ABEC Rating ABEC5(Available in ABEC7/9)
  • RoHS Compliant
  • REACH Compliant
  • Weight 0.14 Kg

Features

Performance Features of RA10008C Bearing

RA10008C Bearing is designed with a single-row crossed roller construction, ideal for handling combined loads efficiently.
Its steel rings and rollers provide a basic load rating of 7.15 kN, ensuring reliable performance in various applications.
The press-fit shaft mount type simplifies installation, saving time and effort during assembly.
With a temperature range of 0 to 230°F, it performs well in diverse operating conditions.

Application

Industrial Uses of RA10008C Bearing
RA10008C Bearing is commonly used in machine tools, where its crossed roller design provides excellent stability for rotary tables and indexing heads. The compact 8mm width makes it ideal for space-constrained applications.

In robotics, RA10008C Bearing ensures precise movement in articulated arms and joints, thanks to its high ABEC5 rating. The press-fit mounting simplifies installation in automated systems.

For medical imaging devices, RA10008C Bearing’s steel construction offers reliable performance in CT scanners and X-ray equipment. Its ability to handle combined loads makes it versatile for various medical applications.

RA10008C Bearing works well in packaging machinery, supporting smooth operation in high-speed filling and labeling systems. The open design allows for easy relubrication during maintenance cycles.

In semiconductor manufacturing, RA10008C Bearing provides the necessary precision for wafer handling equipment. The 0.5mm chamfer radius helps prevent stress concentration in delicate operations.
