One Way Bearing HFL0615

One Way Bearing HFL0615

The HFL0615 is a compact one-way needle bearing with a 6mm bore and 10mm outer diameter, crafted from sturdy steel. It supports high speeds up to 23000 RPM and handles torque up to 1.76 Nm, making it reliable for demanding tasks.
Its triple-row needle design ensures smooth operation, while the open seal allows for easy lubrication. The press-fit shaft mount provides a secure fit without slipping.
This bearing is ideal for applications like small motors or precision tools where one-directional rotation is needed. It works well in temperatures from -30°C to 110°C.
Weighing just 4g, it’s lightweight yet durable. Compliant with RoHS standards, it’s a safe choice for various industries. Interchangeable with INA bearings for easy replacement.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number HFL0615
  • Brand TFL
  • Interchangeable INA
  • Bore Dia 6 mm
  • Outer Dia 10 mm
  • Width 15 mm
  • System of Measurement Metric
  • Roller Bearing Type Needle
  • Construction Triple Row
  • Knurled No
  • Seal Type Open
  • Series HFL Series
  • Ring Material Steel
  • Cage Material Steel
  • Needle Material Steel
  • Spring Material Steel
  • Max Speed 23000 rpm
  • Torque Capacity 1.76 Nm
  • Lubrication Lubricated
  • Shaft Mount Type Press Fit
  • Temperature Range -30° to 110 °C
  • RoHS Compliant
  • Weight 4 g

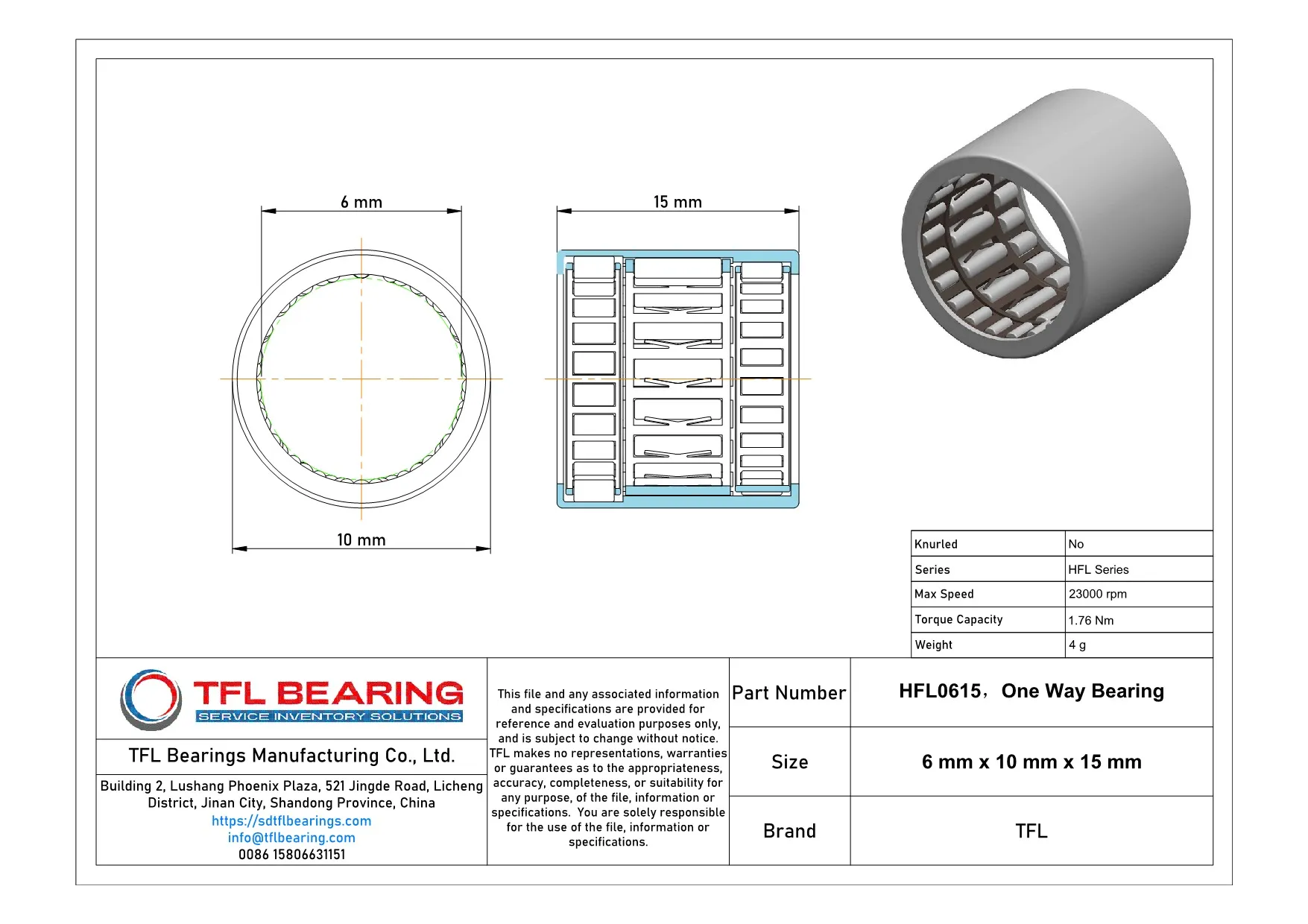

One Way Bearing HFL0615 dimension drawing
Download DWG Download PDF

Features

How Does HFL0615 Bearing Achieve High-Speed Performance?
HFL0615 Bearing is built with a triple-row needle design, ensuring stability and efficiency at high speeds.
Its steel construction provides durability, while the press-fit shaft mount enhances secure installation.
With a maximum speed of 23,000 rpm, HFL0615 Bearing excels in demanding applications.
The lubricated design reduces friction, contributing to smooth and reliable operation.
HFL0615 Bearing operates effectively within a temperature range of -30° to 110°C.
Its compact size and lightweight design make it suitable for precision machinery.

Application

Key Fields for HFL0615 Bearing
HFL0615 Bearing is commonly used in industrial automation, particularly in conveyor systems where its one-way rotation feature ensures smooth material handling. The triple-row needle design provides reliable performance under moderate loads.
In automotive applications, HFL0615 Bearing fits well in gearbox mechanisms, offering precise control for clutch assemblies. Its compact metric size makes it suitable for space-constrained designs in modern vehicles.
For small robotics, HFL0615 Bearing’s high-speed capability (up to 23000 rpm) supports precise movements in robotic arms. The press-fit mounting simplifies installation in tight assemblies.
Household appliances like electric fans benefit from HFL0615 Bearing’s low-maintenance design. The lubricated steel construction ensures quiet operation over long periods.
