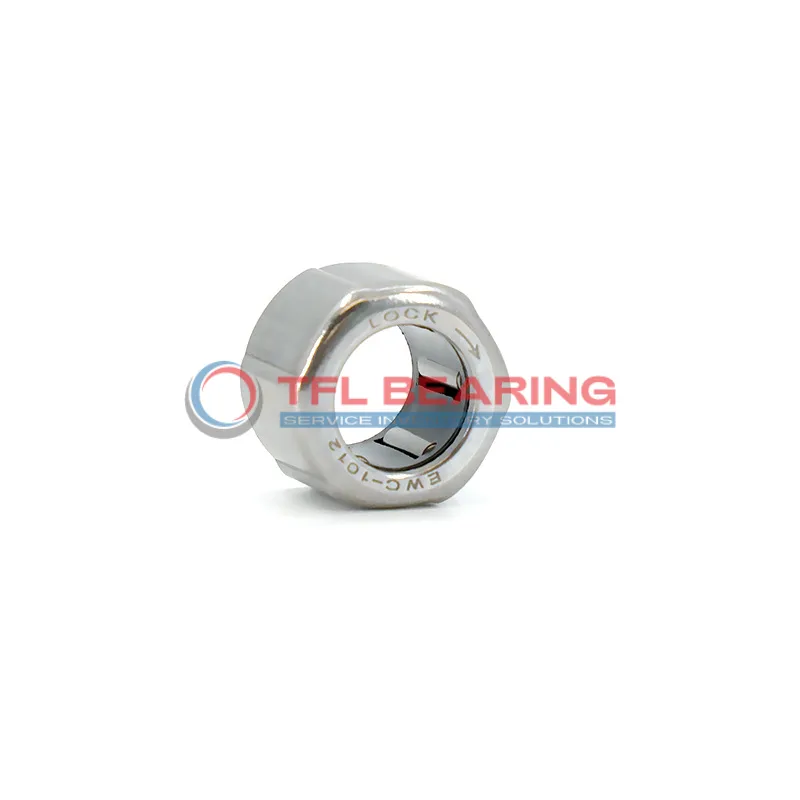

One Way Bearing EWC1012A

One Way Bearing EWC1012A

The EWC1012A is a one-way needle bearing with a 10mm bore and 16mm outer diameter, crafted from sturdy steel for reliable performance. Its compact design, just 17mm wide, makes it suitable for tight spaces.
This bearing handles a torque capacity of 1.37 Nm and operates smoothly in temperatures from -30°C to 110°C. The open seal allows easy lubrication, while the press-fit shaft mount ensures secure installation.
Ideal for applications like conveyor systems or small machinery where one-directional movement is needed. Weighing only 6.8g, it’s lightweight yet durable. Compliant with RoHS standards for safe use.
Interchangeable with INA bearings, it’s a practical choice for replacements or upgrades. The steel construction and plastic spring provide a balance of strength and flexibility.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number EWC1012A
  • Brand TFL
  • Interchangeable INA
  • Bore Dia 10 mm
  • Outer Dia 16 mm
  • Width 17 mm
  • System of Measurement Metric
  • Roller Bearing Type Needle
  • Construction Single Row
  • Seal Type Open
  • Series EWC Series
  • Ring Material Steel
  • Cage Material Steel
  • Needle Material Steel
  • Spring Material Plastic
  • Torque Capacity 1.37 Nm
  • Lubrication Lubricated
  • Shaft Mount Type Press Fit
  • Temperature Range -30° to 110 °C
  • RoHS Compliant
  • Weight 6.8 g

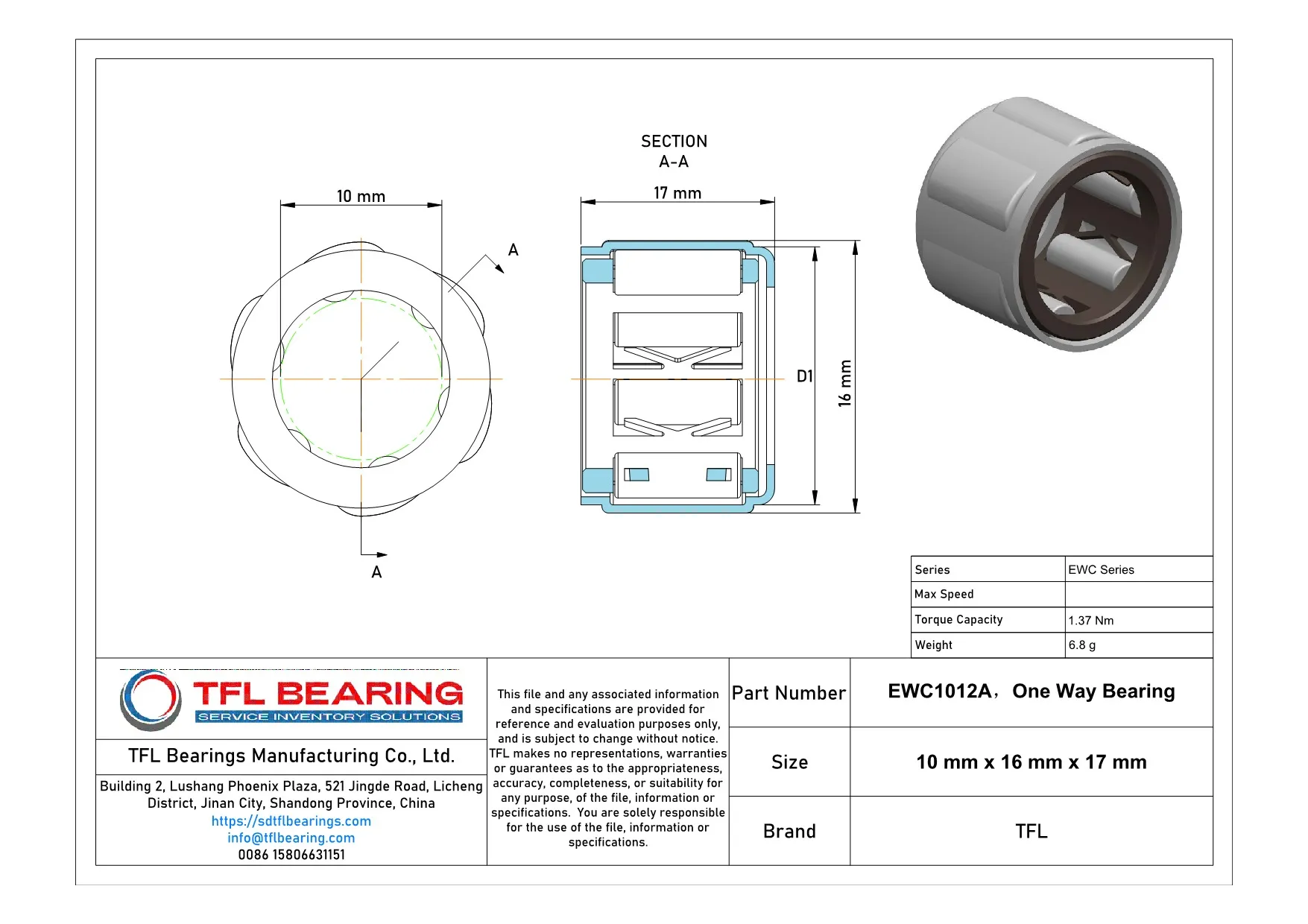

One Way Bearing EWC1012A dimension drawing
Download DWG Download PDF

Features

Why Choose EWC1012A Bearing for Precision Tasks?
EWC1012A Bearing features a steel construction, ensuring durability and reliable performance in precision applications.
Its needle roller design provides efficient torque transmission, with a capacity of 1.37 Nm.
The press-fit shaft mount simplifies installation, saving time and effort.
With a temperature range of -30° to 110°C, it performs well in various conditions.

Application

Common Applications of EWC1012A Bearing
EWC1012A Bearing is widely used in industrial machinery, especially in conveyor systems where one-way rotation is needed. Its press-fit design ensures a secure mounting, reducing slippage during operation.
In automotive applications, EWC1012A Bearing is often found in gearboxes and starter motors, providing reliable one-directional movement. The steel construction offers durability under high torque conditions.
For automation equipment, EWC1012A Bearing supports smooth operation in robotic arms and assembly lines. Its compact size and lightweight design make it ideal for space-constrained setups.
In consumer electronics, EWC1012A Bearing can be used in printers and small appliances where precise one-way motion is required. The lubricated design ensures quiet and efficient performance.
