One Way Bearing EWC0809C

Brand: TFL Bearing Interchangeable: INA EWC0809C 8 mm × 12 mm × 9 mm Metric Open
Part number: EWC0809C
One Way Bearing EWC0809C
In Stock
Price on request
Send your part number and quantity for a quote
Get a Quote WhatsApp
  • ISO 9001 quality system
  • RoHS & REACH compliant
  • Pre-shipment inspection
  • Lead time confirmed with your quote
Dimensions
Bore Dia8 mm
Outer Dia12 mm
Width9 mm
Performance
Torque Capacity0.88 Nm
Temperature Range-30° to 110 °C
Characteristics
System of MeasurementMetric
Roller Bearing TypeNeedle
ConstructionSingle Row
Seal TypeOpen
SeriesEWC Series
LubricationLubricated
Shaft Mount TypePress Fit
Weight2.4 g
Material
Ring MaterialSteel
Cage MaterialSteel
Needle MaterialSteel
Spring MaterialPlastic
Compliance
RoHSCompliant

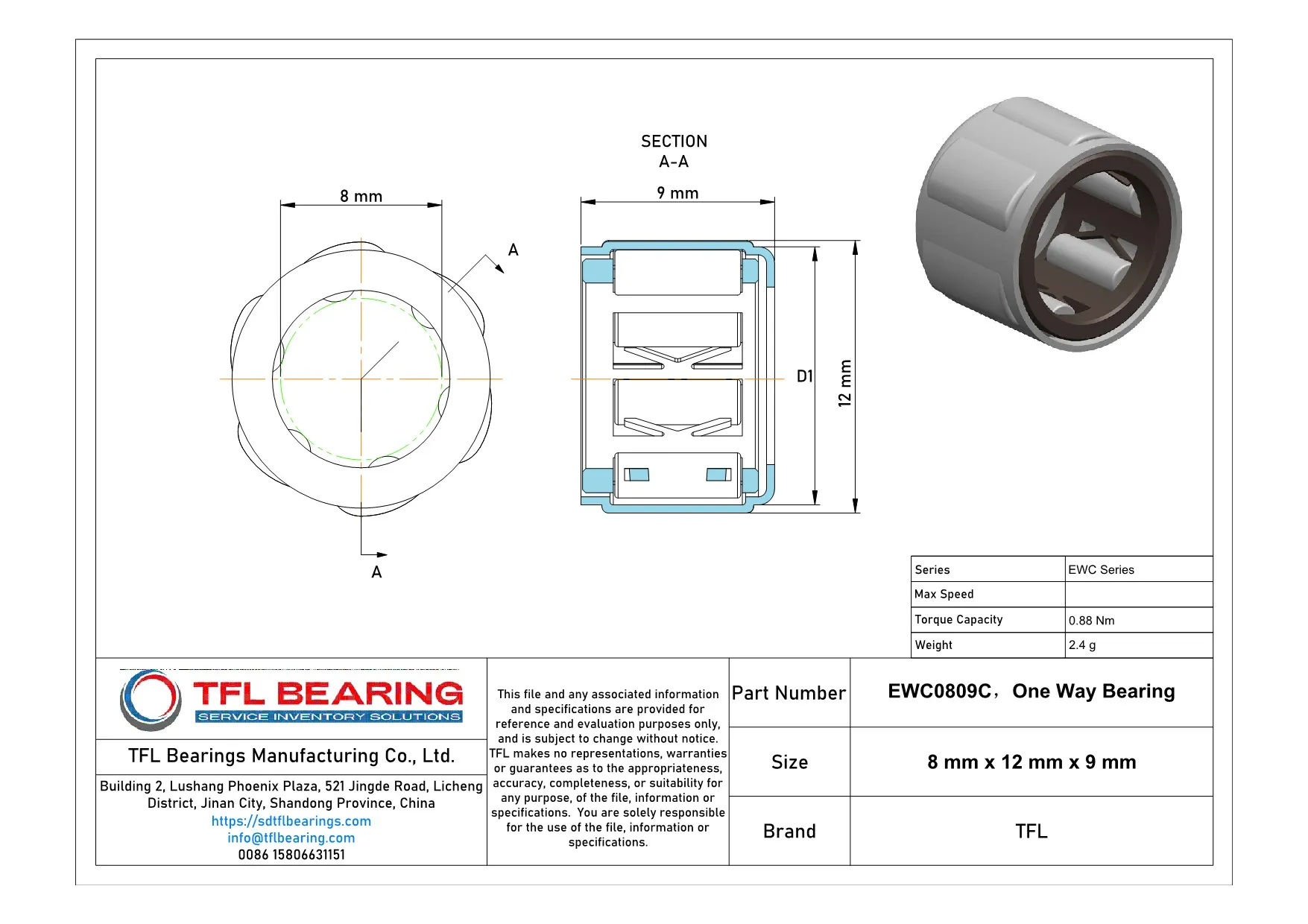

Dimension drawing · click to enlarge

Description

The EWC0809C is a compact one-way needle bearing with an 8mm bore and 12mm outer diameter, crafted from sturdy steel. Its lightweight design weighs just 2.4g, making it easy to handle and install.
This bearing supports a torque capacity of 0.88 Nm and operates smoothly in temperatures ranging from -30°C to 110°C. The open seal design allows for simple lubrication, ensuring long-lasting performance.
Its press-fit shaft mount provides a secure hold, while the plastic spring ensures smooth engagement. The bearing is interchangeable with INA models, offering a reliable replacement option.
Ideal for applications like small motors or machinery where one-directional rotation is needed. Compliant with RoHS standards for safe and eco-friendly use.

Features

Why Choose EWC0809C Bearing for Precision Tasks?
EWC0809C Bearing features a steel construction, ensuring durability and reliable performance in precision applications.
Its press-fit shaft mount design simplifies installation, saving time and effort.
The lubricated needle rollers reduce friction, providing smooth operation even under torque loads up to 0.88 Nm.
With a temperature range of -30° to 110°C, it performs well in various environments.

Application

Where Is EWC0809C Bearing Used?
EWC0809C Bearing is commonly used in industrial equipment like conveyor systems, where its one-way rotation feature ensures smooth operation. The press-fit design makes installation straightforward, saving time during assembly.
In automotive applications, EWC0809C Bearing fits well in gearboxes and starter motors, providing reliable torque transmission. Its steel construction handles high loads without compromising performance.
For automation projects, EWC0809C Bearing works efficiently in robotic arms, offering precise movement control. The lubricated design reduces friction, extending the bearing’s lifespan in continuous-use scenarios.
In consumer electronics, EWC0809C Bearing can be found in printers and small appliances, where its compact size and lightweight are advantageous. The open seal allows for easy maintenance, keeping devices running smoothly.
