One Way Bearing 1WC1216

One Way Bearing 1WC1216

The 1WC1216 is a one-way needle bearing with a 12mm bore and 18mm outer diameter, crafted from sturdy steel for reliable performance. It supports a torque capacity of 6.28 Nm and operates smoothly in temperatures from -30°C to 110°C.
Its open design and press-fit shaft mount make installation straightforward, while the steel cage and needles ensure durability. The bearing comes pre-lubricated for immediate use.
This model is interchangeable with INA bearings, offering a practical replacement option. It’s well-suited for applications like conveyor systems or machinery where one-directional movement is needed.
Weighing just 12g, it’s lightweight yet robust. Compliant with RoHS standards, it’s safe for various industrial uses.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 1WC1216
  • Brand TFL
  • Interchangeable INA
  • Bore Dia 12 mm
  • Outer Dia 18 mm
  • Width 16 mm
  • System of Measurement Metric
  • Roller Bearing Type Needle
  • Construction Single Row
  • Seal Type Open
  • Series 1WC Series
  • Ring Material Steel
  • Cage Material Steel
  • Needle Material Steel
  • Spring Material Steel
  • Torque Capacity 6.28 Nm
  • Lubrication Lubricated
  • Shaft Mount Type Press Fit
  • Temperature Range -30° to 110 °C
  • RoHS Compliant
  • Weight 12 g

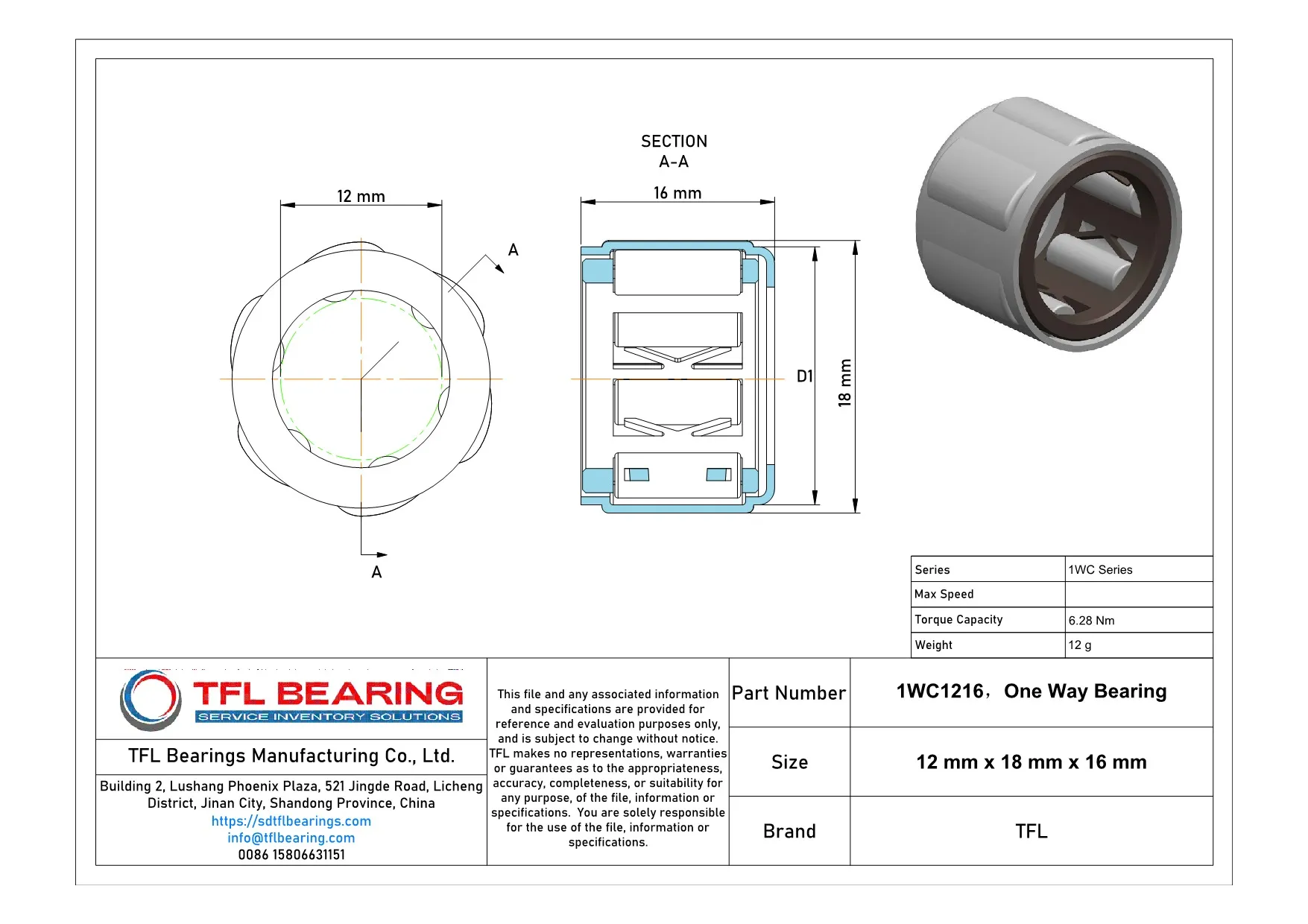

One Way Bearing 1WC1216 dimension drawing
Download DWG Download PDF

Features

How Does 1WC1216 Bearing Ensure Smooth Operation?
1WC1216 Bearing features a steel construction, providing durability and reliable performance in one-way rotation applications.
Its press-fit shaft mount design ensures secure installation, reducing the risk of slippage during operation.
The needle roller design of 1WC1216 Bearing minimises friction, allowing for smooth and efficient movement.
With a torque capacity of 6.28 Nm, it handles moderate loads effectively while maintaining precision.
1WC1216 Bearing operates within a temperature range of -30° to 110°C, making it suitable for various environments.
Its open seal type simplifies maintenance, ensuring long-term usability with minimal effort.

Application

Common Applications of 1WC1216 Bearing
1WC1216 Bearing is widely used in industrial machinery, especially in conveyor systems where one-way rotation is needed. Its press-fit design ensures a secure attachment, reducing slippage during operation.
In automotive applications, 1WC1216 Bearing is often found in gearboxes and starter motors, providing reliable one-directional movement. The steel construction offers durability under high torque conditions.
For automation equipment, 1WC1216 Bearing works well in robotic arms and indexing tables. Its compact size and smooth operation make it suitable for precision tasks.
In consumer electronics like printers, 1WC1216 Bearing helps control paper feed mechanisms. The lubricated design ensures quiet and efficient performance over time.
