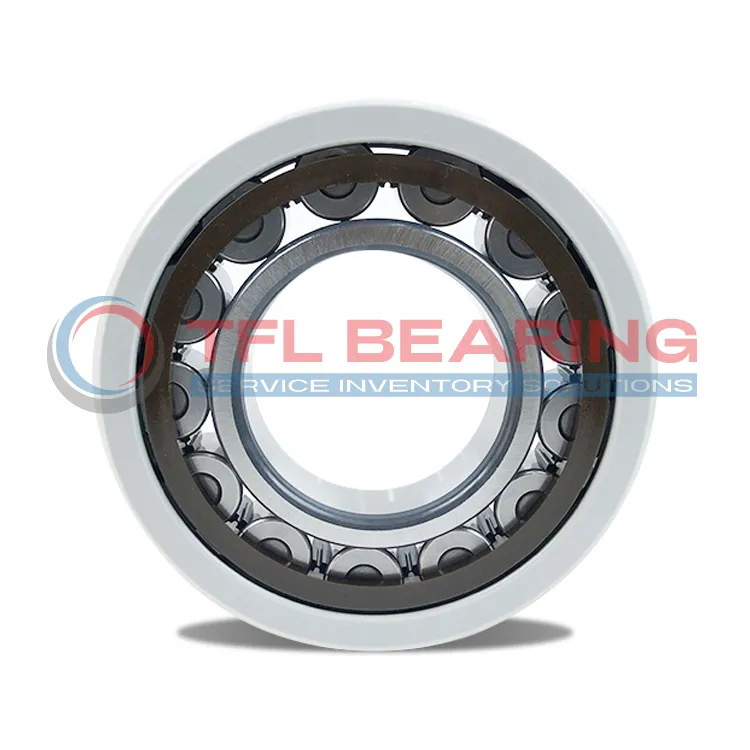

NKE Electrically Insulated Single Row Cylindrical Roller Bearing NU213-E-TVP3-SQ77

NKE Electrically Insulated Single Row Cylindrical Roller Bearing NU213-E-TVP3-SQ77

The NU213-E-TVP3-SQ77 is an electrically insulated cylindrical roller bearing with a 65mm bore and 120mm outer diameter, designed to prevent electrical currents from damaging machinery. Its outer ring features a special coating (SQ77) with a breakdown voltage of 1000-3000V, ideal for high-voltage environments.

This bearing handles dynamic loads up to 122kN and spins smoothly at speeds up to 6300 RPM. The polymer cage reduces friction and wear, while the normal radial clearance ensures reliable performance under typical operating conditions.

The insulation layer is over 0.125mm thick, providing electrical resistance above 2000 MΩ. It’s compliant with RoHS and REACH standards, making it safe for industrial use.

Weighing 1.05kg, it’s a sturdy choice for electric motors, generators, or wind turbines where electrical insulation is crucial. The design also allows for easy replacement in existing systems.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Model NU213-E-TVP3-SQ77
  • Product Category Electrically Insulated Single Row Cylindrical Roller Bearing
  • Insulating Coating Types Insulation coating on outer ring
  • Coating Suffix SQ77
  • Manufacturers NKE
  • Bore Diameter 65.0 mm
  • Outside Diameter 120.0 mm
  • Width 23.0 mm
  • Net Weight 1.05 kg
  • Basic Dynamic Load Rating 122 kN
  • Basic Static Load Rating 118 kN
  • Reference Speed 6300 r/min
  • Breakdown Voltage (DC) 1000 ~3000 V
  • Layer Thickness > 0.125 mm
  • Electrical Resistance > 2,000 MΩ
  • Cage Material Polymer cage
  • Radial Internal Clearance Normal Clearance (Cn)
  • ROHS Compliant
  • REACH Compliant

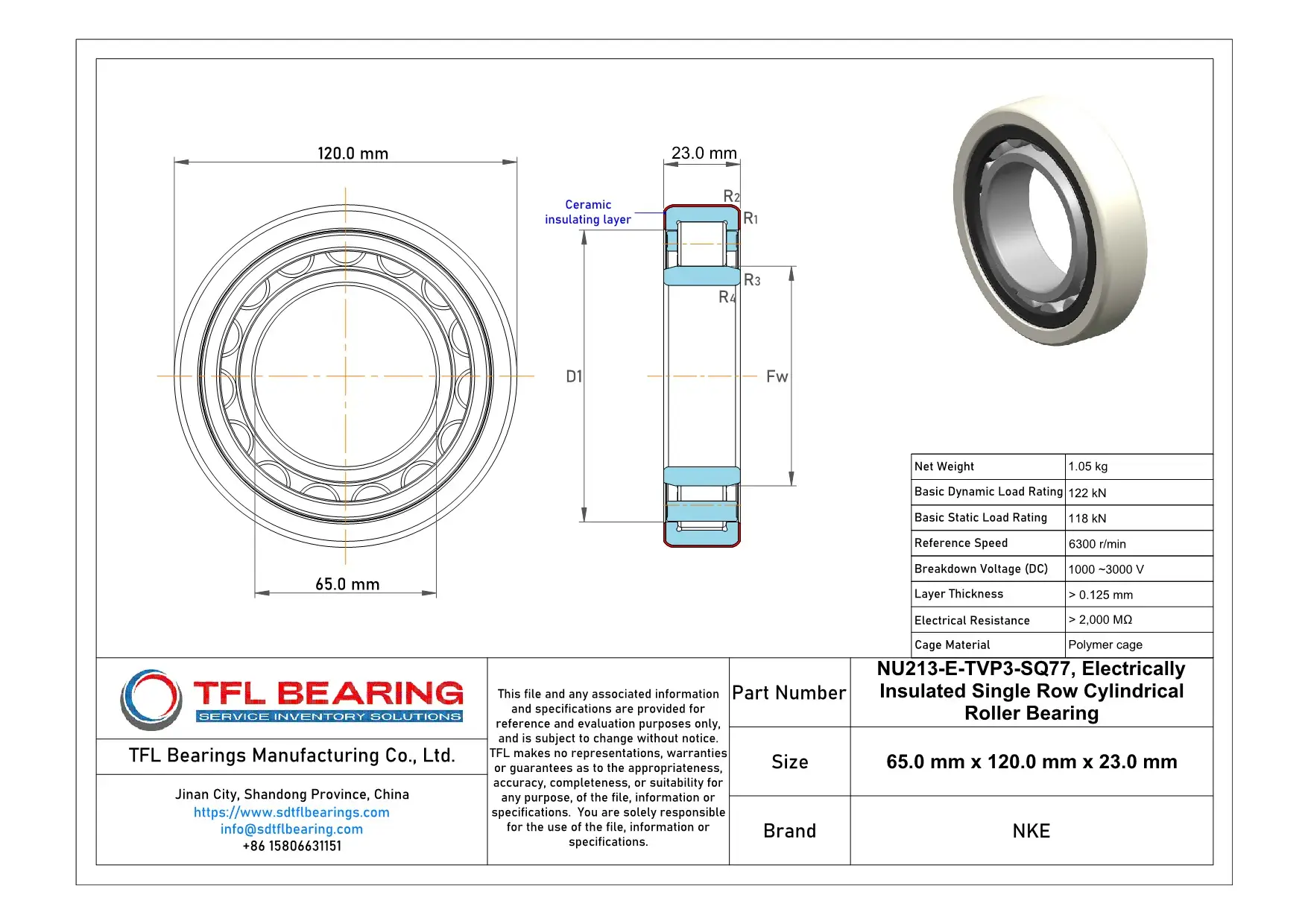

NKE Electrically Insulated Single Row Cylindrical Roller Bearing NU213-E-TVP3-SQ77 dimension drawing
Download DWG Download PDF

Features

How Does NU213-E-TVP3-SQ77 Bearing Prevent Electrical Damage?

NU213-E-TVP3-SQ77 Bearing features an insulation coating on the outer ring, protecting against electrical currents up to 3000 V.
This design ensures reliable operation in environments with electrical interference, reducing the risk of damage.

The polymer cage in NU213-E-TVP3-SQ77 Bearing enhances durability while maintaining smooth performance under high speeds.
With a dynamic load rating of 122 kN, it handles heavy radial loads efficiently.

NU213-E-TVP3-SQ77 Bearing’s coating thickness exceeds 0.125 mm, providing consistent insulation over time.
Its electrical resistance of over 2000 MΩ ensures long-term protection against current leakage.

The normal radial clearance in NU213-E-TVP3-SQ77 Bearing allows for optimal performance in various applications.
Its reference speed of 6300 r/min makes it suitable for high-speed machinery.

Application

Industrial Uses of NU213-E-TVP3-SQ77 Bearing
NU213-E-TVP3-SQ77 Bearing is commonly used in electric motors and generators, where its electrically insulated coating prevents current passage and reduces damage from stray currents. The polymer cage ensures smooth operation even in high-speed environments.

What Makes NU213-E-TVP3-SQ77 Bearing a Preferred Choice?
In wind turbines, NU213-E-TVP3-SQ77 Bearing handles heavy radial loads while its insulation protects against electrical erosion. The normal radial clearance makes it suitable for varying thermal conditions.

Perfect Fit for Automation: NU213-E-TVP3-SQ77 Bearing
NU213-E-TVP3-SQ77 Bearing works well in robotic arms and CNC machines, offering reliable performance under continuous operation. Its high breakdown voltage ensures safety in electrically noisy environments.

Medical vs Industrial: Where NU213-E-TVP3-SQ77 Bearing Excels
NU213-E-TVP3-SQ77 Bearing is ideal for medical imaging devices, where electrical insulation is critical. In industrial settings, it’s often found in conveyor systems due to its durability and load capacity.
