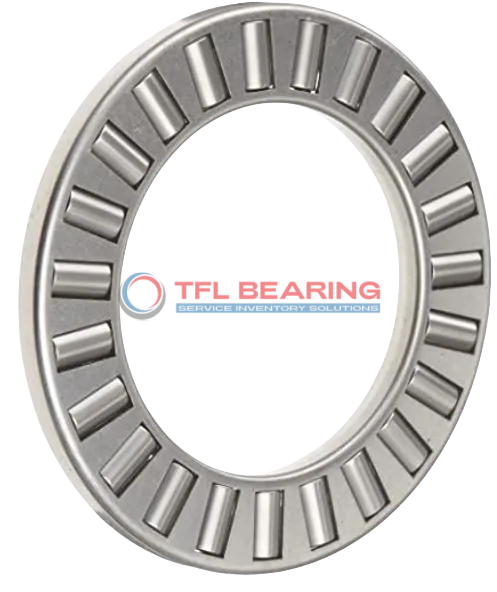

Needle Roller Thrust Bearings (Cages) TC815

Needle Roller Thrust Bearings (Cages) TC815

The TC815 is a needle roller thrust bearing with a 0.5″ bore and 0.938″ outer diameter, designed for thrust loads. Made from sturdy steel, it handles dynamic loads up to 1912 lbf and static loads up to 5310 lbf.
It spins smoothly at speeds up to 15800 RPM, making it suitable for high-speed applications. The steel cage ensures durability, while the needle rollers provide efficient load distribution.
This bearing requires regular lubrication to maintain performance. It operates well in temperatures ranging from -30°C to 110°C, making it versatile for various environments.
Ideal for use in gearboxes, automotive components, or industrial machinery where space is limited. Compliant with RoHS standards, it’s a reliable choice for replacements, especially as it’s interchangeable with INA bearings.
Weighing just 0.078″ in width, it’s compact yet robust for its size. The ABEC-1 rating ensures decent precision for general applications.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number TC815
  • Brand TFL
  • Interchangeable INA
  • Bore Dia 0.5"
  • Bore Dia Tolerance 0.032mm to 0.142mm
  • Outer Dia 0.938"
  • Outer Dia Tolerance -0.320mm to -0.110mm
  • Width 0.078"
  • System of Measurement Inch
  • Roller Bearing Type Needle
  • Type Cages
  • For Load Direction Thrust
  • Series AXK&TC
  • Cage Material Steel
  • Needle Material Steel
  • Dynamic Thrust Load 1912 lbf
  • Static Thrust Load 5310 lbf
  • Max Speed 15800 rpm
  • Lubrication Required
  • Temperature Range -30° to 110 °C
  • ABEC Rating ABEC-1
  • RoHS Compliant

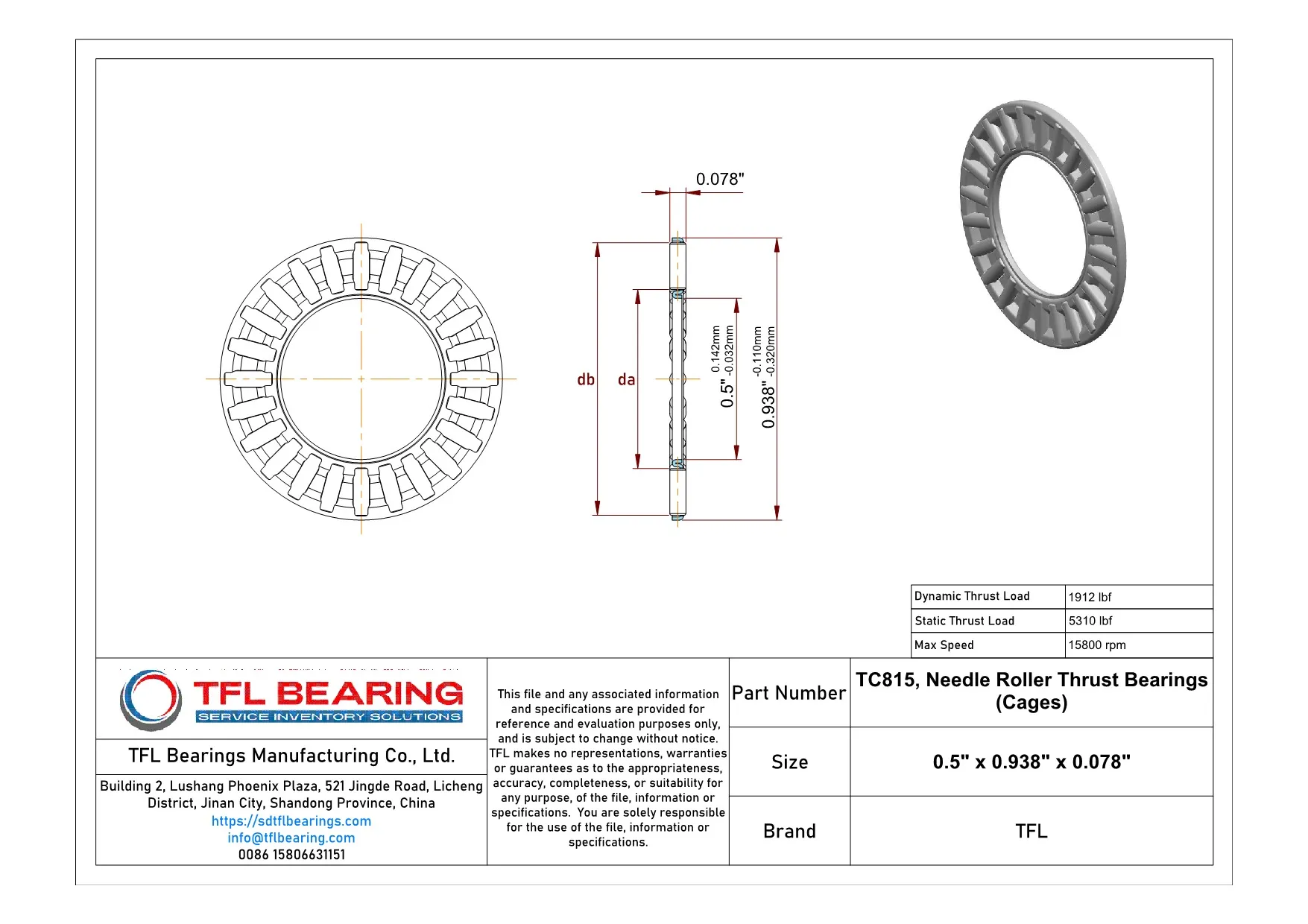

Needle Roller Thrust Bearings (Cages) TC815 dimension drawing
Download DWG Download PDF

Features

How Does TC815 Bearing Handle High-Speed Applications?
TC815 Bearing is built with steel cages and needles, offering robust performance in high-speed thrust applications.
Its dynamic thrust load capacity of 1912 lbf ensures reliable operation under demanding conditions.
The bearing supports speeds up to 15,800 rpm, making it suitable for fast-moving machinery.
With a temperature range of -30° to 110°C, TC815 Bearing performs well in varied environments.

Application

Where Is TC815 Bearing Used?
TC815 Bearing is commonly seen in industrial settings, especially in machinery that handles high thrust loads, like printing presses and textile equipment. Its steel cage and needle rollers provide stability and durability in these demanding environments.
In automotive applications, TC815 Bearing works well in gearboxes and clutch mechanisms, where its inch sizing fits seamlessly into many American and Asian vehicle designs. The required lubrication ensures smooth performance even under continuous use.
For automation systems, TC815 Bearing supports robotic arms and conveyor belts, thanks to its ability to handle rapid movements. The ABEC-1 rating makes it a reliable choice for precision tasks without unnecessary complexity.
You might also find TC815 Bearing in household appliances like washing machines, where its compact design and thrust load capacity help maintain quiet operation. The temperature range ensures it performs reliably in various climates.
