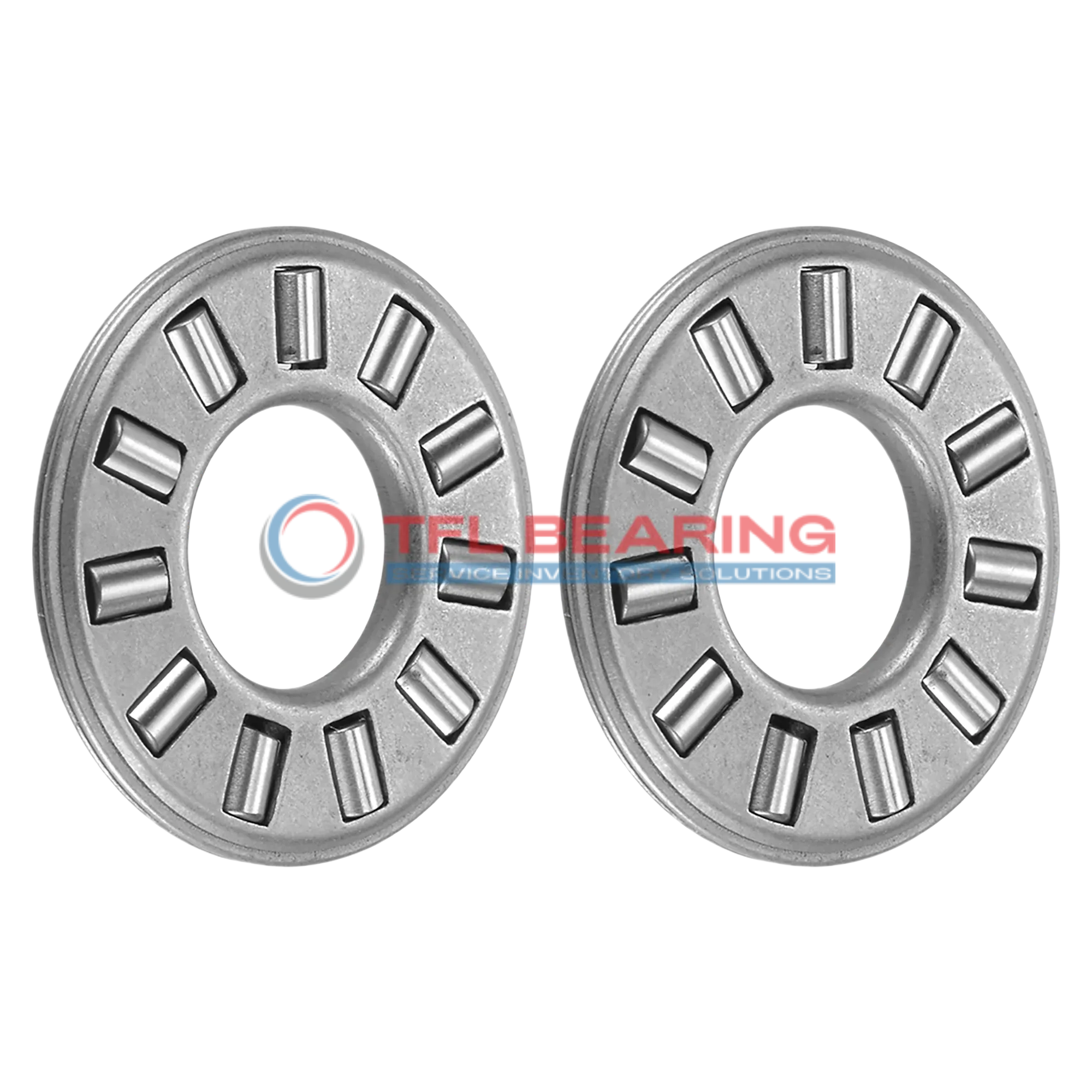

Needle Roller Thrust Bearings (Cages) TC4052

Needle Roller Thrust Bearings (Cages) TC4052

The TC4052 is a needle roller thrust bearing with a 2.5″ bore and 3.25″ outer diameter, designed for thrust loads. Made from sturdy steel, it handles dynamic loads up to 6188 lbf and static loads up to 37800 lbf.
Its cage design ensures smooth operation at speeds up to 4000 RPM, while requiring regular lubrication for optimal performance. The bearing works reliably in temperatures ranging from -30°C to 110°C.
This model is interchangeable with INA bearings, making it a practical choice for replacements. Ideal for applications like gearboxes or heavy machinery where high thrust loads are common.
Compliant with RoHS standards, it’s a durable and safe option for industrial use. The ABEC-1 rating ensures decent precision for most general-purpose applications.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number TC4052
  • Brand TFL
  • Interchangeable INA
  • Bore Dia 2.5"
  • Bore Dia Tolerance 0.06mm to 0.250mm
  • Outer Dia 3.25"
  • Outer Dia Tolerance -0.520mm to -0.170mm
  • Width 0.078"
  • System of Measurement Inch
  • Roller Bearing Type Needle
  • Type Cages
  • For Load Direction Thrust
  • Series AXK&TC
  • Cage Material Steel
  • Needle Material Steel
  • Dynamic Thrust Load 6188 lbf
  • Static Thrust Load 37800 lbf
  • Max Speed 4000 rpm
  • Lubrication Required
  • Temperature Range -30° to 110 °C
  • ABEC Rating ABEC-1
  • RoHS Compliant
Needle Roller Thrust Bearings (Cages) TC4052 dimension drawing
Download DWG Download PDF

Features

How Does TC4052 Bearing Handle Heavy Thrust Loads?
TC4052 Bearing is built with steel cages and needles, offering strong resistance to high thrust loads.
Its dynamic thrust load capacity reaches 6188 lbf, making it suitable for demanding industrial applications.
The steel construction ensures durability and reliable performance even under continuous use.
With a maximum speed of 4000 rpm, it balances efficiency and load-bearing capability.

Application

Key Fields for TC4052 Bearing
TC4052 Bearing is commonly used in industrial gearboxes, where its high thrust load capacity handles heavy axial forces efficiently. The steel cage and needles provide durability in demanding environments like conveyor systems.

In automotive applications, TC4052 Bearing fits well in clutch assemblies and transmission systems, ensuring smooth operation under high-speed conditions. Its inch sizing makes it compatible with many North American vehicle designs.

For automation equipment, TC4052 Bearing supports linear motion systems in robotic arms, where precision and reliability are key. The required lubrication ensures consistent performance over long operational periods.

In medical devices like surgical tools, TC4052 Bearing’s steel construction offers stability for precise movements. The ABEC-1 rating balances cost and performance for mid-range accuracy needs.
